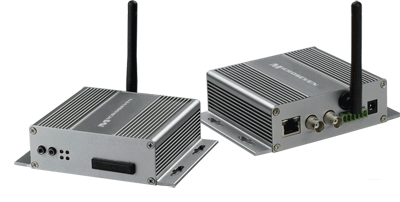

M7 digital encoder and server 1 port (D1) Wi-Fi & Ethernet / M7-DVS1PWS

• Dual core CPU processor for H.264
• H.264 video D-1 resolution is 720 x 486 for NTSC systems and 720 x 576 for PAL systems
• Maximum frame rate is 30 fps for NTSC and 25 fps for PAL
• With PTZ control
• Network bit stream rate is 100Kbps - 3Mbps
• Microseven software lifetime updates
• Provide www.microseven.com for customers online monitoring camera live around the world
• LIVE still images are available when Microseven network cameras are online over the internet. This feature is working for all the browsers and different operating systems without installation of any software. The internet web browsers are included in IE, Firefox, Safari, Netscape, Google web browser and other mobile phone device and home automation device such as HAI. And operating systems may be included Microsoft Windows, MAC OS X and Linux, Solaris and etc.
• Camera built-in web server enables video LIVE anywhere over the internet;
• SD card drive is for (SDHC) SD card and maximum recording video streaming data up to 100 hours with 8 GB.
• Wi-Fi 802.11 G with WEP and WPA encryptions
• Provide Internet connection both Ethernet RJ45 and Wireless 802.11 G
• Motion detection alerts with 12x16 detecting areas & 9 level sensitivities, once motion alerts triggered, captured images will be sent to FTP or Email address, support Google Gmail and at same moment motion alerts will trigger camera to record video data on data storage media
• TCP/IP and RTSP protocol;
• Dual-streams available to set recording video data ratio and remote video transmit ratio on demand.
• Two ways audio
• Support multiple monitors on one PC for full screen.

Overview

M7-DVS1PWS 1CH network digital video server is a digital product based on network transmission, which adopts embedded real-time multi-tasking operating systems (RTOS) and embedded CPU processor, and with the function of video signal and audio signal synchronization compression.

The compressed data is transmitted by network to realize real-time video and audio preview. The system can be scheduled efficiently. Code solidify in FLASH enables more stable and reliable system operation.

The excellent H.264 algorithm ensures less data redundancy, which is more suitable for network transmission, provide RS-485 interface and alarm input and output interfaces.

Main Parts

1. Components

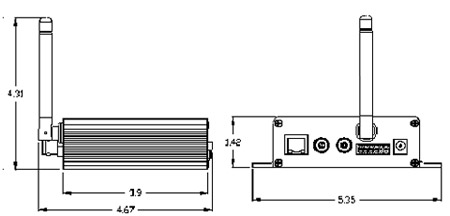

2. Appearance

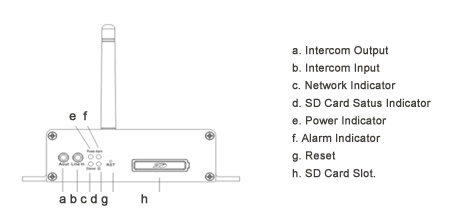

3. Front Parts

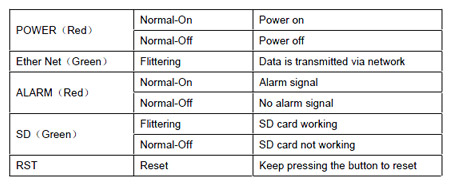

   Indicator Status


Notes

1. The video is designed for indoor application, and is not water-proof, damp-proof and lightening-proof;
2. Keep away from the high-temperature objects and places
3. Do not share the same power supply wire or socket with the high-power electronic appliances.
4. Do not install or dismantle camera cables before the power is cut off.
5. Do not open the box without the presence of professional personnel, and please contact qualified ones if any malfunction happens.
6. Make sure the camera works under the specified voltage to avoid the damage because of non-matching voltage.
7. Please disconnect the power adapter if the camera is kept for non-using for a long time.

Setup & Application

1. SD Card Installation

   SD Card Instandard

   1. dimension (32*24*21mm standard)
   2. 512M, 1G, 2G, 4G;
   3. No less than 6 MB/S for read-write speed

   The installation of the SD card is as follows:

   Do according to the card, first open the SD card cover (from the right side), and insert the card.

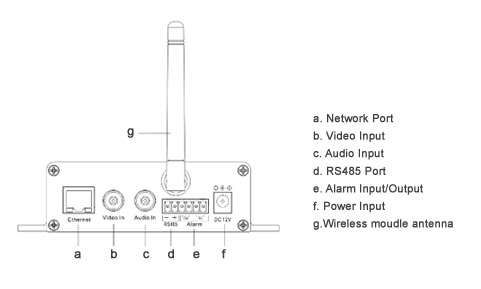

2. Rear Parts

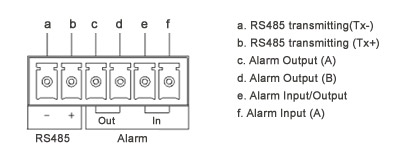

3. Alarm Port and RS485 Port

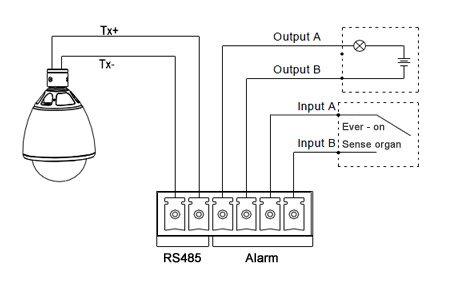

   Alarm input/output and RS485 port definition


   Note: Both the alarm input and output are I/O, A and B are the 2 ends of the I/O.


Camera Installation

1. Checking product and accessories
2. Install the devices accordingly
3. Connect to network by RJ45 port
4. Connect video source to video input port
5. Connect audio source with audio input
6. Connect dome camera or PTZ To RS-485 port
7. Connect alarm device to alarm port

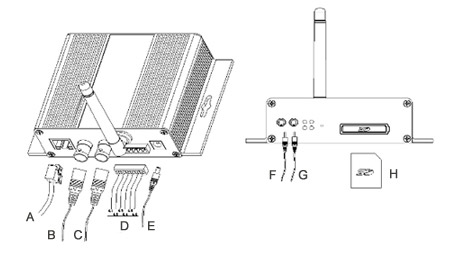

Port Connection

1. Insert the crystal connector;
2. Connect analog video source with BNC port;
3. Connect audio receiver with BNC audio input port;
4. RS485 and 6 Pin alarm IO, RS485 can connect PTZ camera or dome camera. Connect alarm sense organ with alarm port, alarm output cam control one assistant device;
5. Connect the power of DC 12V / 2A;
6. Audio output can connect speaker;
7. Line-in port for microphone and transmitter;
8. Insert SD Card to the slot.
