New Human & Vehicle Detection among moving objects.

Note:  This is POE PTZ CAMERA! Not WiFi Camera!



5MP Camera Auto Tracking from microseven on Vimeo.

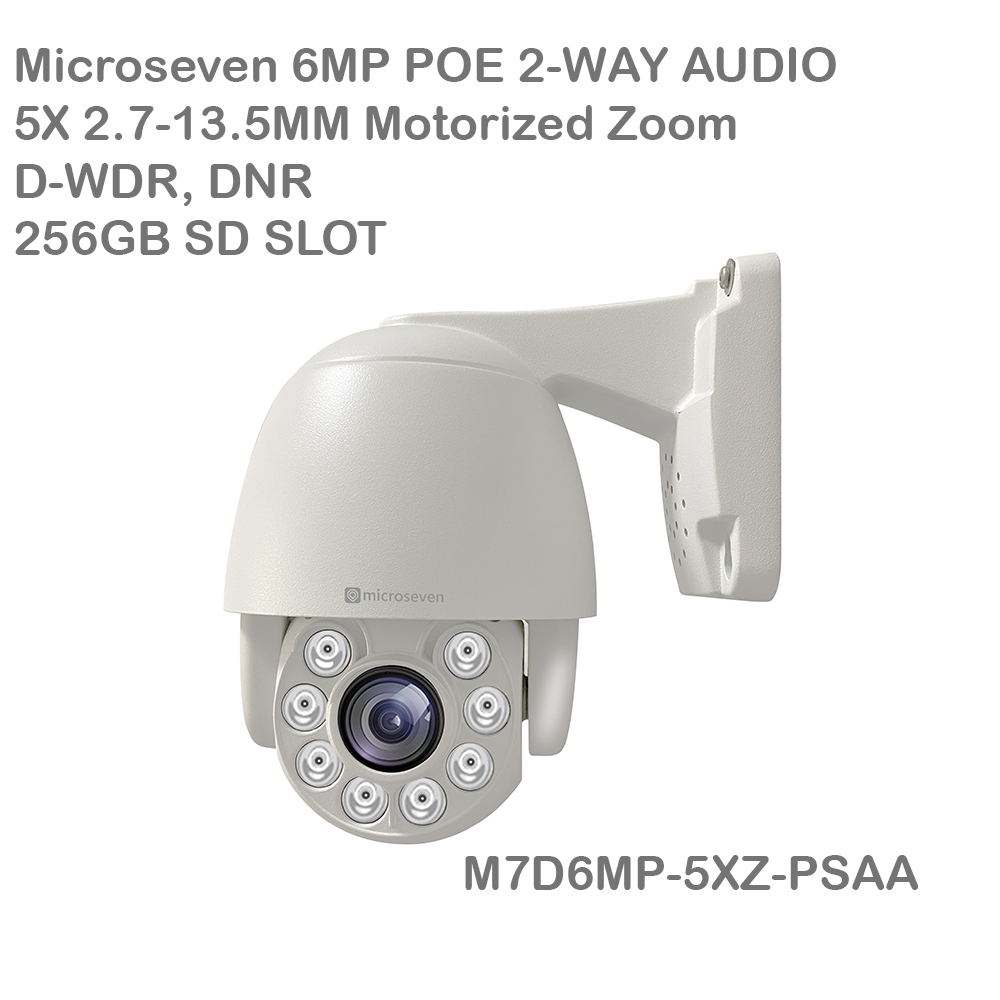

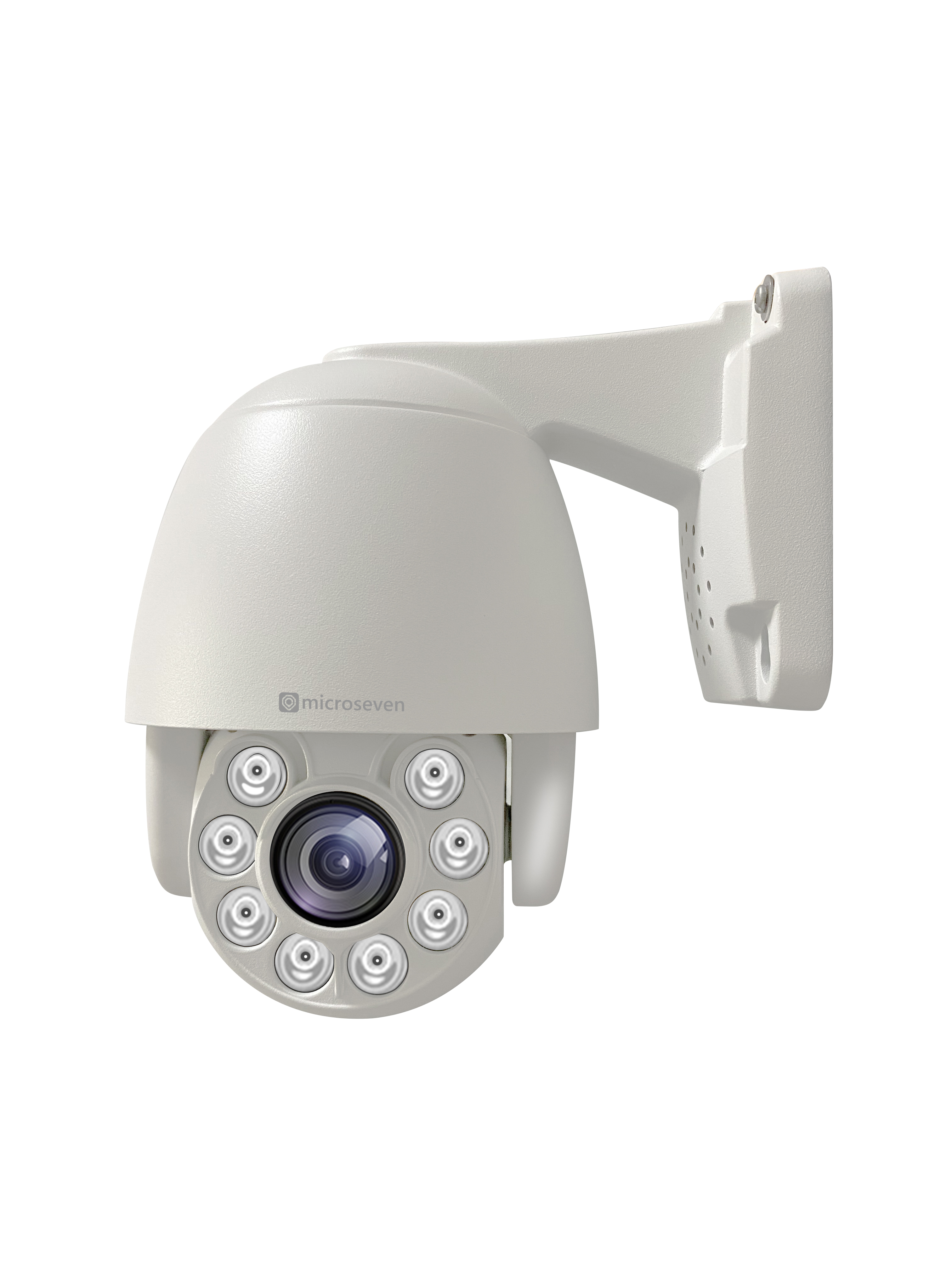

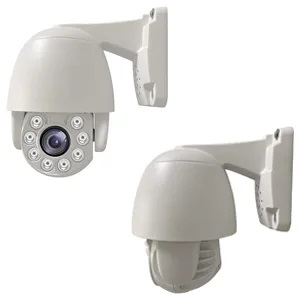

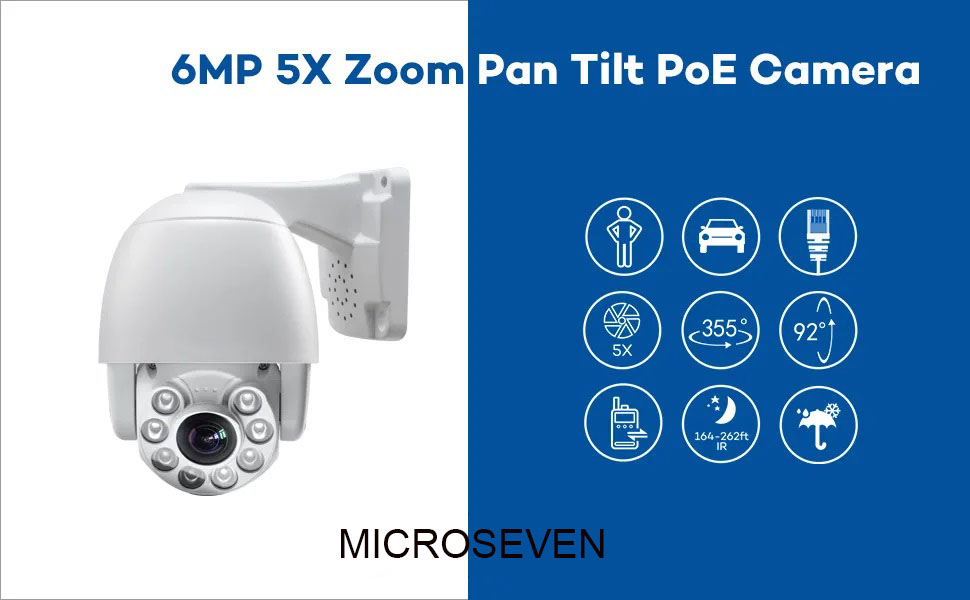

Microseven Professional 6MP (3072 x 2048) UltraHD PoE with 5x Optical Motorized Zoom Pan Tilt Outdoor PTZ IP Camera, Built-in PoE+, Two-Way Audio, ONVIF Security Speed Dome Camera, Night Vision, SD Card Slot Support up to 256GB, 24hr Cloud Storage and Live Streaming on YouTube, Facebook and microseven.tv

Model: M7D6MP-5X-PSAA

  • All Microseven Cameras can do FTP to send video clips and images to an FTP server with ( 1. FTP alert clip 2. FTP on-demand photo 3. RTSP open source )
  • All Microseven cameras have been open-sourced and are flawlessly accessible via Blue Iris software and third-party software, iOS or Android App. PTZ control uses ONVIF 8080 in third-party software and DVR/NVR system.
  • There is no limit on how many cameras can be added to the Microseven Cloud site for them to work with Alexa.
  • Microseven cameras not only provide a beautiful and crisp picture, but they are also extremely flexible in their setup and compatibility.

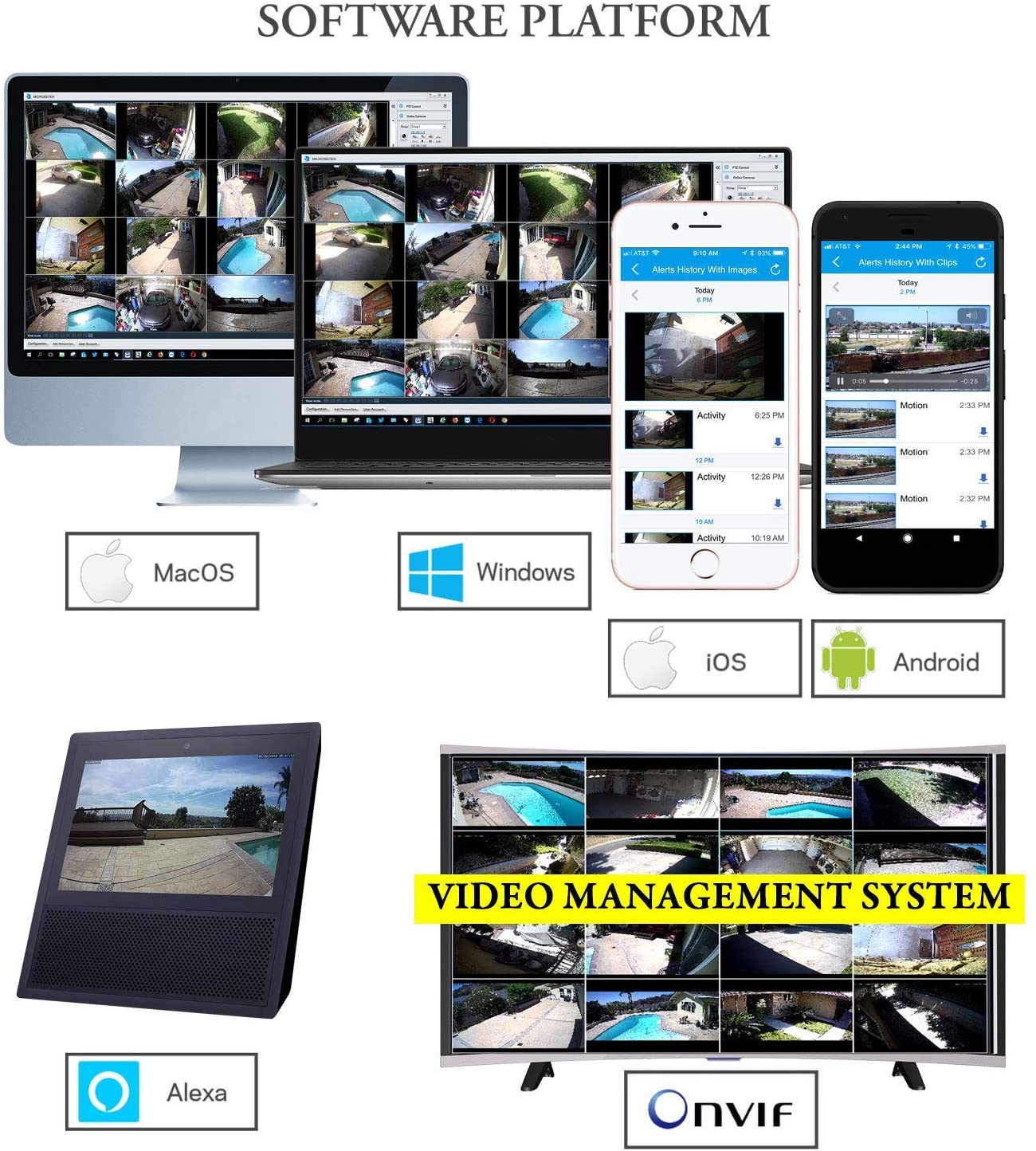

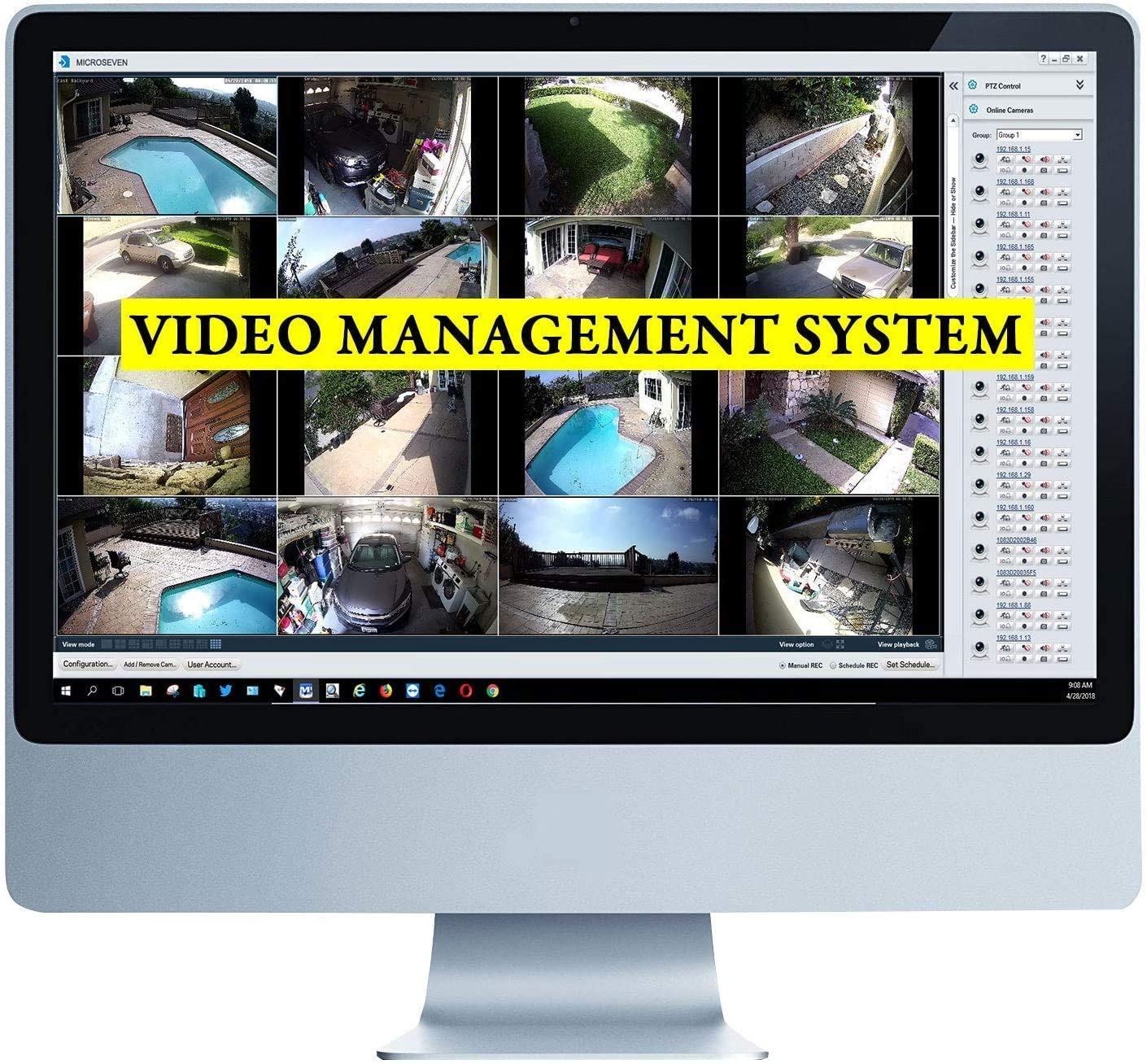

  • Microseven provides free software VMS (Video management system/video management software/video management server) up to 16 Cameras on one screen for Windows & Mac, plus free iOS and Android apps.



Key Features:

  • Built-in Web Server allows you to remote View & Playback from Your PC, Smartphone or Tablet. Also provides Desktop App-VMS (Video management system/video management software/video management server) up to 16 Cameras on one screen. 5MP UltraHD 3072 x 2048 resolution. Super clear night vision up to 328ft, 20x optical zoom, 360° endless horizontal rotation, 90° tilt. Working over POE+ or Wired. All-metal casing IP66 rating
  • Two-way audio allow you to listen & talk back with just a touch via phone, tablet with M7 App, or M7 Software. Support multi-view. Setup with App or Web interface. Every Microseven camera has been open-sourced, flawlessly accessible via Blue Iris software as well as third-party software. There is no limit as to how many cameras can be added to the Microseven Cloud site & to work with Alexa. They are extremely flexible in their setup and compatibility. PTZ control table is not covering the Blue Iris tool.
  • 24Hr Cloud Storage for All Microseven Cameras & 256GB MicroSD Card Storage: Camera can record video on M7 cloud download to your phone, record video to the computer, SD Card (Up to 256GB), hard disk drive, and NVR. Allows 4 motion alert zones selected to prevent false alerts. It can share live streams as a webcam and broadcast to YouTube, Facebook, Microseven.tv with no charge!

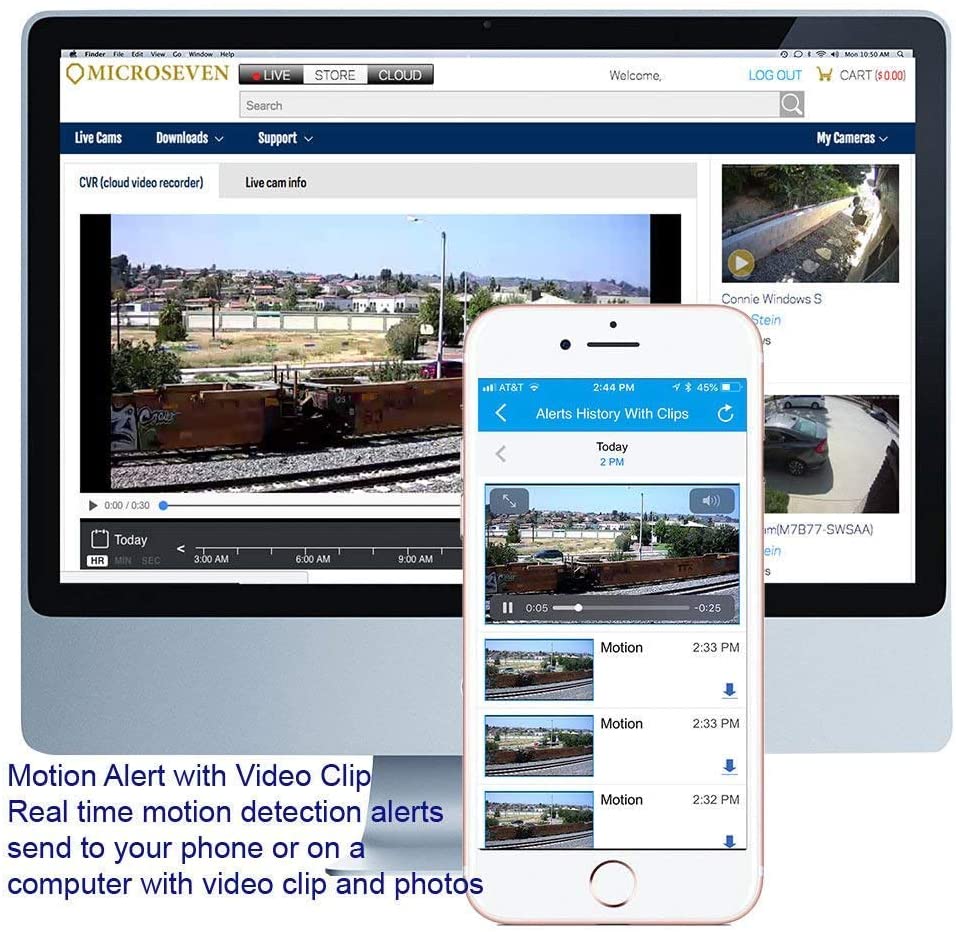

  • Human & Vehicle Motion Detection Alerts: With an intelligent human & Vehicle detection is able to specifically detect moving people and send you real-time alerts through Email or App. Reduce false alerts caused by light change, insects, rain snow bush vehicles. Push notifications to your mobile phone with video clips, send an email notification with images when motion is detected, the camera also can do FTP to send video clips and images to an FTP server. View and playback from your phone/pad / PC anytime anywhere
  • Standard ONVIF Built-in PoE+ Camera ( No need for PoE Adapter ): Work with Microseven NVR, any Onvif NVR, or 3rd Party Software like Milestone, Blue Iris, and NAS, ZoneMinder. Microseven provides free software for Windows, macOS and a free app for iOS and Android also provides the most potent customizable configuration features in the camera Firmware. Quick Wi-Fi setup via iOS or Android device via M7 App, Or PC via M7 Software.

Features:

  • 1/2.8" Sony low-light CMOS sensor

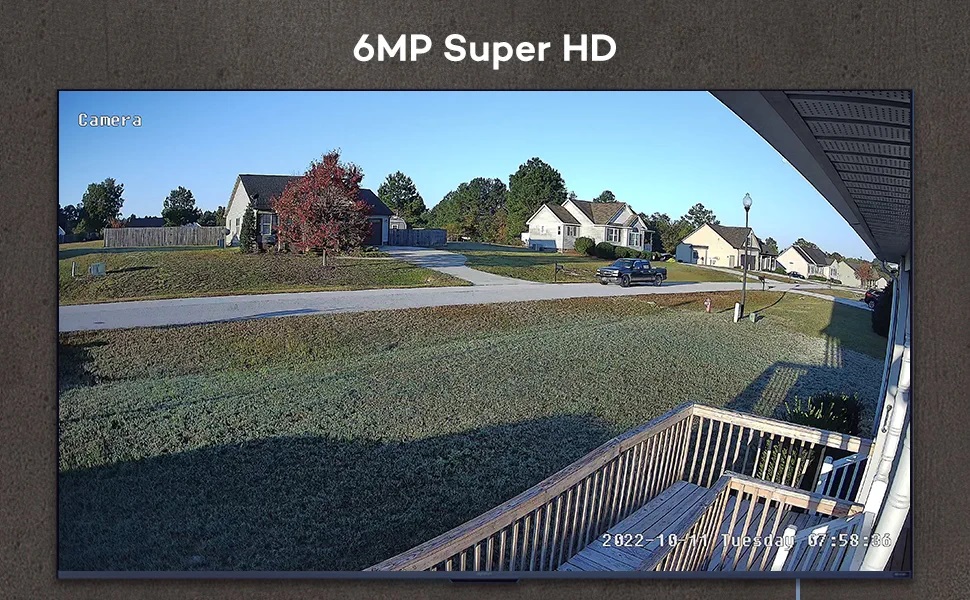

  • 6MP real-time resolution 3072x2048
  • low illumination 0.001Lux
  • 5x optical zoom lens
  • Day/Night, AWB/MWB, BLC, HLC, 2D/3D-DNR, Shutter, IR-CUT
  • D-WDR, Mirror, flip, Defogging
  • Multiply Style OSD Overlay, Motion Detection, Privacy Mask
  • RTSP and Onvif 17.06 compatible with many third-party NVR
  • 264/H.265 dual-stream media server
  • Easy-to-use P2P Cloud service
  • Support user authentication, video data encryption
  • Support Alarm Snapshot to Email and FTP
  • Multiply WEB browser IE, Firefox 32bit ESR, PC Client, Mobile APP remote access
  • Lightning protection 4000V
  • Strong water-proof housing IP66
  • 8 PCS Array IR LEDs, IR distance 70-80 meters
  • Human body detection, Vehicle detection
  • Two-way Audio, SD card slot (Max. 256GB)

Model

M7D6MP-5X-PSAA

Camera

Image Sensor

1/2.8" Sony CMOS

Effective Pixels

6 megapixels

Electronic Shutter

AUTO, 1/25s ~ 1/100000s

Min. Illumination

0.001Lux@F1.2(AGC ON), 0Lux IR on

Day/Night

Auto/Color/(B/W)/Timing

WDR

Digital WDR

White Balance

Auto/Manual

BLC /HLC

Support

DNR

2D/3D DNR

Other

AGC, Motion Detection, Privacy Mask, Flip, OSD overlay

Encode

Video Standard

H.264/H.265

Video Resolution

Main Stream:

25fps@6MP(3072x2048)/25fps@5MP(2592x1944)/4MP(2592x1520)/3MP, 30fps@1080P/720P

Substream: 25fps@D1/VGA/360P/CIF, etc.

Video Bitrates

512Kbps - 12Mbps, VBR/CBR

Audio Standard

G.711-u/G.711-a

Built-in Mic

Yes

IR LEDs

IR LEDs

8 PCS Array IR LEDs

LEDs Distance

IR distance 70-80meters

Lens

Focal length

2.7-13.5mm

Zoom

5x optical zoom

Optional Function

PoE, human auto-tracking, Two-way Audio, SD card slot (Max. 256GB)

PTZ

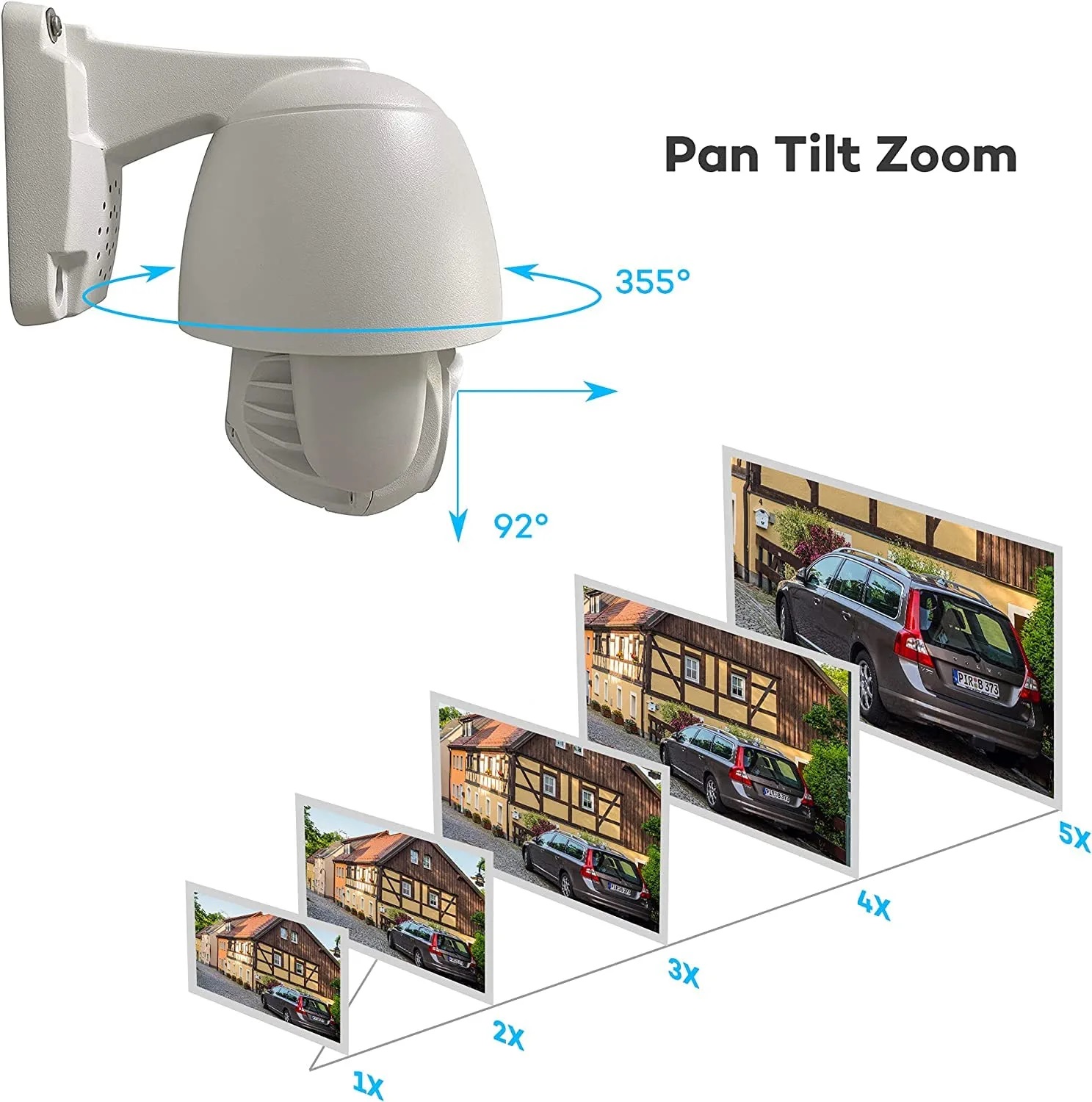

Pan/Tilt Range

Pan: 0° ~ 355°; Tilt: 0° ~ 90°

Preset Point

7

Control Speed

Pan: 0.5° ~20° /s; Tilt: 0.5° ~20° /s

A-B  Scanning

Support

Auto Cruising

Support 8 groups

Power on Action

Preset/Scan/Cruise

Power-off Recovery

Support

Network Services

Protocol

HTTP/RTSP/FTP/NFS/SMTP/DHCP/NTP, etc.

P2P

Yes

Web

IE, Firefox (32bit esr), etc.

Media

CMS, Android, IOS

ONVIF

17.06 compatible

General

Network Port

1-RJ45, 100Mbps, PoE 48V in

Power Supply

12 VDC ± 10% 2A

Power Consumption

< 20 W

Operating Temp.

-30℃-(+60)℃, 10%-90%RH

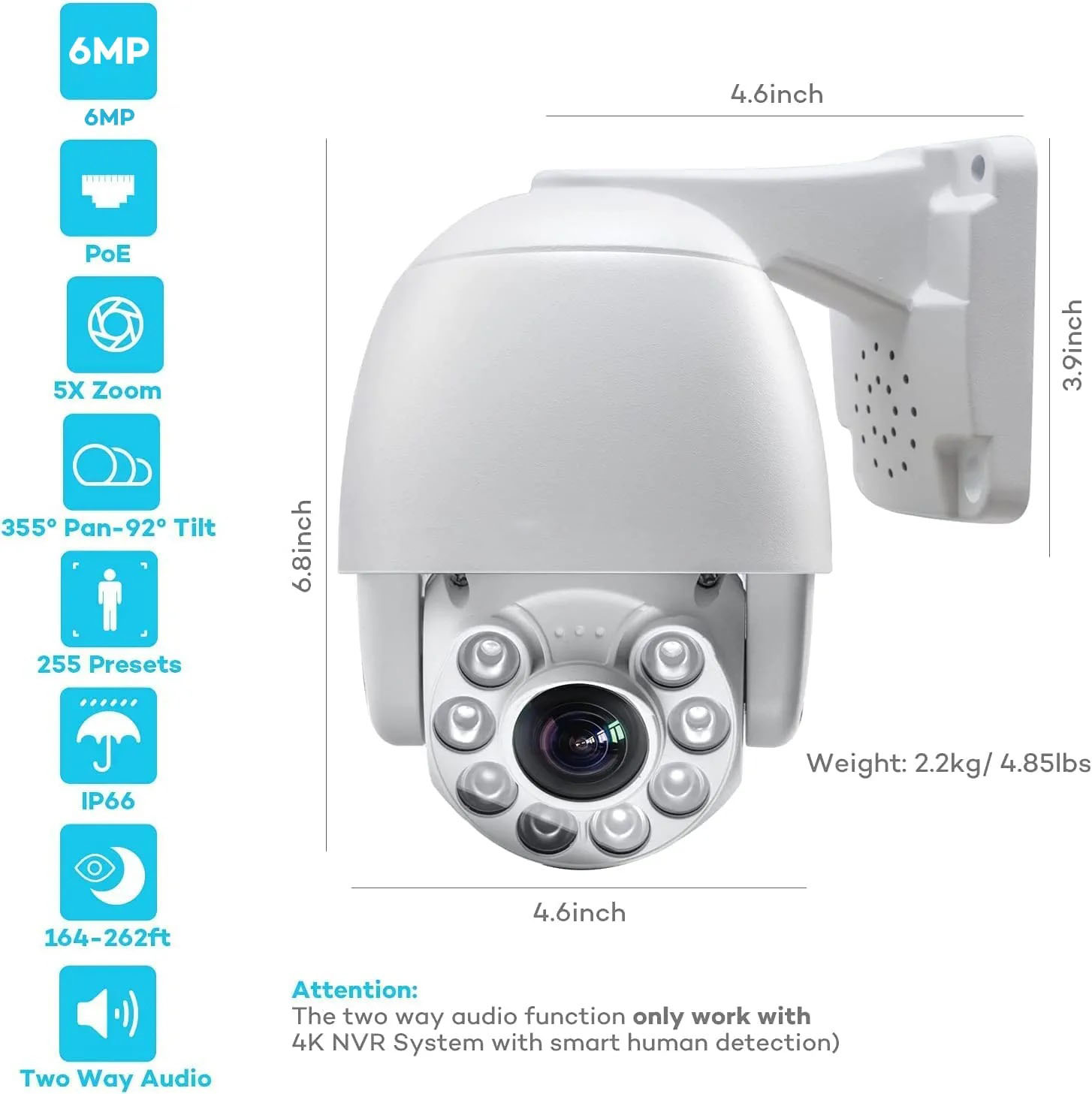

Size

226*190*130mm

Weight

1kg
