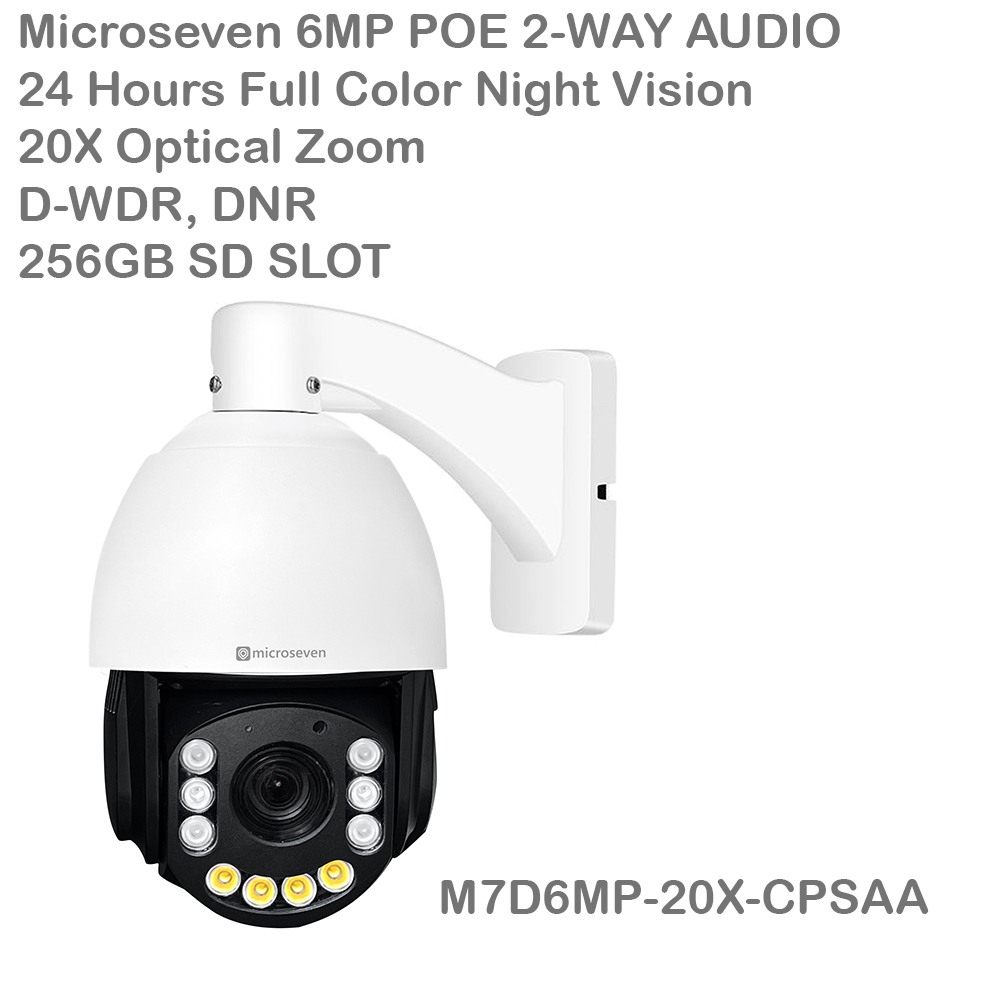

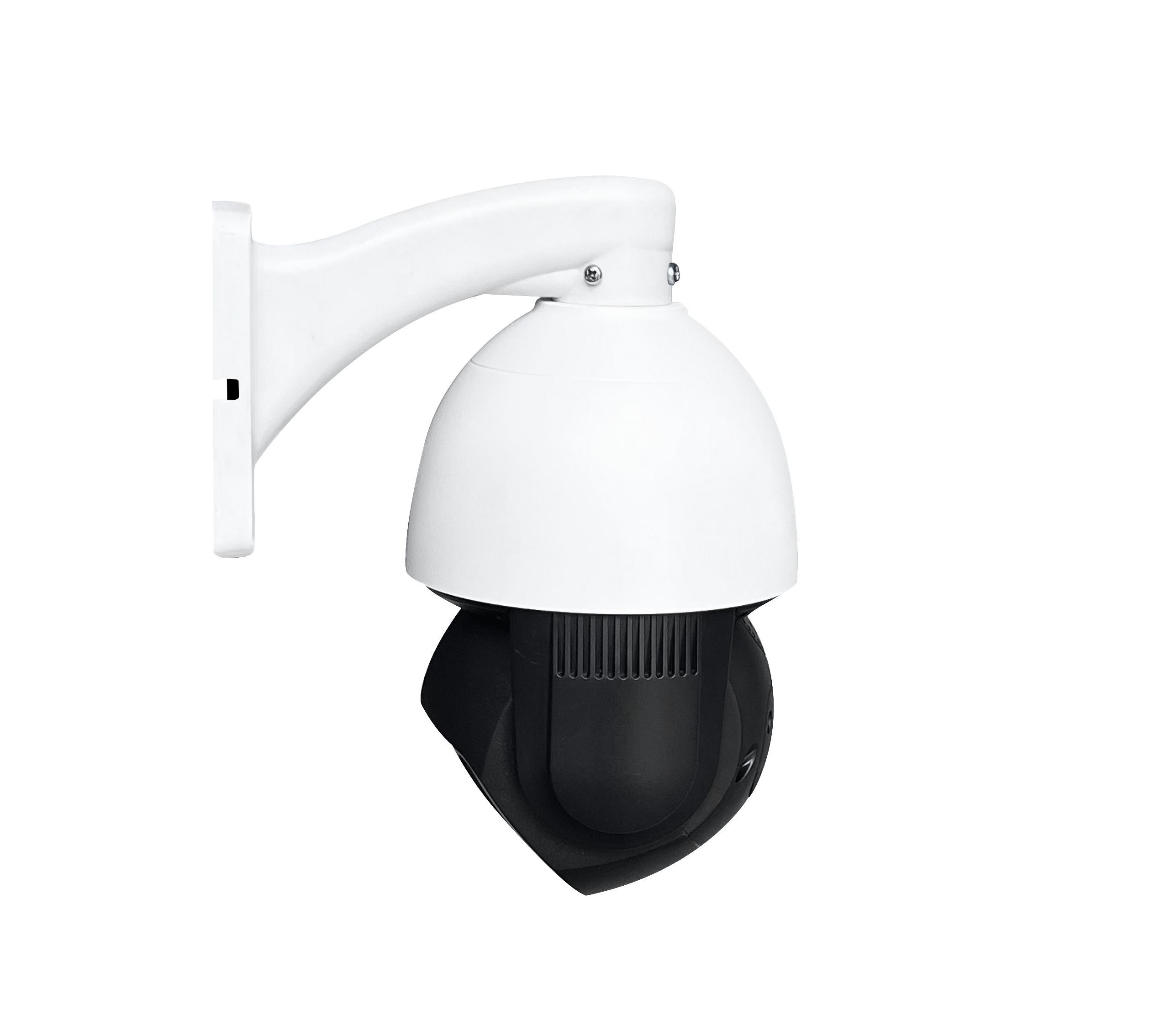

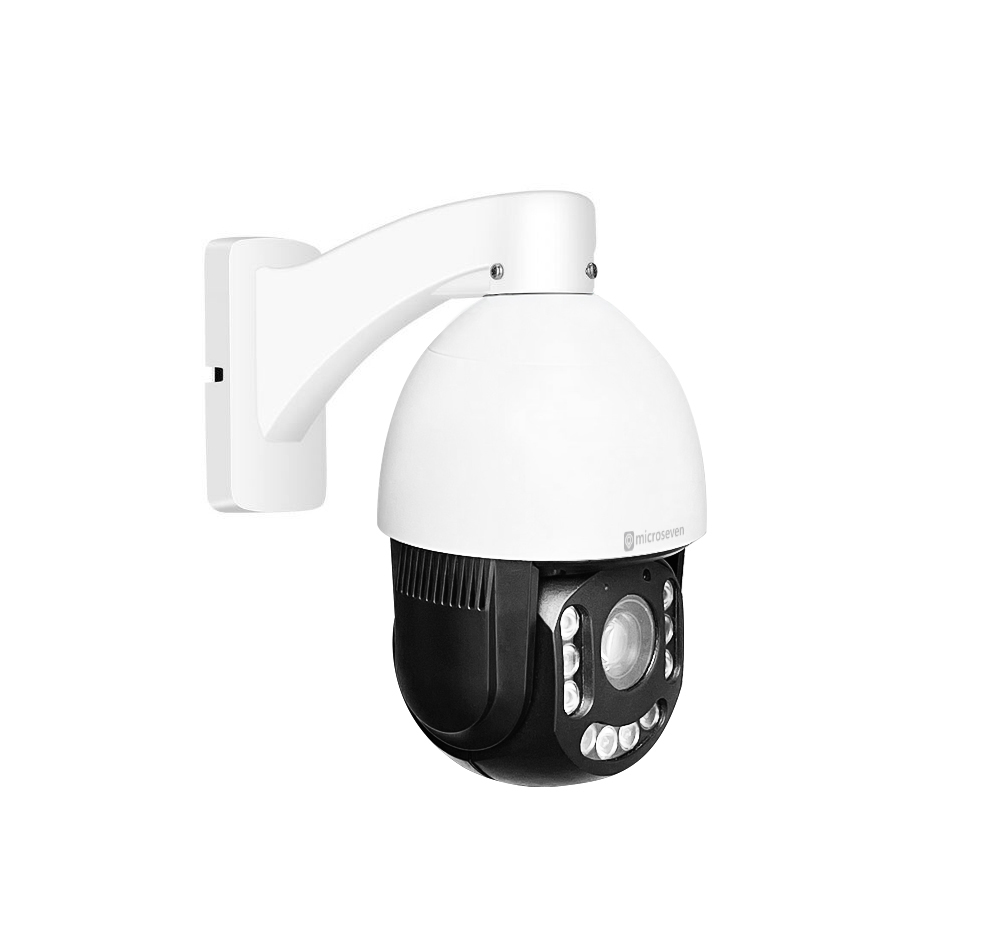

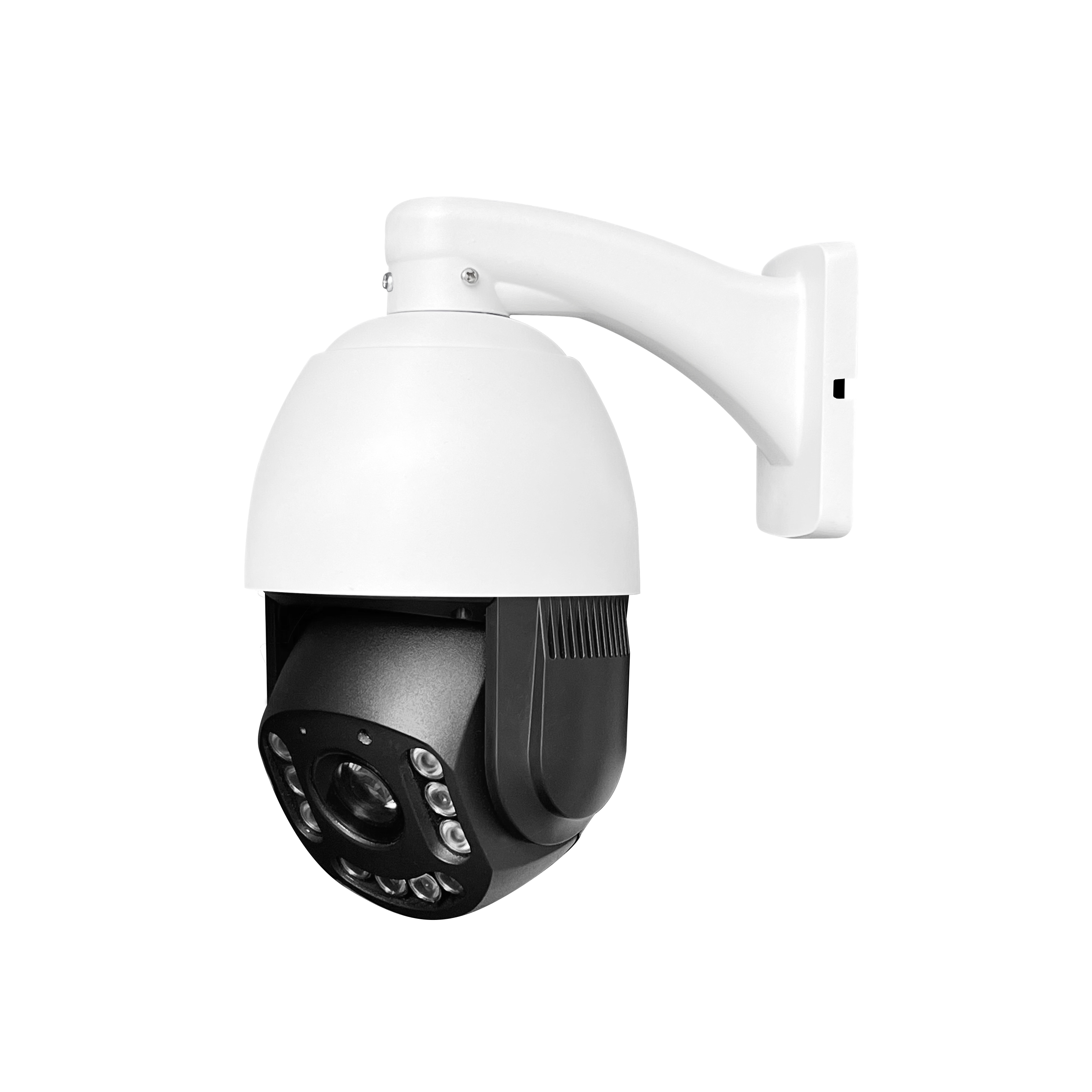

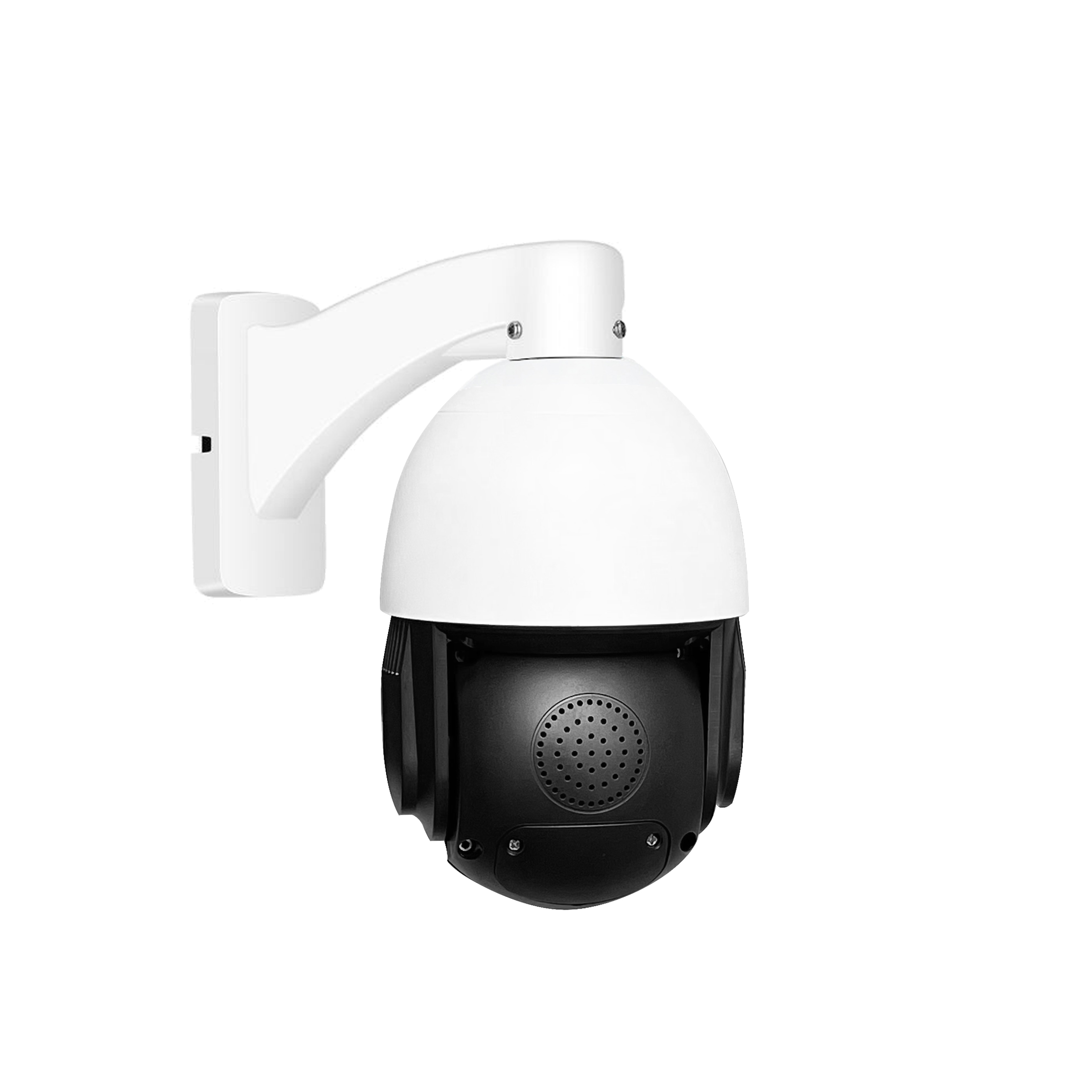

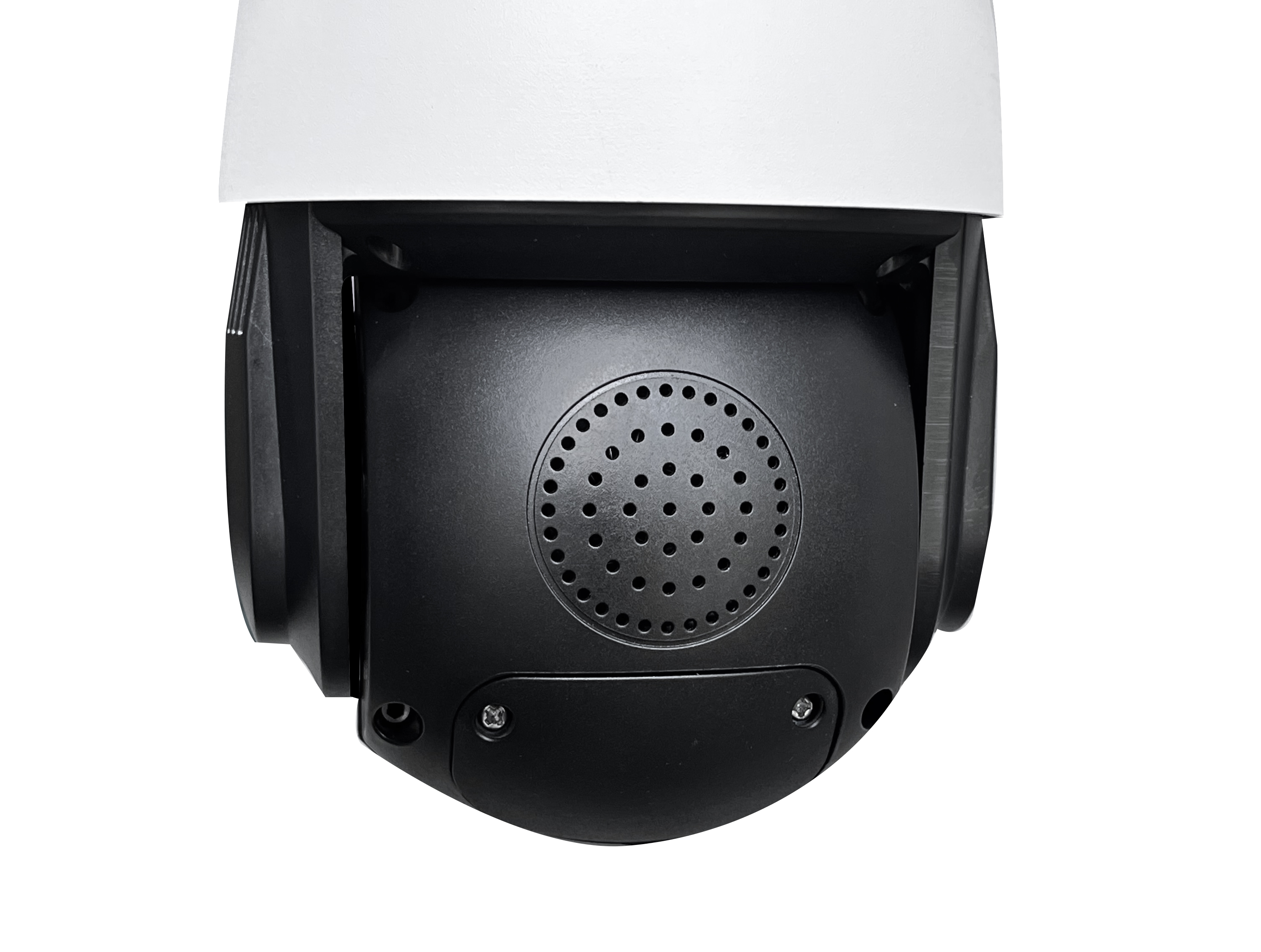

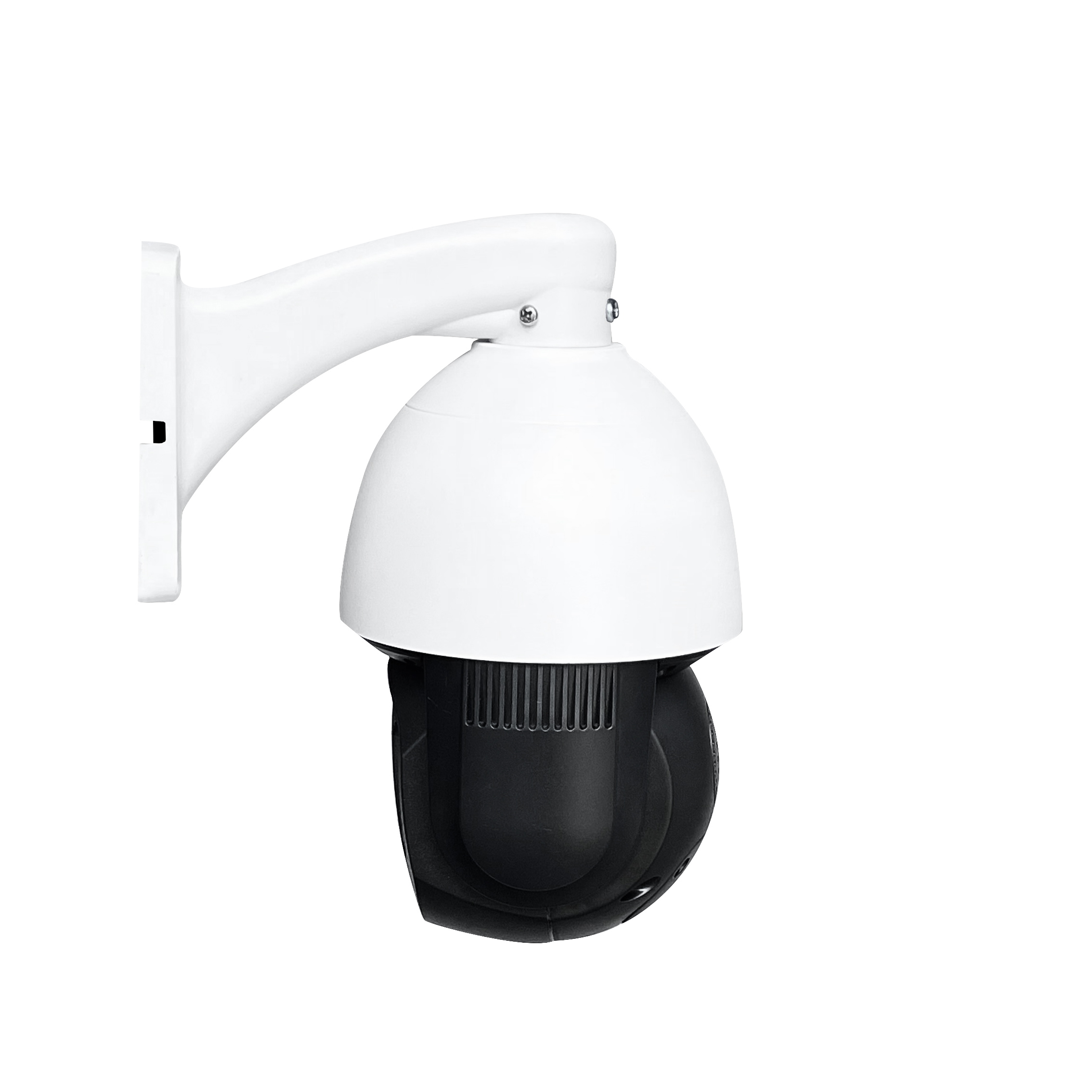

Microseven Ultra HD 6MP (3072x2048) Full Color Night Vision PoE+ Indoor / Outdoor 20X Optical Zoom Pan Tilt Speed Dome (PTZ) IP Network Camera with Human & Vehicle Motion Detection & Auto Tracking, WDR, DNR, IP66 Waterproof, Built-in 256GB SD card Slot, Two-Way Audio, Auto Cruise, Web GUI & Apps, VMS (Video Management System), Cloud Storage and Broadcasting on YouTube & Microseven 3072x2048P / M7D6MP-20X-CPSAA

$299.99 $399.99 You Save: $100.00 (25.00%)

ITEM# M7D6MP-20X-CPSAA

UPC 018406663644

STATUS Available

QUANTITY

Key Features Tech Specs Description

Work with Blue Iris software!

New Human & Vehicle Motion Detection Reduce 90% false alert caused by insects rain snow bush!

Note: This is a POE PTZ CAMERA! Not WiFi Camera!

Microseven Open Source 6MP Full Color Night Vision UltraHD PoE+ 20X Optical Zoom Pan Tilt Speed Dome IP Camera, Human & Vehicle Motion Detection & Auto Tracking, Indoor / Outdoor PTZ Camera,WDR, DNR, Day & Night,Sony Starvis CMOS,IP66 Weatherproof, Built-in 256GB SDcard Slot, Two-Way Audio, Auto Cruise,ONVIF, Web GUI & Apps, VMS (Video Management System), Free 24Hr Cloud Storage + Broadcasting on YouTube,Facebook & Microseven.tv

Model: M7D6MP-20X-CPSAA

All Microseven Cameras can do FTP to send video clips and images to an FTP server with ( 1. FTP alert clip 2. FTP on-demand photo 3. RTSP open source )(NOT FOR THIS MODEL )

All Microseven cameras have been open-sourced (NOT FOR THIS MODEL ) and are flawlessly accessible via Blue Iris software as well as the third-party software, iOS or Android App. PTZ control uses ONVIF 8080 in third-party software and DVR/NVR system.
Microseven cameras not only provide a beautiful and crisp picture, but they are also extremely flexible in their setup and compatibility.

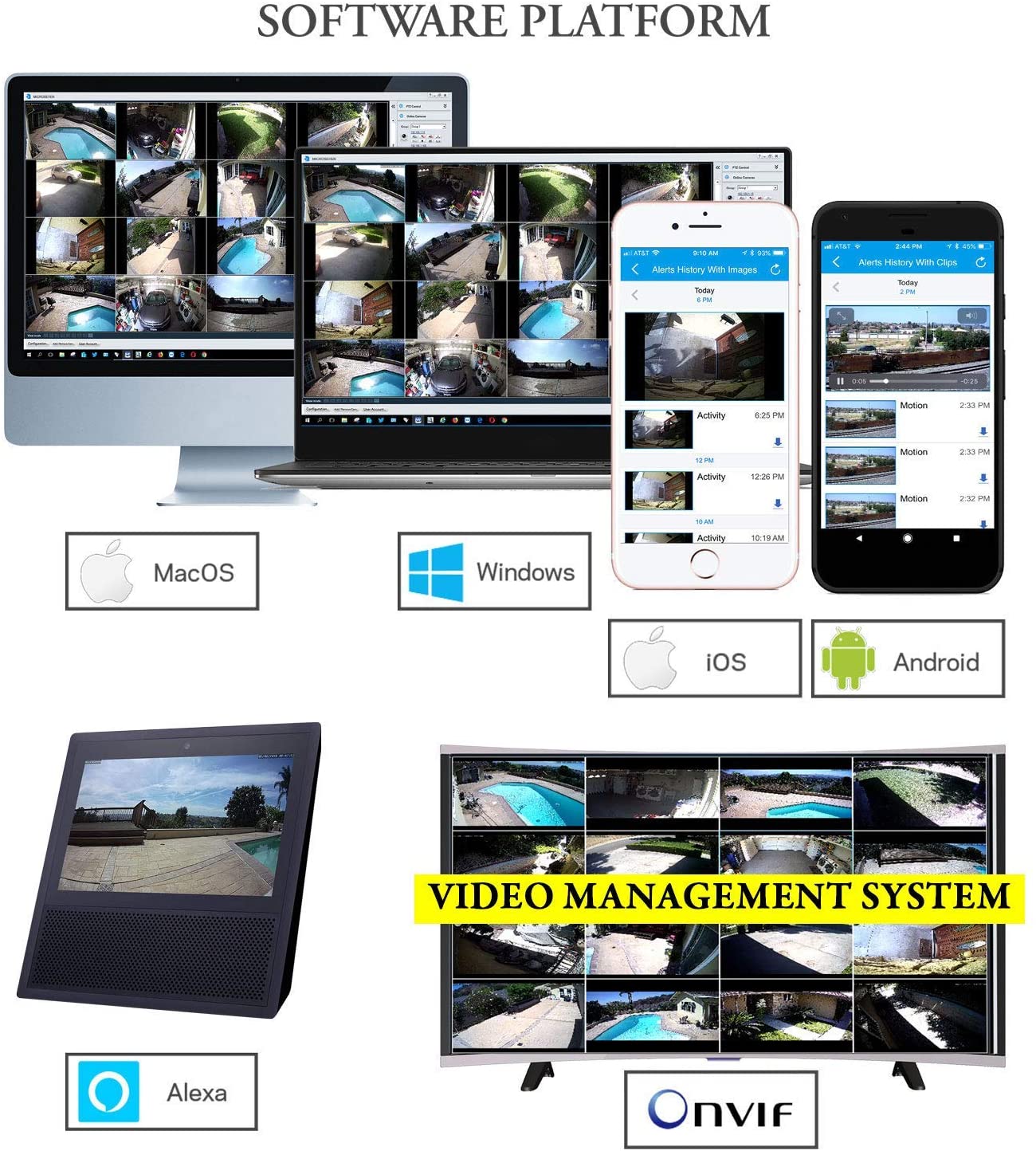

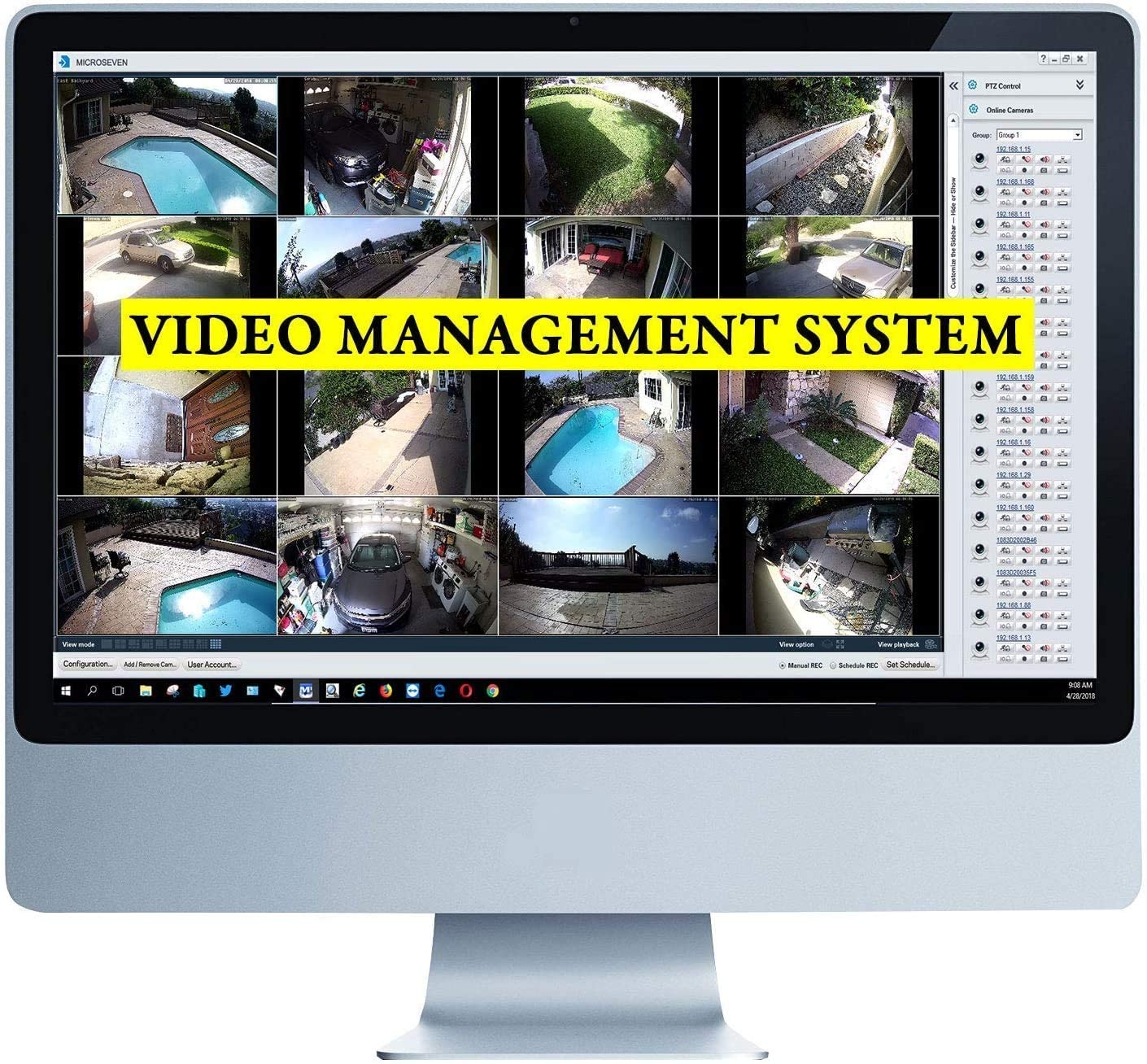

Microseven provides free software VMS (Video management system/video management software/video management server) up to 16 Cameras on one screen for Windows & Mac, plus free iOS and Android App.
Two-way Audio, SD card slot (Max. 256GB)

Features:

1/2.8" Sony low-light CMOS sensor
6MP realtime resolution 3072x2048
low illumination 0.001Lux
20x optical zoom lens
Day/Night, AWB/MWB,BLC, HLC, 2D/3D-DNR,Shutter, IR-CUT
D-WDR, Mirror, flip, Defogging
Multiply Style OSD Overlay,Motion Detection, Privacy Mask
RTSP and Onvif 17.06 compatible with many third-party NVR
264/H.265 dual-stream media server
Easy-to-use P2P Cloud service
Support user authentication, video data encryption

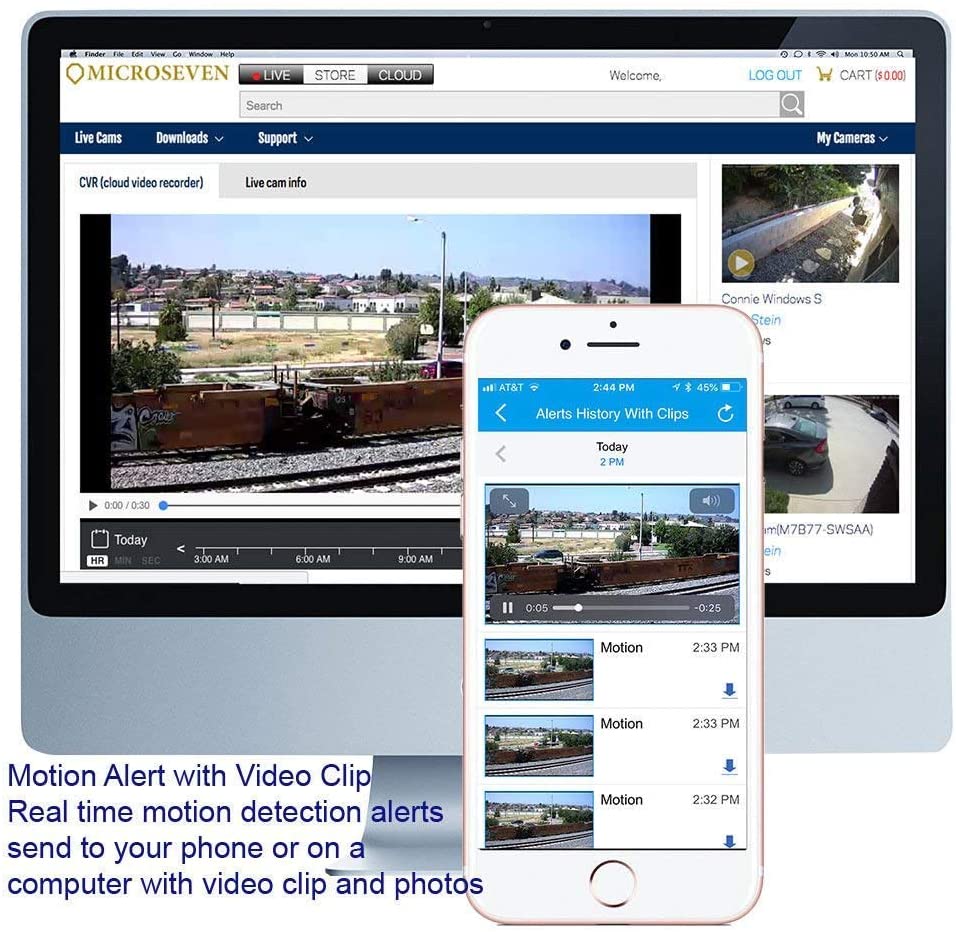

Support Alarm Snapshot to Email and FTP
Multiply WEB browser IE,Firefox 32bit ESR, PC Client, Mobile APP remote access
Lightning protection 4000V
Strong water-proof housing IP66
4 PCS warm light & IR dual light, light distance 40-50 meters
6 PCS Array IR LEDs, IR distance 80-100 meters
Support Human auto-tracking
Human body detection, Vehicle detection

Two-way Audio, SD card slot (Max. 256GB)

Model	M7D6MP-20X-CPSAA
Camera
Image Sensor	1/2.8" Sony CMOS
Effective Pixels	6 megapixels
Electronic Shutter	AUTO, 1/25s ~ 1/100000s
Min. Illumination	0.001Lux@F1.2(AGC ON), 0Lux IR on
Day/Night	Auto/Color/(B/W)/Timing
WDR	Digital WDR
White Balance	Auto/Manual
BLC /HLC	Support
DNR	2D/3D DNR
Other	AGC,Motion Detection,Privacy Mask,Flip,OSD overlay
Encode
Video Standard	H.264/H.265
Video Resolution	Main Stream: 25fps@6MP(3072x2048)/25fps@5MP(2592x1944)/4MP(2592x1520)/3MP, 30fps@1080P/720P Sub stream: 25fps@D1/VGA/360P/CIF, etc.
Video Bitrates	512Kbps - 12Mbps, VBR/CBR
Audio Standard	G.711-u/G.711-a
Built-in Mic	yes
LEDs
LEDs	4 PCS 4 PCS warm light & IR dual light 6 PCS Array IR LEDs
LEDs Distance	Dual light distance 40-50 meters IR distance 80-100meters
Lens
Focal length	4.7-94mm
IRIS	F1.6-3.5
View angle	64 - 2.9 °
Zoom	20x optical zoom
Optional Function
PoE, human auto-tracking, Two-way Audio, SD card slot (Max. 256GB)
PTZ
Pan/Tilt Range	Pan: 0° ~ 360°; Tilt: 0° ~ 90°
Preset Point	128
Control Speed	Pan: 0.5° ~40° /s; Tilt: 0.5° ~40° /s
A-B Scanning	Support
Auto Cruising	Support 8 groups
Power on Action	Preset/Scan/Cruise
Power-off Recovery	Support
Network Services
Protocol	HTTP/RTSP/FTP/NFS/SMTP/DHCP/NTP, etc.
P2P	Yes
Web	IE , Firefox (32bit esr), etc.
Media	CMS, Android, IOS
ONVIF	17.06 compatible
General
Network Port	1-RJ45, 100Mbps, PoE 48V in
Power Supply	12 VDC ± 10% 2A
Power Consumption	< 20 W
Operating Temp.	-30℃-(+60)℃, 10%-90%RH

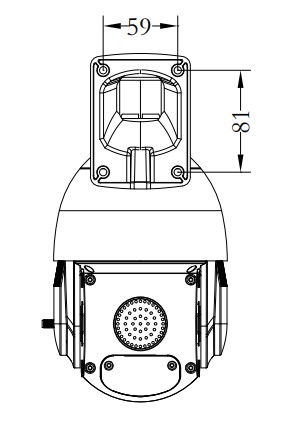

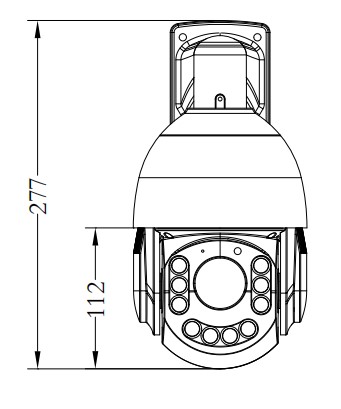

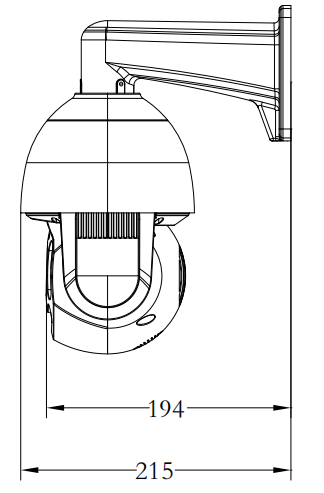

Size	Φ137(mm)×234(mm)
Weight	2.3kg
