IN STOCK NOW!

New Human & Vehicle Motion Detection Reduce 90% false alert caused by insects rain snow bush!

Note:  This is POE PTZ CAMERA! Not WiFi Camera!

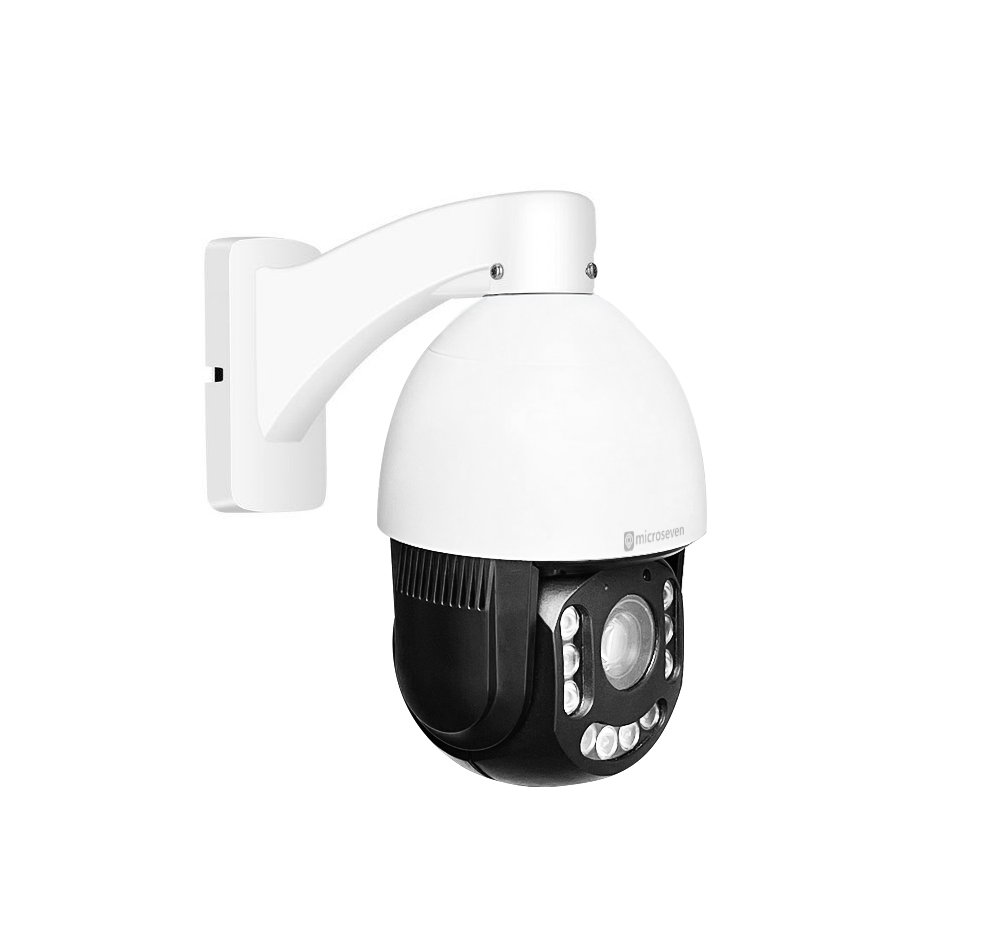

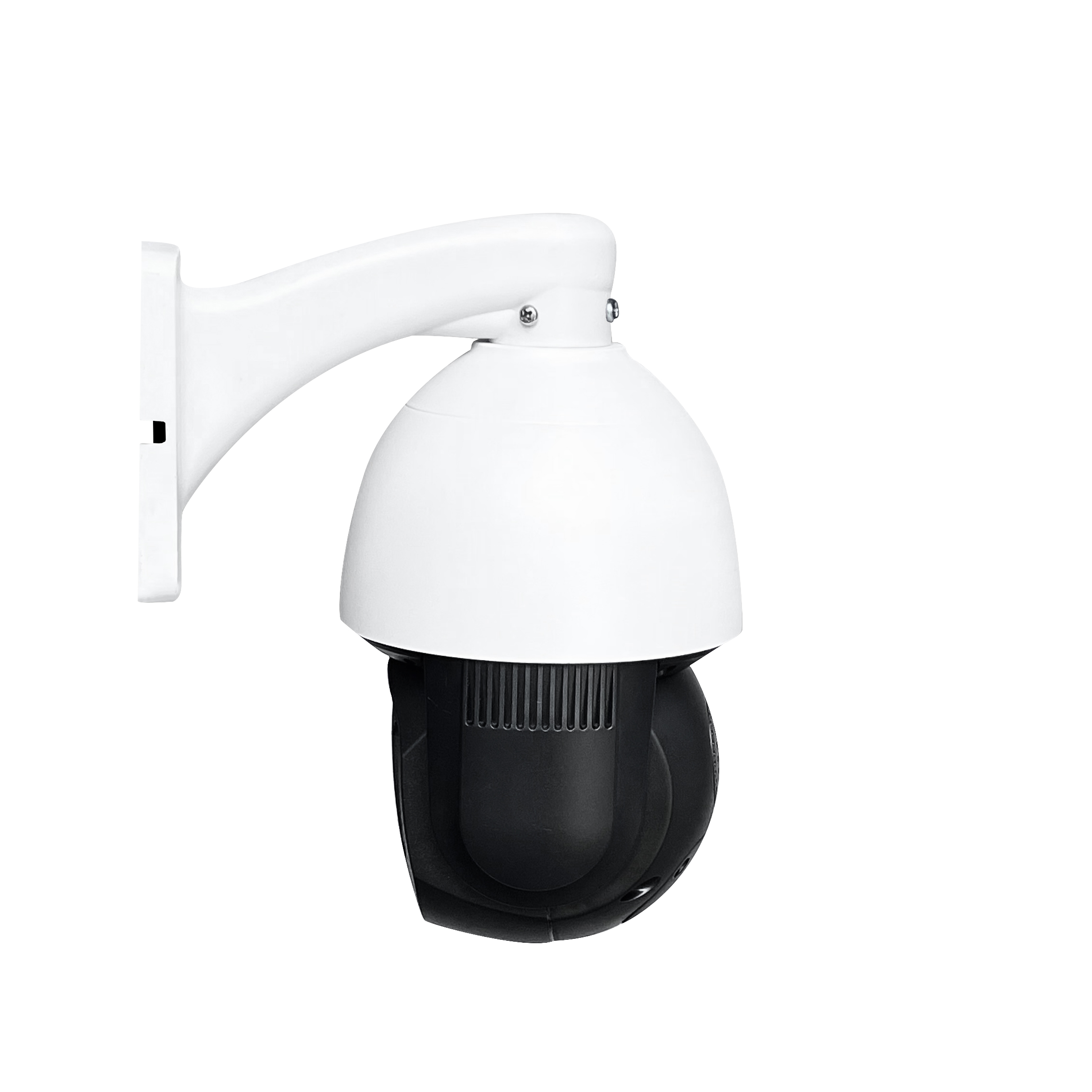

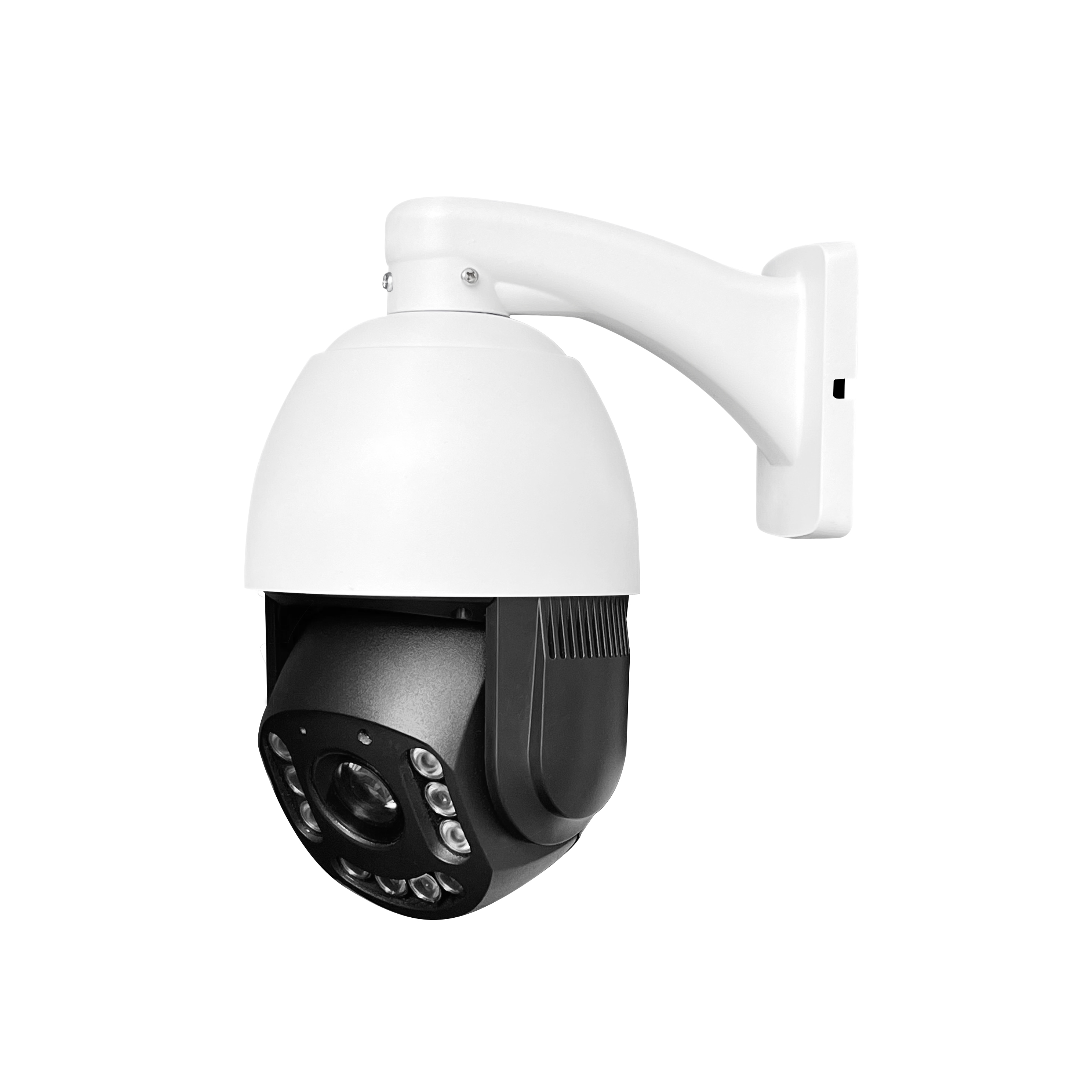

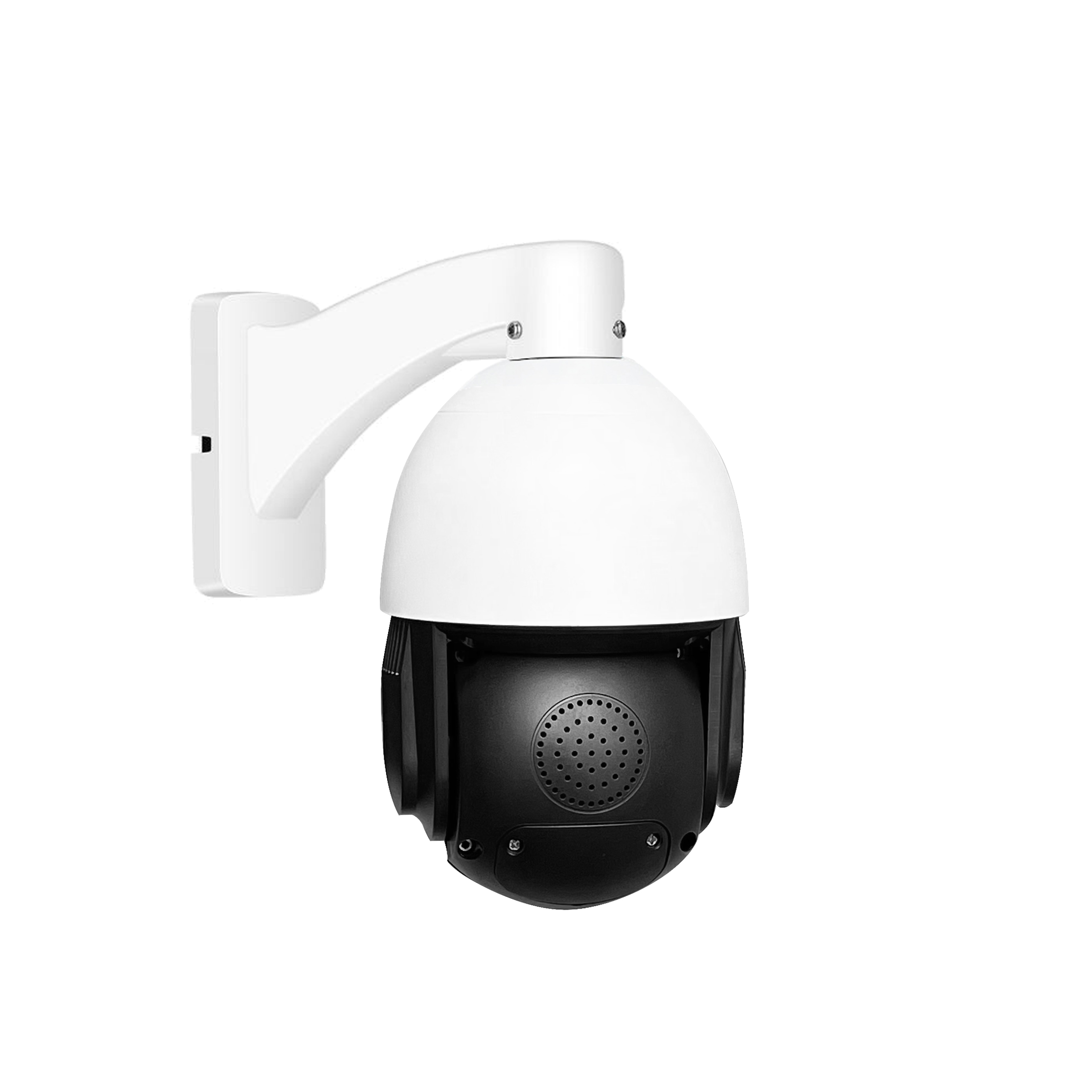

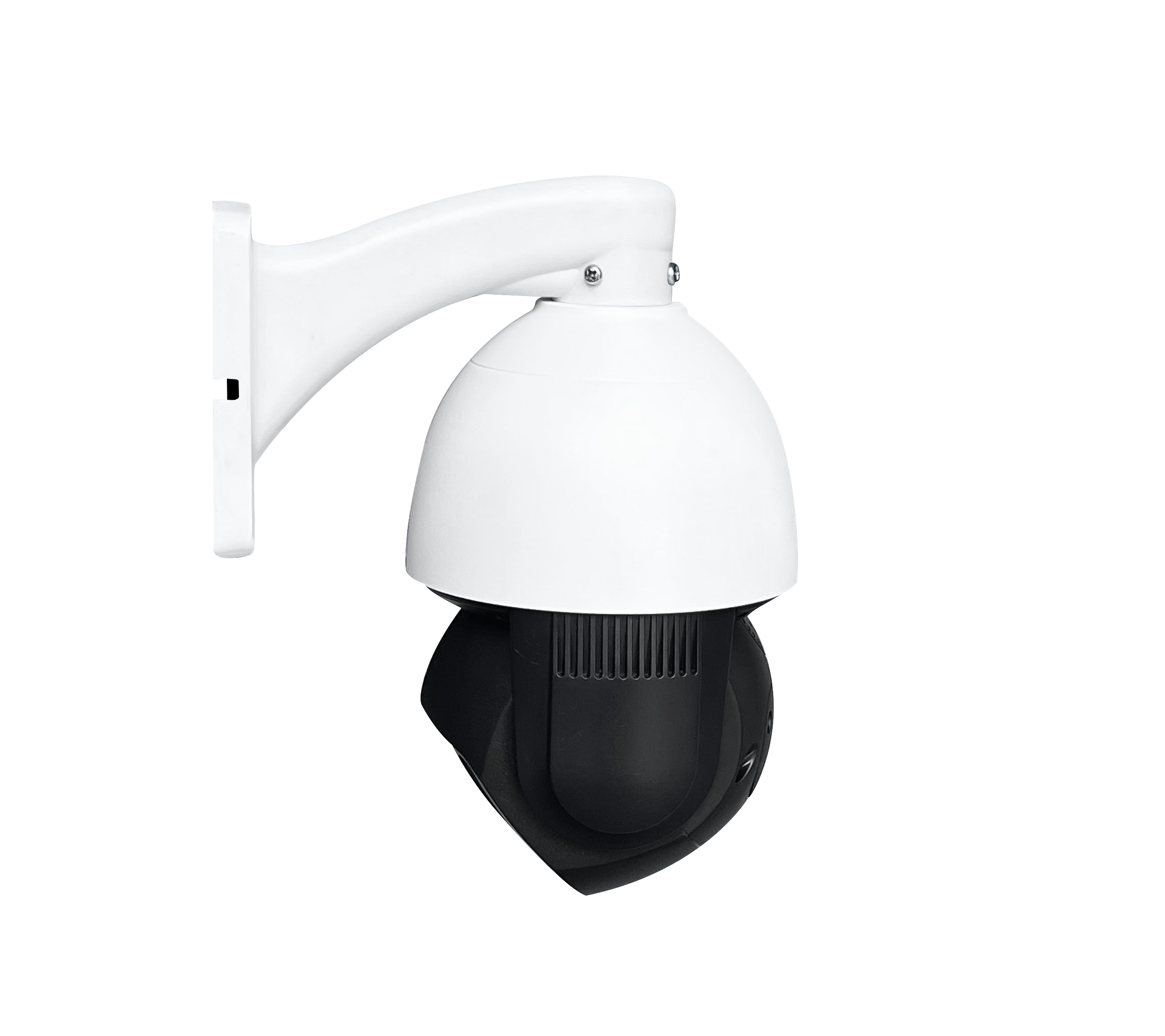

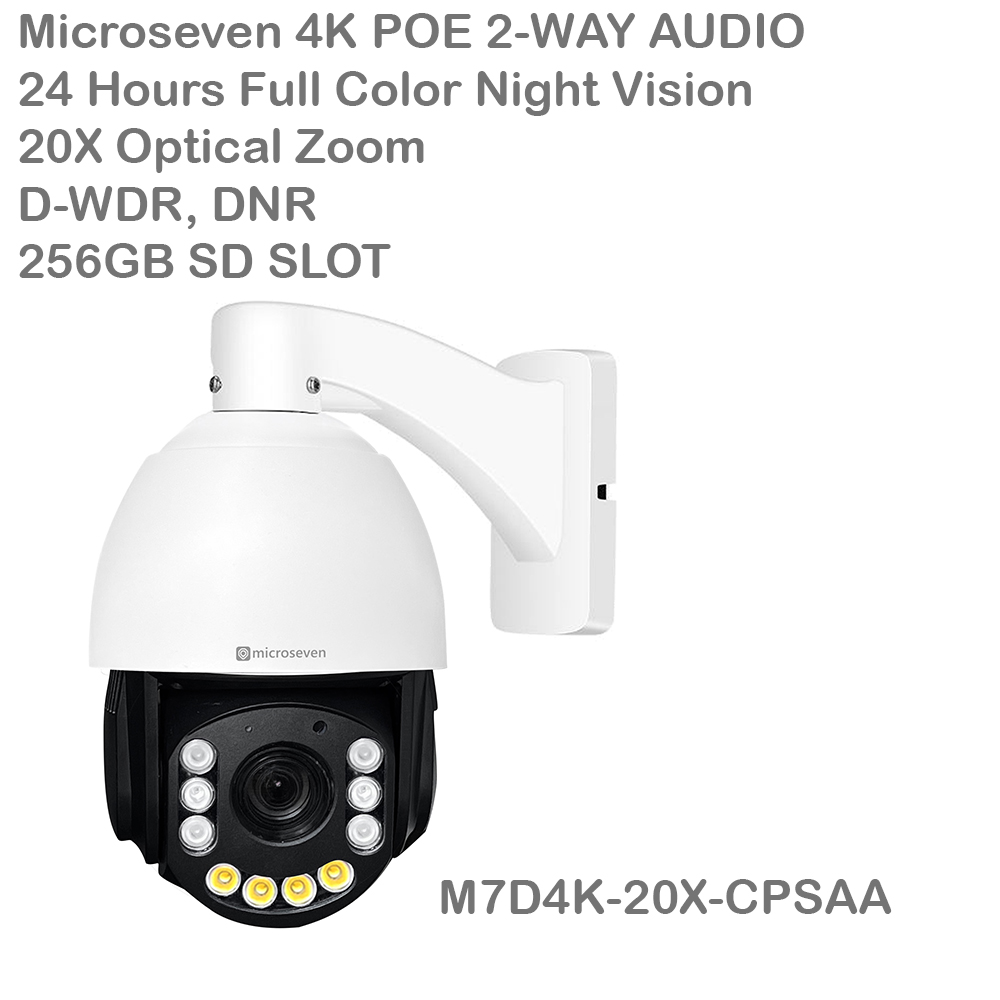

Microseven Open Source 4K/8MP Full Color Night Vision UltraHD PoE+ 20X Optical Zoom Pan Tilt Speed Dome IP Camera, Human & Vehicle Motion Detection & Auto Tracking, Indoor / Outdoor PTZ Camera,WDR, DNR, Day & Night,Sony Starvis CMOS,IP66 Weatherproof, Built-in 256GB SDcard Slot, Two-Way Audio, Auto Cruise,ONVIF, Web GUI & Apps, VMS (Video Management System), Free 24Hr Cloud Storage + Broadcasting on YouTube,Facebook & Microseven.tv

Model: M7D4K-20X-CPSAA

  • All Microseven Cameras can do FTP to send video clips and images to an FTP server with ( 1. FTP alert clip 2. FTP on-demand photo 3. RTSP open source )
  • All Microseven cameras have been open-sourced and are flawlessly accessible via Blue Iris software as well as the third-party software, iOS or Android App. PTZ control uses ONVIF 8080 in third-party software and DVR/NVR system.
  • Microseven cameras not only provide a beautiful and crisp picture, but they are also extremely flexible in their setup and compatibility.

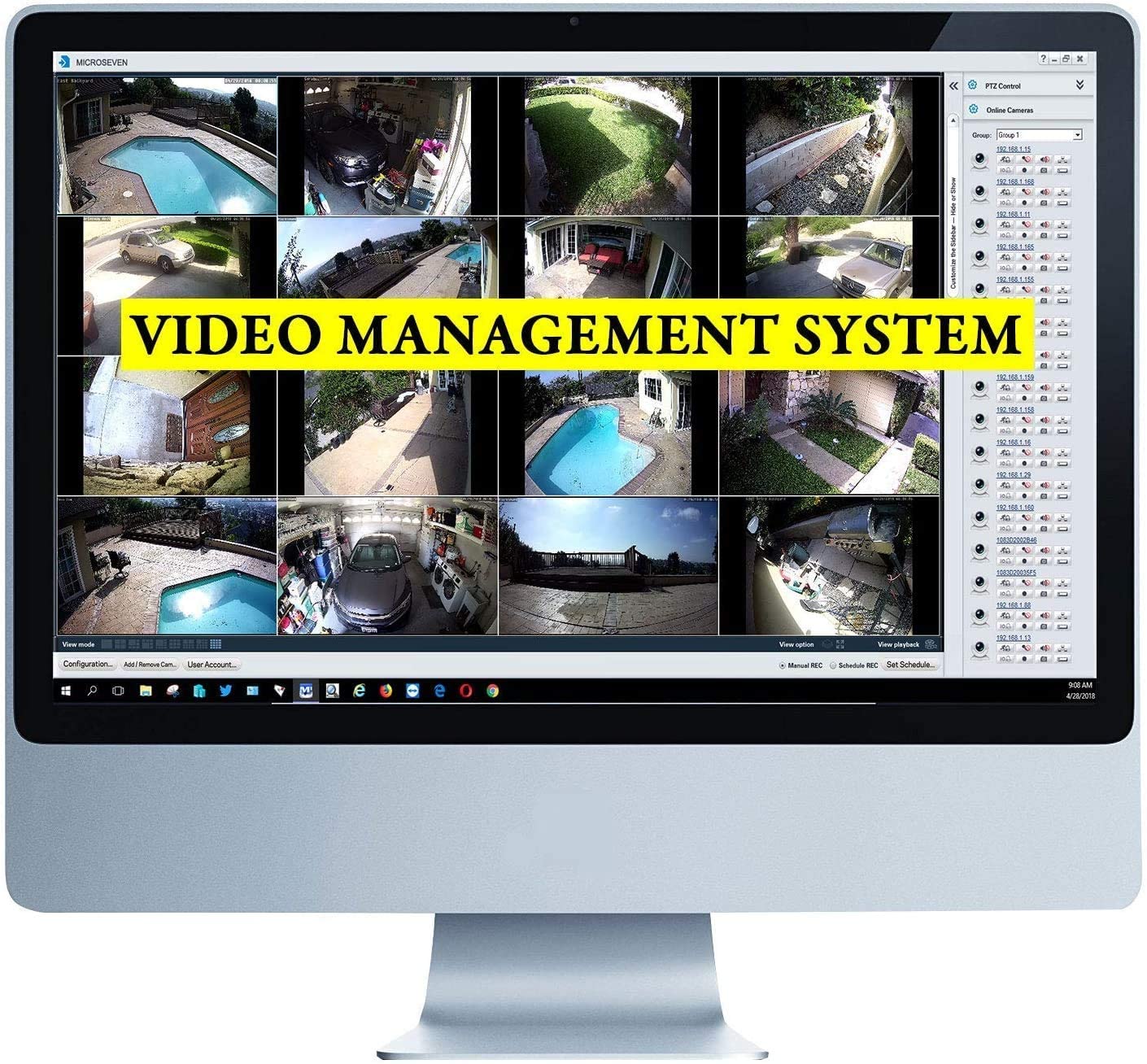

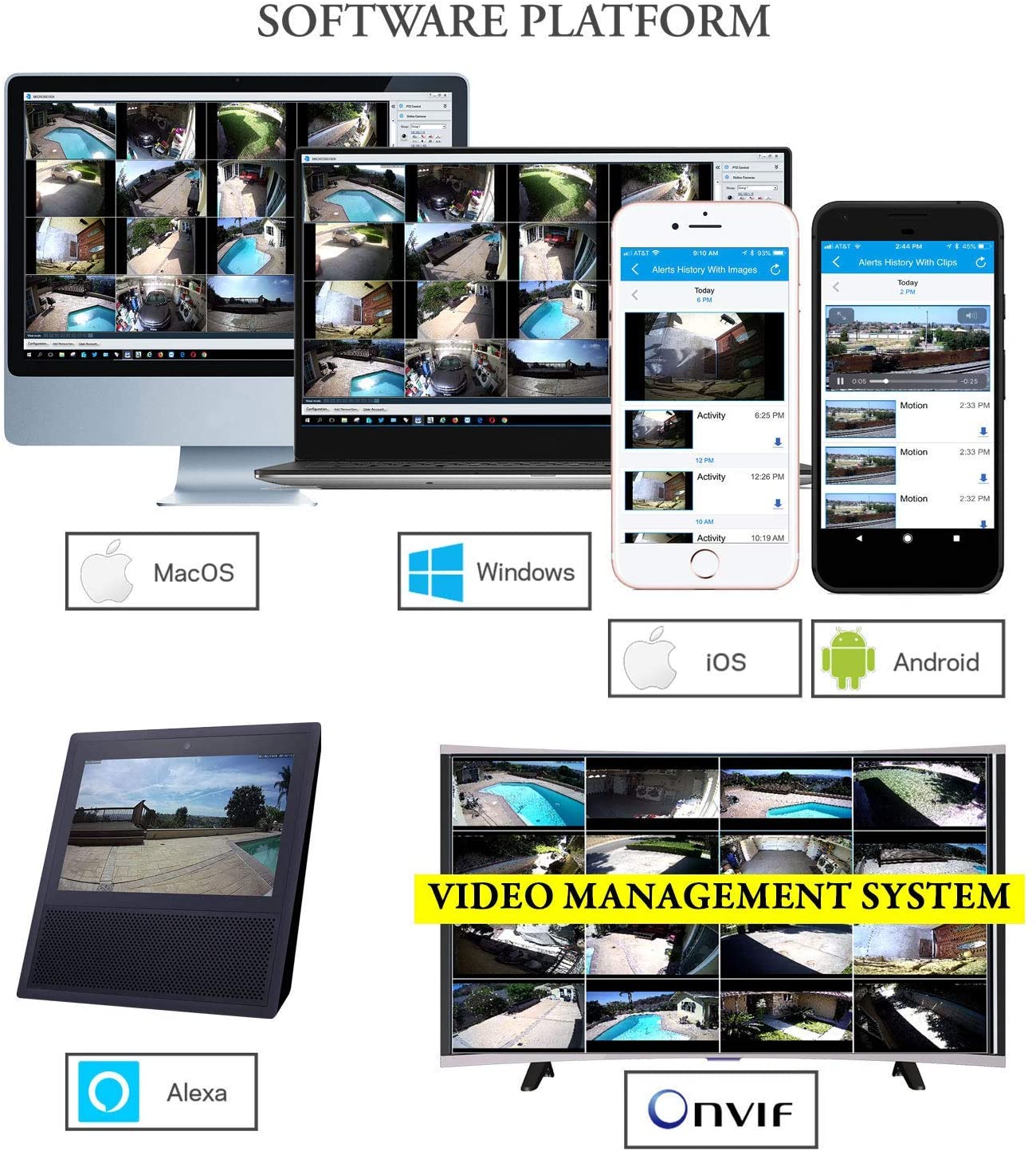

  • Microseven provides free software VMS (Video management system/video management software/video management server) up to 16 Cameras on one screen for Windows & Mac, plus free iOS and Android App.
  • Two-way Audio, SD card slot (Max. 256GB)



Features:

  • 1/2.8" Sony low-light CMOS sensor
  • 4K 8MP resolution3840 x 2160 output
  • low illumination 0.01Lux
  • 20x optical zoom lens
  • Day/Night, AWB/MWB,BLC, HLC, 2D/3D-DNR,Shutter, IR-CUT
  • D-WDR, Mirror, flip, Defogging
  • Multiply Style OSD Overlay,Motion Detection, Privacy Mask
  • RTSP and Onvif 17.06 compatible with many third-party NVR
  • 264/H.265 dual-stream media server
  • Easy-to-use P2P Cloud service
  • Support user authentication, video data encryption

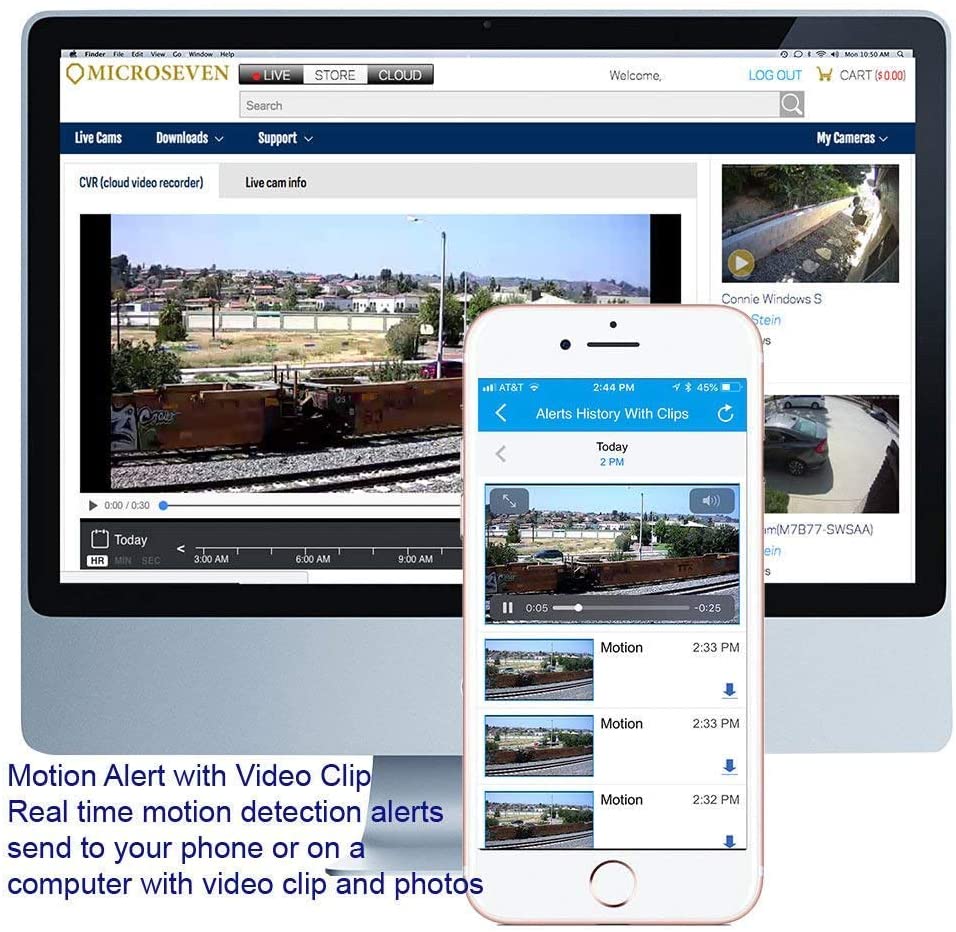

  • Support Alarm Snapshot to Email and FTP
  • Multiply WEB browser IE,Firefox 32bit ESR, PC Client, Mobile APP remote access
  • Lightning protection 4000V
  • Strong water-proof housing IP66
  • 4 PCS warm light & IR dual light, light distance 40-50 meters
  • 6 PCS Array IR LEDs, IR distance 80-100 meters
  • Support Human auto-tracking
  • Human body detection, Vehicle detection

Model

M7D4K-20X-CPSAA

Camera

Image Sensor

1/2.8" Sony CMOS

Effective Pixels

8 megapixels

Electronic Shutter

AUTO, 1/25s ~ 1/100000s

Min. Illumination

0.01Lux@F1.2(AGC ON), 0Lux IR on

Day/Night

Auto/Color/(B/W)/Timing

WDR

Digital WDR

White Balance

Auto/Manual

BLC /HLC

Support

DNR

2D/3D DNR

Other

AGC, Motion Detection, Privacy Mask, Flip, OSD overlay

Encode

Video Standard

H.264/H.265

Video Resolution

Main Stream: 20fps@8MP(3840x2160),30fps@6MP(3072x2048)/5MP(2592x1944)/4MP/3MP/1080P/720P,etc.

Sub stream: 720x480/VGA(640x480)/360P/QVGA@30fps,etc.

Video Bitrates

512Kbps - 12Mbps, VBR/CBR

Audio Standard

G.711-u/G.711-a

Built-in Mic

Yes

LEDs

LEDs

4 PCS 4 PCS warm light & IR dual light

6 PCS Array IR LEDs

LEDs Distance

Dual light distance 40-50 meters

IR distance 80-100meters

Lens

Focal length

4.7-94mm

IRIS

F1.6-3.5

View angle

64 - 2.9 °

Zoom

20x optical zoom

Optional Function

PoE, human auto-tracking, Two-way Audio, SD card slot (Max. 256GB)

PTZ

Pan/Tilt Range

Pan: 0° ~ 360°; Tilt: 0° ~ 90°

Preset Point

128

Control Speed

Pan: 0.5° ~40° /s; Tilt: 0.5° ~40° /s

A-B  Scanning

Support

Auto Cruising

Support 8 groups

Power on Action

Preset/Scan/Cruise

Power-off Recovery

Support

Network Services

Protocol

HTTP/RTSP/FTP/NFS/SMTP/DHCP/NTP, etc.

P2P

Yes

Web

IE , Firefox (32bit esr), etc.

Media

CMS, Android, IOS

ONVIF

17.06 compatible

General

Network Port

1-RJ45, 100Mbps, PoE 48V in

Power Supply

12 VDC ± 10% 2A

Power Consumption

< 20 W

Operating Temp.

-30℃-(+60)℃, 10%-90%RH

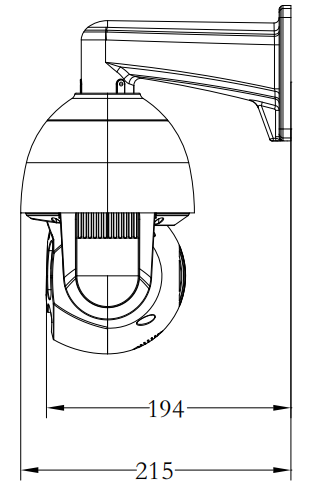

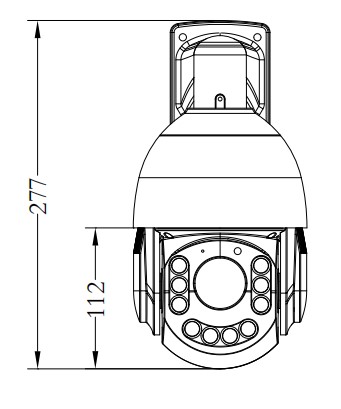

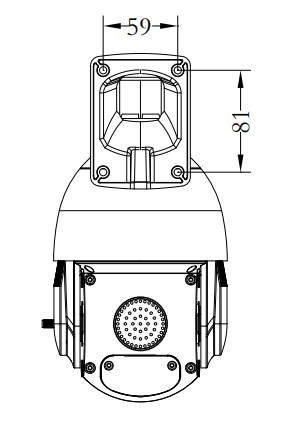

Size

Φ137(mm)×234(mm)

Weight

2.3kg
