Home » Product » Security Cameras 5MP

in stock!

M7B5MP-WSAA [WiFi] Only, No Built-in PoE

M7B5MP-WPSAA [WiFi + PoE] Built-in

Save on Amazon!

New (2019) Human Motion Detection Reduce 90% false alert caused by insects rain snow bush and vehicles!



Professional Home Security Solution Provide Most Potent Customizable Configuration Features In The Camera Firmware


Built-in Web Server allows you to remote View and Playback from PC, Smartphone or Tablet.

Microseven Also provides Desktop App - VMS (Video management system / video management sofware / video management server) up to 16 Cameras on one screen:

  • Collects video from cameras
  • Records / stores that video to a storage device
  • Provides an interface to both view the live video, and access recorded video



  • All Microseven Cameras can do FTP to send video clips and images to an FTP server with ( 1. FTP alert clip 2. FTP on-demand photo 3. RTSP open source )
  • All Microseven cameras have been open sourced and are flawlessly accessible via Blue Iris software as well as the third party software, iOS or Android App.
  • There is no limit as to how many cameras that can be added to the Microseven Cloud site for them to work with Alexa.
  • Microseven cameras not only provide a beautiful and crisp picture, they are extremely flexible in their setup and compatibility!
  • The built-in amplified microphone and high-power speaker allows you View, Listen & Talk back with just a touch Via Phone, Tablet, or Computer.

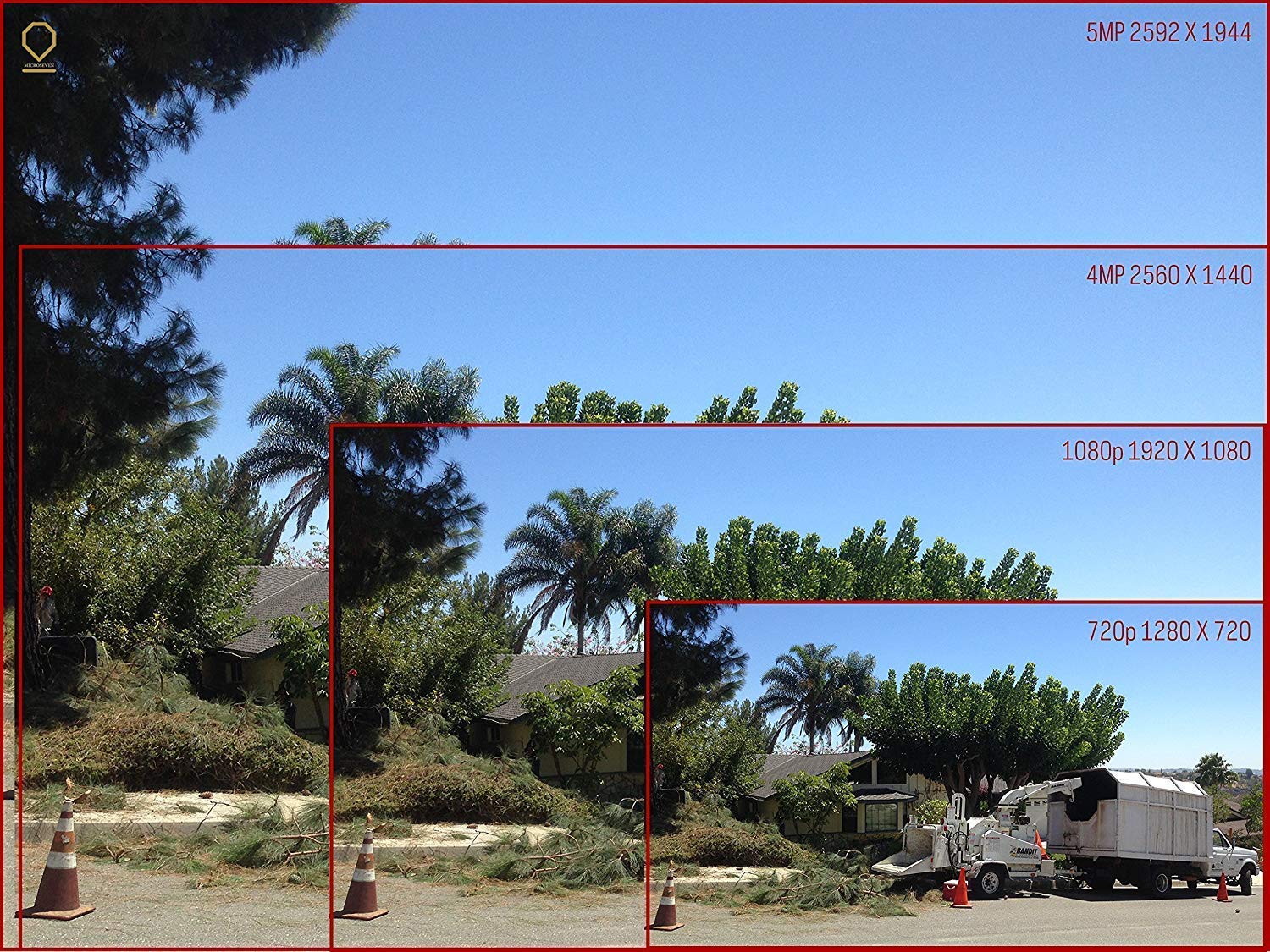

  • High Resolution 5-Megapixel Ultra High Definition Video for Excellent Quality and Clarity.
  • H.265 Main profile, MP4 Format, Support RTSP, Compatible with Any Media Player.
  • A.I.Human Motion Detection Alerts: With intelligent human detection is able to specifically detect moving people and send you real-time alerts through Email or App. Reduce false alert caused by light change,insects,rain snow bush vehicles. Push notifications to your mobile phone with video clips, send email notification with images when motion is detected, the camera also can do FTP to send video clips and images to an FTP server. View and playback from your phone / pad / PC anytime anywhere
  • Intelligent Human-only/Motion Detection and Alert Notification: You can choose the model of human-only detection or the motion detection. The human detection can intelligently identify the human in the video, and only detects human. The motion detection model will detect everything moving, including human, animals, failing leaves, flying birds. In comparison, human detection can reduce many false alarms. If you cannot find the human detection, please download the firmware to upgrade the APP.



  • Providing 24-hour motion event recording and 24 hours of retrievable playback history anywhere, on any device, at any time!
  • M7 Cloud Subscriptions also available at $7.00/Month, $70.00/Year , 30 days Cloud Storage Up to 3 Cameras! You can cancel anytime!
  • Add your camera on microseven.tv to enjoy and share your Live Video with family, friends, and clients - at no additional cost!

Microseven offers exceptional video quality and audio, whether at home or in the office. you can keep a watchful eye on your home or business at anytime and from anywhere. Real waterproof with IP66 Certificate, easier installation around your house, indoor or outdoor. Fully compatible connectivity, works over Wi-Fi, Ethernet, or Power over Ethernet (PoE) 802.3af.

Fast and easy setup

Simply scan, connect, and See What you want! View your camera online Within minutes. With the P2P Server Technology, no complicated port mapping or DDNS settings needed. It's very simple and smoothly.

Real-time Motion detection alerts: Send alert to your mobile phone with video clips and photos in real time. Flexible Storage with MicroSD card or Free M7 Cloud 24 Hrs. Plus free iOS / Android App, Email, mobile notification for instant push notification on your mobile and simultaneously capture those important events right onto your camera for later review and upload the local storage on micro SD card to FTP, NAS, NVR, like Synology, ASUSTOR and QNAP; M7 Cloud

Weatherproof Guard: IP66 rating makes Microseven outdoor security camera ideal for outside use and keep recording in the ever-changing outdoor environment no matter rain or shine



Quick WiFi Configuration

  • Download ‘Microseven’ App from App Store or Google Play.
  • Power on the camera and connect the camera to the Ethernet cable.
  • Run App, tap ‘+’ and select ‘Search Camera from LAN’ add camera.
  • After the camera is added, tap the setting button and choose the WiFi Setting, input your WiFi password to finish the wifi setting.Wait for 30 seconds,then disconnect the ethernet cable, camera will work wirelessly.

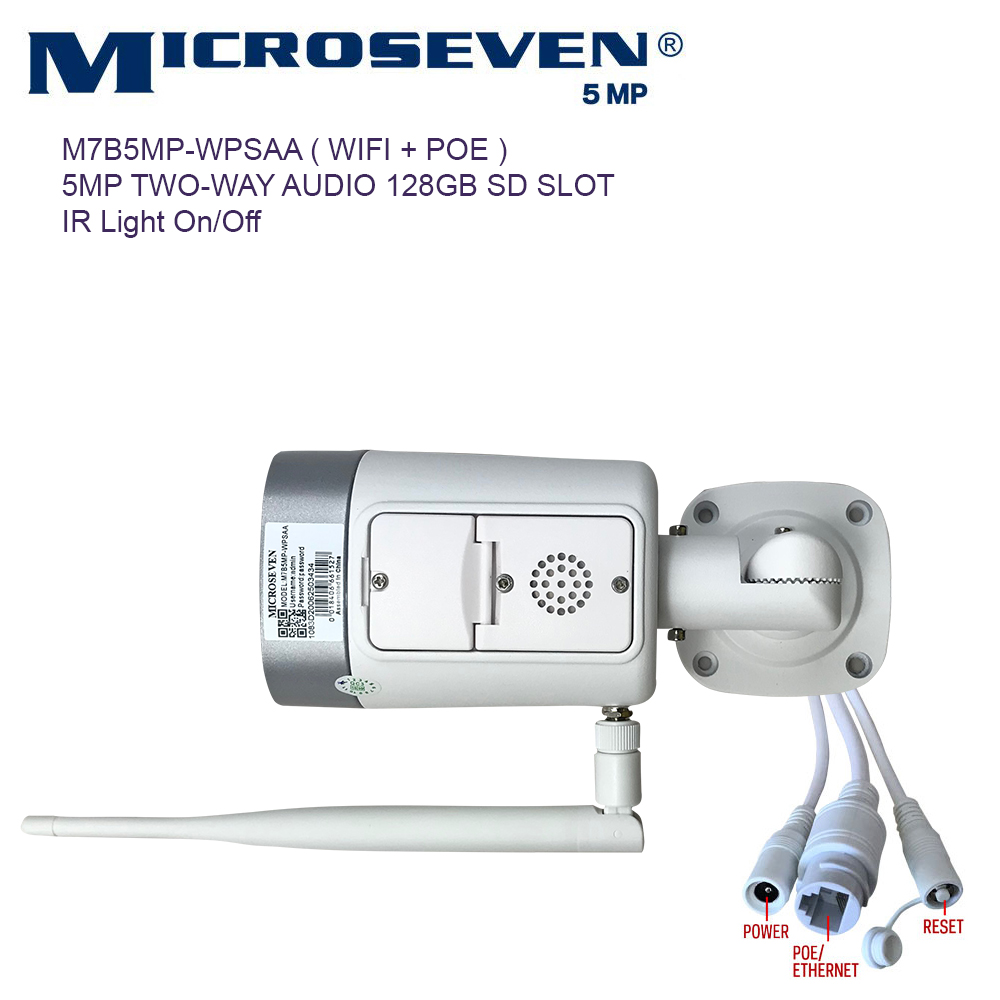

 Model: M7B5MP-WPSAA

  • 24/7 Live Streaming
  • Image Setting: Flip, Rotation, Brightness, Saturation, Contrast, Hue,Sharpness, Exposure value
  • Alert notifications: on phone and email with snapshot photos
  • FTP: Send images & Video Clips to an FTP Server
    1. FTP alert clip
    2. FTP on-demand photo
    3. RTSP open source
  • Recording on Microseven Storage(M7 Cloud), PC, NAS/NVR
  • Two-way Audio: Built-in Amplified Microphone and Speaker
  • Image Sensor: SONY 1/2.8" Progressive CMOS
  • Resolution: 5MP 2560(H)x1920(V)
  • Shutter:1/5~1/10000s
  • Minimum Illumination: Color 0.03lux @ F1.2(AGC ON)
  • SD storage: Built-in SD Card Drive Upto 128 GB
  • Max IR LEDs Wave Length: 65 ft / 20m
  • Day & Night: IR cut filter with auto switch
  • Software IR light on / off switch
  • Auto / Manual Gain Control
  • Alert Zones: Up to 4 smart zones
  • Lens: Fixed Lens 5MP 3.6mm
  • Max Aperture: F1.4
  • Angle of View: 95°
  • Mount Type: Board-in Type
  • Video Compression: H.264/H.265
  • Frame Rate: 1~30 frame per second (Primary Stream: 2560x1920, 2560x1440, Secondary Stream: 800x600, 640x480)
  • Video Bit Rate: 32Kbps~8192Kbps
  • Network: WiFi (IEEE 802.11 b/g/n) / Power Over Ethernet (IEEE 802.3af POE) / Ethernet RJ45(10/100Base-T)
  • Wireless Security: WEP & WPA/WPA2 Encryption
  • Protocol: TCP/IP Internet included video port of RTSP
  • System Compatibility: ONVIF profile v2.0 up.
  • OSD: On-Screen Display is ready.
  • Maximum User Access: 12 devices accessing directly in the same time
  • Power Supply: 12V DC
  • Power consumption: <6W
  • Environment Temperature: -10C ~ +60C; 10% ~ 90%
  • Weather Proof: IP66 weather proof
  • Dimensions: 4 in x 4 in x 3.5 in
  • Weight: 12.5 oz
  • Installtion Enviornment: Outdoor / Indoor

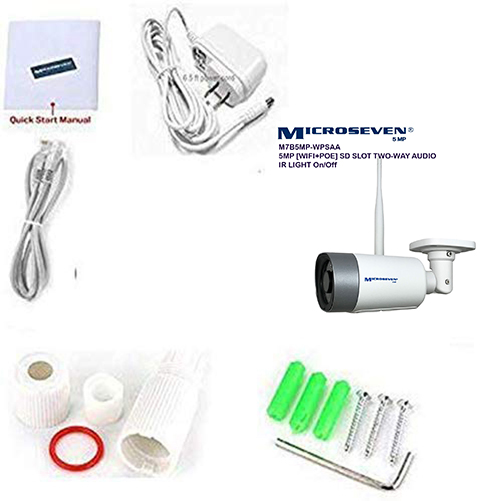

Package:

1x M7B5MP-WPSAA
1X 5db Antenna
1x 3 ft Network Ethernet cable ( yellow or white )
1x Quick Start Manual
1x Bag of Screws
1x Waterproof cap for network cable
1x Power Adaptor ( power cord 6.5ft)

Tech Specs

Model



M7B5MP-WPSAA

24/7 Live Streaming



Yes

Alert On Phone



Alert notifications on phone and email with snapshot photos.

Record On Cloud (new)



Recording on M7 AWARE, PC, NAS/NVR & SD card.



Image Sensor



SONY 1/2.8" chipset CMOS sensor.

Effective Pixels



2560x1920

Scanning System



Progressive

Electronic Shutter Speed



Auto/Manual 1/3~1/10000

Minimum Illumination



0.005 Lux; 0 Lux when IR led is on.

S/N Ratio



50dB

Built-in SD Card Drive



microSD card capacity up to 128 GB.

Two-Way Audio



Yes ( Built-in amplified microphone and speaker )

Max IR LEDs Wave Length



100 ft

IR Cut Filter



Auto (IR-Cut Filter built-in) with Color / Black / White.

Auto Iris



Yes

Backlight Compensation



BLC

White Balance



Auto

Gain Control



Auto / Manual

Noise Reduction



2D

Alert Zones



Up to 4 smart zones




Fixed Lens



5MP 3.6mm

Max Aperture



F1.4

Angle of View



95

Mount Type



Board-in Type




Compression



H.265/H.264

Resolution



2560x1920 pixels

Frame Rate



1~30 frame per second

Bit Rate



32K ~ 8192 Kbps




Wireless (WiFi)



IEEE 802.11 b/g/n

Wireless Security



WEP & WPA/WPA2 Encryption

Power Over Ethernet



IEEE 802.3af POE

Ethernet



RJ45 (10/100 Base-T)

Protocol



TCP/IP Internet included video port of RTSP

ONVIF



ONVIF profile v2.0 up.

OSD



Yes, On-Screen Display is ready.

Maximum User Access



12 devices accessing directly in the same time




Power Supply



12V DC, power consumption 4 Watts.

Environment Temperature



-10C ~ +60C; 10% ~ 90%

Weather Proof



Yes, IP66 weather proof.

Dimensions



4 in x 4 in x 3.5 in

Weight



12.5 oz

Installtion Enviornment



Outdoor / Indoor

Quick WiFi Configuration



  • Download ‘Microseven’ App from App Store or Google Play.
  • Power on the camera and connect the camera to the Ethernet cable.
  • Run App, tap ‘+’ and select ‘Search Camera from LAN’ add camera.
  • After the camera is added, tap the setting button and choose the WiFi Setting, input your WiFi password to finish the wifi setting.Wait for 30 seconds,then disconnect the ethernet cable, camera will work wirelessly.
