5MP Camera Live Stream Video
New (2019) Human Motion Detection Reduce 90% false alert caused by insects rain snow bush and vehicles!
Professional Home Security Solution Provide Most Patent Customizable Configuration Features In The Camera Firmware
- Microseven HD 5MP (2560x1920) Outdoor WiFi Bullet IP Security Camera with Built-in Microphone & Speaker IR Night Vision Motion Detection Waterproof
- Microseven offers exceptional video quality and audio with Sony Newer Chip, help you keep a watchful eye on your home or business at anytime, from anywhere. Fully compatible connectivity, works over Wi-Fi, Ethernet

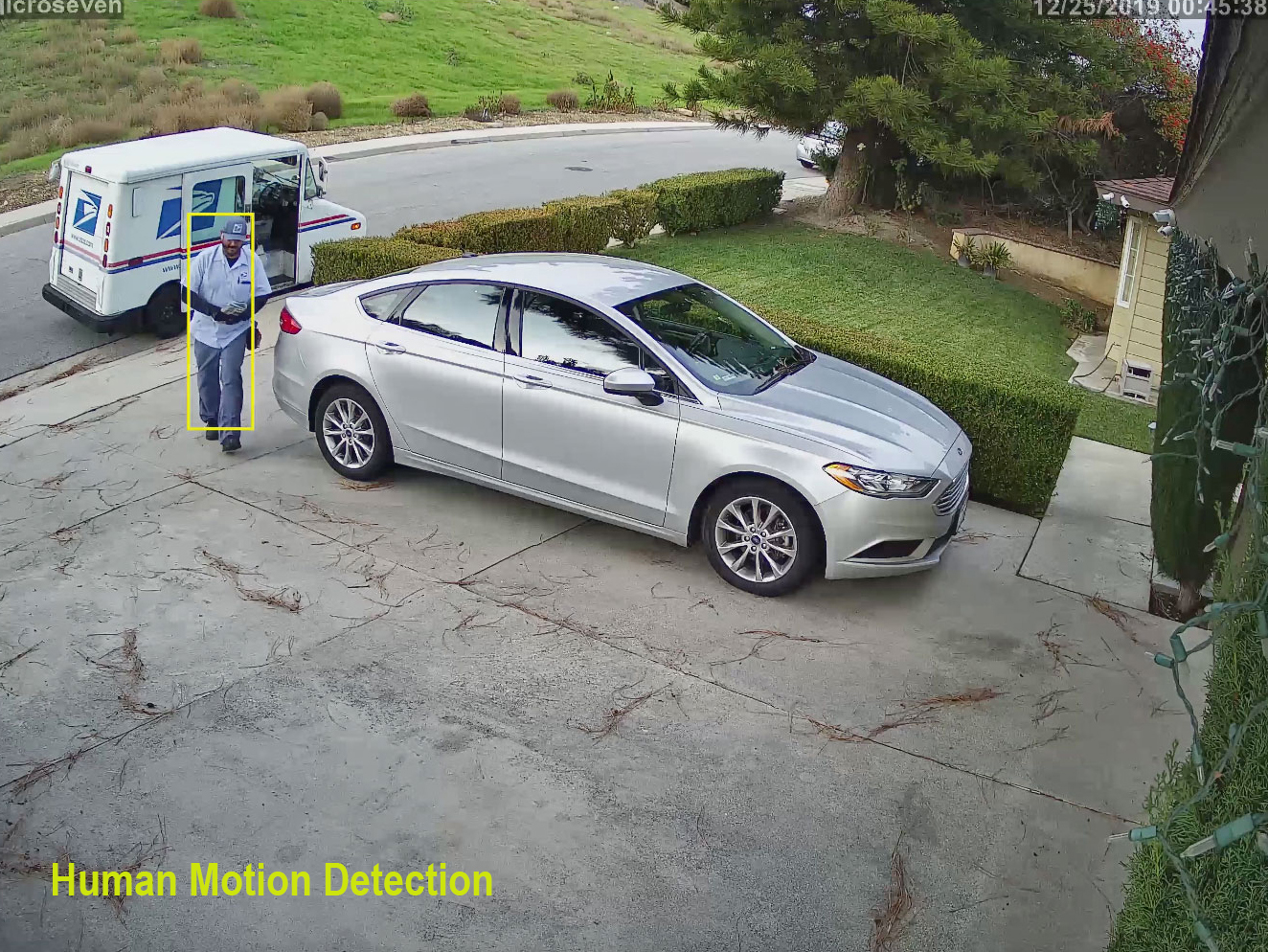

- Human Motion Detection Alerts: With intelligent human detection is able to specifically detect moving people and send you real-time alerts through Email or App. Reduce false alert caused by light change,insects,rain snow bush vehicles. Push notifications to your mobile phone with video clips, send email notification with images when motion is detected, the camera also can do FTP to send video clips and images to an FTP server. View and playback from your phone / pad / PC anytime anywhere
- Intelligent Human-only/Motion Detection and Alert Notification: You can choose the model of human-only detection or the motion detection. The human detection can intelligently identify the human in the video, and only detects human. The motion detection model will detect everything moving, including human, animals, failing leaves, flying birds. In comparison, human detection can reduce many false alarms. If you cannot find the human detection, please download the firmware to upgrade the APP.
Built-in Web Server allows you to remote View and Playback from PC, Smartphone or Tablet.

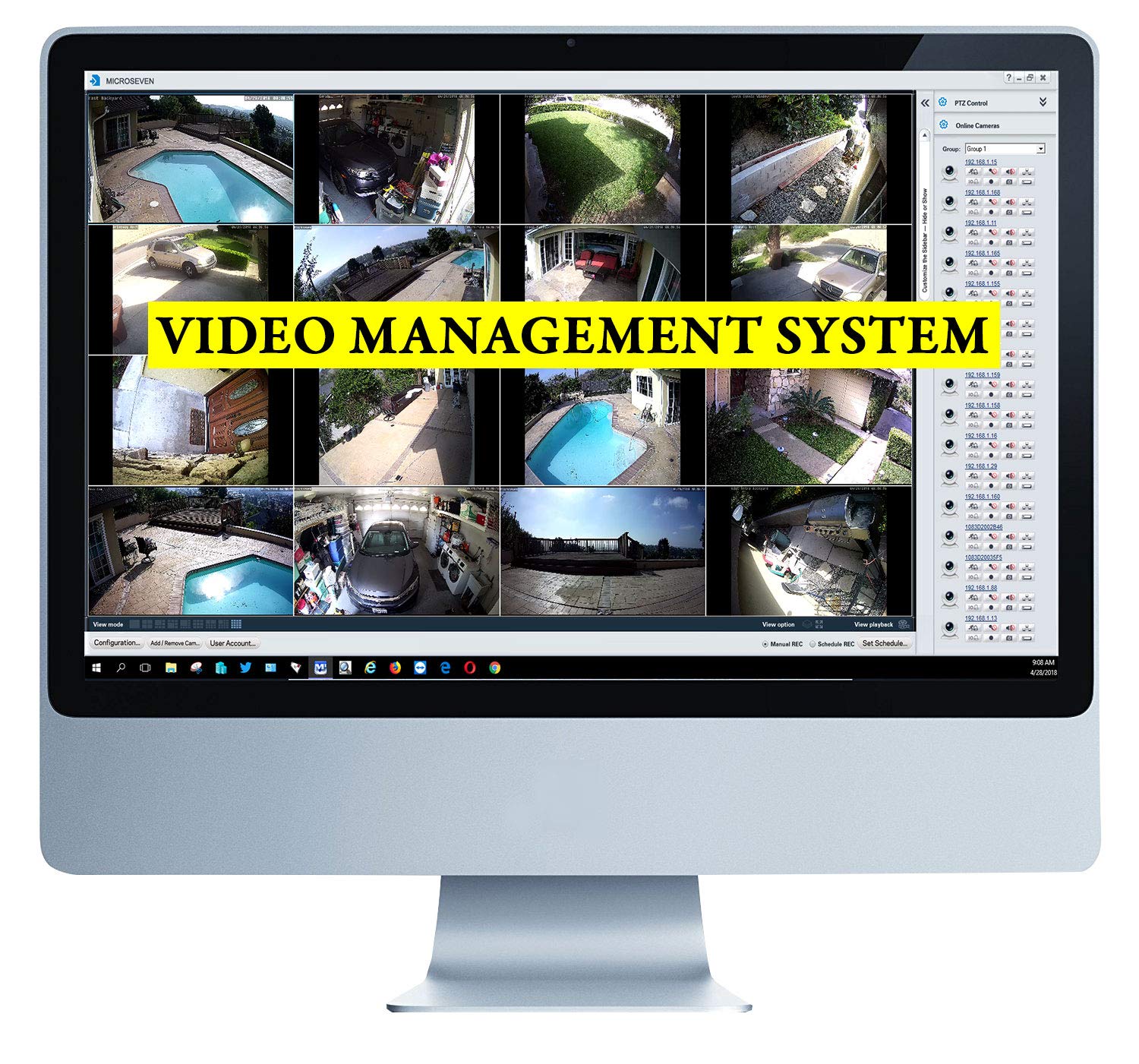

Microseven Also provides Desktop App - VMS (Video management system / video management sofware / video management server) up to 16 Cameras on one screen:
- Collects video from cameras
- Records / stores that video to a storage device
- Provides an interface to both view the live video, and access recorded video
All Microseven cameras have been open sourced and are flawlessly accessible via Blue Iris software as well as the third party software, iOS or Android App.
There is no limit as to how many cameras that can be added to the Microseven Cloud site for them to work with Alexa.
Microseven cameras not only provide a beautiful and crisp picture, they are extremely flexible in their setup and compatibility!
High Resolution 5-Megapixel Ultra High Definition Video for Excellent Quality and Clarity
The built-in microphone and high-power speaker allows you View, Listen & Talk back with just a touch Via Phone, Tablet, or Computer
Support RTSP, Compatible with Any Media Player.
Quick WiFi Configuration
- Download ‘Microseven’ App from App Store or Google Play.
- Power on the camera and connect the camera to the Ethernet cable.
- Run App, tap ‘+’ and select ‘Search Camera from LAN’ add camera.
- After the camera is added, tap the setting button and choose the WiFi Setting, input your WiFi password to finish the wifi setting.Wait for 30 seconds,then disconnect the ethernet cable, camera will work wirelessly.

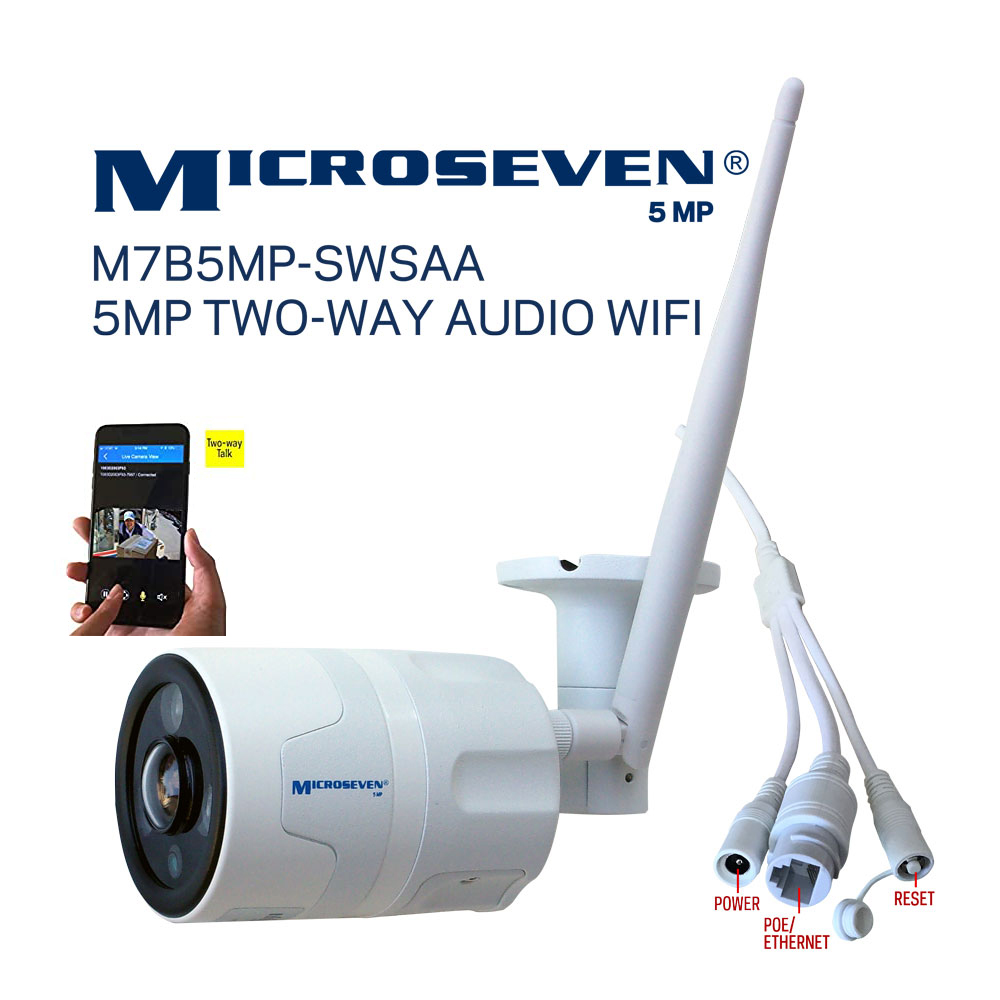

Model: M7B5MP-SWSAA
- 24/7 Live Streaming
- Image Setting: Flip, Rotation, Brightness, Saturation, Contrast, Hue,Sharpness, Exposure value

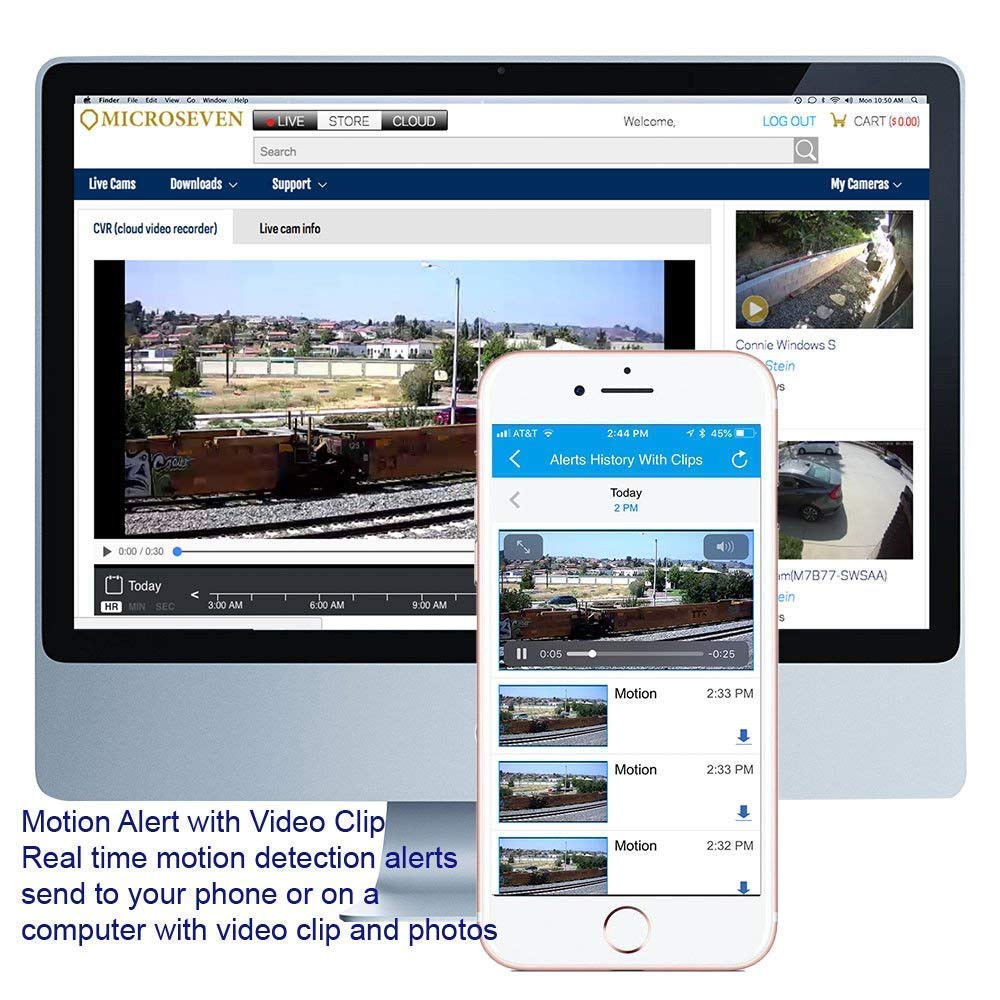

- Alert notifications: on phone and email with snapshot photos
- FTP: Send images & Video Clips to an FTP Server
1. FTP alert clip
2. FTP on-demand photo
3. RTSP open source
- Recording on Microseven Storage(M7 Cloud), PC, NAS/NVR
- Two-way Audio: Microphone built-in and speakers built-in
- Image Sensor: SONY 1/2.8" Progressive CMOS
- Resolution: 5MP 2560(H)x1920(V)
- Shutter:1/5~1/10000s
- Minimum Illumination: Color 0.03lux @ F1.2(AGC ON)
- SD storage: Built-in SD Card Drive Upto 128 GB
- Max IR LEDs Wave Length: 65 ft / 20m
- Day & Night: IR cut filter with auto switch
- Auto / Manual Gain Control
- Alert Zones: Up to 4 smart zones
- Lens: Fixed Lens 5MP 1.7mm
- Max Aperture: F1.4
- Angle of View: 170
- Mount Type: Board-in Type
- Video Compression: M7
- Frame Rate: 1~30 frame per second (Primary Stream: 2560x1920, 2560x1440, Secondary Stream: 800x600, 640x480)
- Video Bit Rate: 32Kbps~8192Kbps
- Network: Wireless (WiFi) IEEE 802.11 b/g/n / DC 12V (Ethernet RJ45)
- Wireless Security: WEP & WPA/WPA2 Encryption
- Protocol: TCP/IP Internet included video port of RTSP
- System Compatibility: ONVIF profile v2.0 up.
- OSD: On-Screen Display is ready.
- Maximum User Access: 12 devices accessing directly in the same time
- Power Supply: 12V DC
- Power consumption: <6W
- Environment Temperature: -10C ~ +60C; 10% ~ 90%
- Weather Proof: IP66 weather proof
- Dimensions: 4 in x 4 in x 3.5 in
- Weight: 12.5 oz
- Installtion Enviornment: Outdoor / Indoor

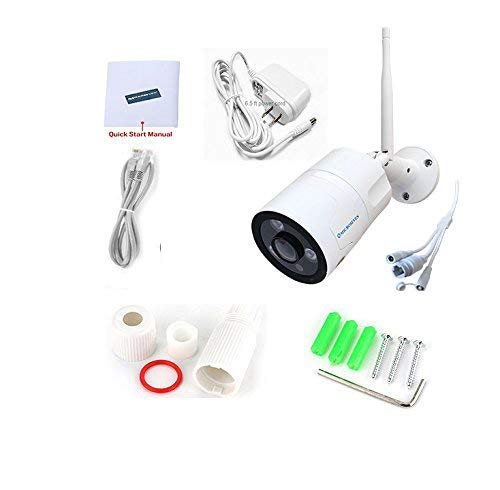

Package:
1x M7B5MP-SWSAA
1X 5DB Antenna
1x Power Adaptor ( power cord 6.5ft )
1x 3 ft Network Ethernet cable ( yellow or white )
1x Quick Start Manual
1x Bag of Screws
1x Waterproof cap for network cable
