Microseven UltraHD 5MP 2560x1920 PoE 2 Two-Way Audio,Alexa,Wide Angle,SD Slot,Outdoor Night Vision Bullet Security Waterproof IP Camera, H.265 Human Motion Detection,FTP,Cloud,Web GUI, Apps+ VMS,ONVIF

5MP Camera Auto Tracking from microseven on Vimeo.



New (2019) Human Motion Detection Reduce 90% false alert caused by insects rain snow bush and vehicles!


Professional Home Security Solution Provide Most Patent Customizable Configuration Features In The Camera Firmware


Microseven HD 5MP (2560x1920) Outdoor POE Bullet IP Security Camera with Built-in Microphone & Speaker IR Night Vision Motion Detection Waterproof

Microseven offers exceptional video quality and audio with Sony Newer Chip, help you keep a watchful eye on your home or business at anytime, from anywhere. Fully compatible connectivity,works power over the ethernet , Ethernet. A 12VDC input is available, if you don't want to use PoE.

Built-in Web Server allows you to remote View and Playback from PC, Smartphone or Tablet.

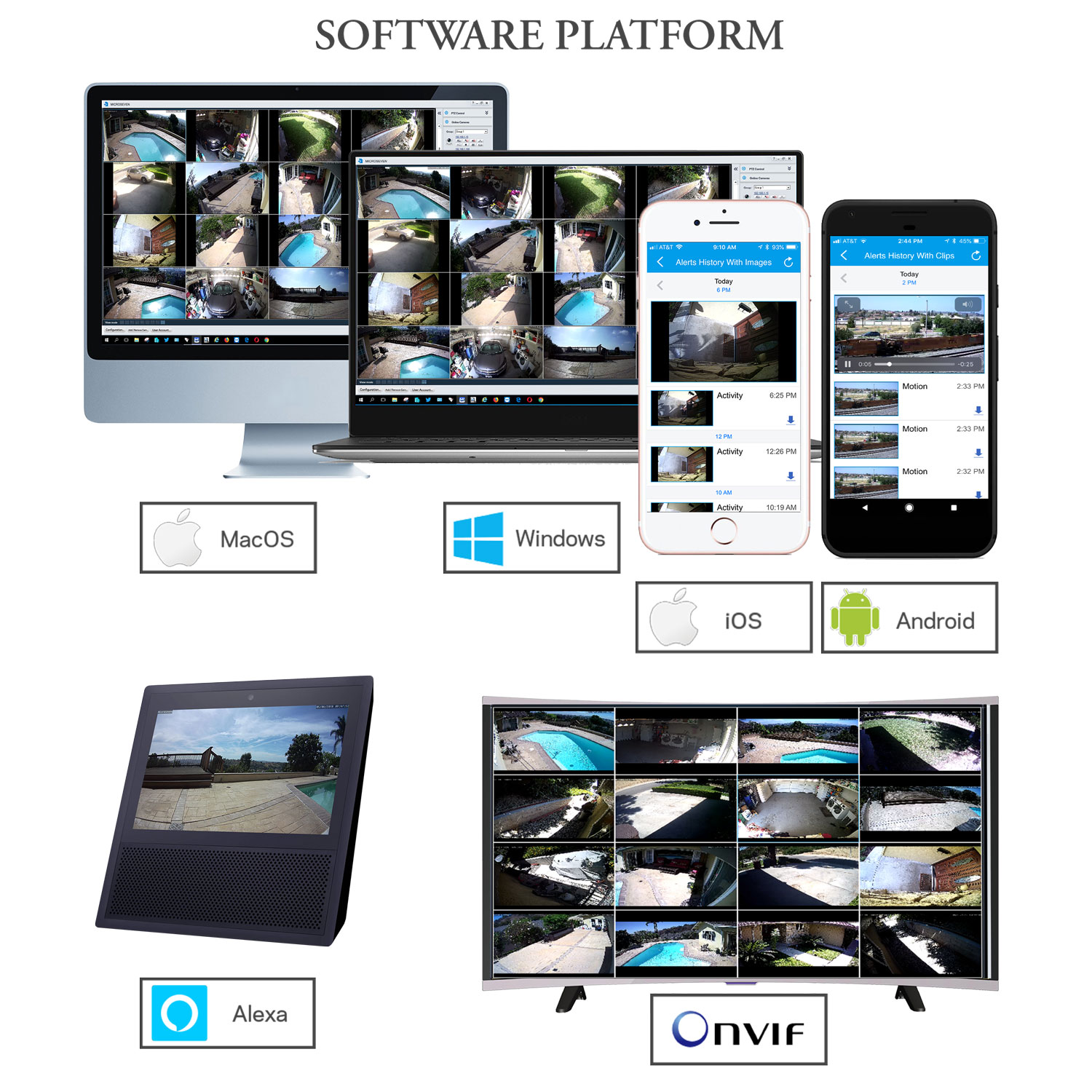

Microseven Also provides Desktop App - VMS (Video management system / video management sofware / video management server) up to 16 Cameras on one screen:

  • Collects video from cameras
  • Records / stores that video to a storage device
  • Provides an interface to both view the live video, and access recorded video



All Microseven cameras have been open sourced and are flawlessly accessible via Blue Iris software as well as the third party software, iOS or Android App.

There is no limit as to how many cameras that can be added to the Microseven Cloud site for them to work with Alexa.

Microseven cameras not only provide a beautiful and crisp picture, they are extremely flexible in their setup and compatibility!

The built-in microphone and high-power speaker allows you View, Listen & Talk back with just a touch Via Phone, Tablet, or Computer


High Resolution 5-Megapixel Ultra High Definition Video for Excellent Quality and Clarity

H.265 Main profile, MP4 Format, Support RTSP, Compatible with Any Media Player.

A.I.Human Motion Detection Alerts: With intelligent human detection is able to specifically detect moving people and send you real-time alerts through Email or App. Reduce false alert caused by light change,insects,rain snow bush vehicles. Push notifications to your mobile phone with video clips, send email notification with images when motion is detected, the camera also can do FTP to send video clips and images to an FTP server. View and playback from your phone / pad / PC anytime anywhere

Intelligent Human-only/Motion Detection and Alert Notification: You can choose the model of human-only detection or the motion detection. The human detection can intelligently identify the human in the video, and only detects human. The motion detection model will detect everything moving, including human, animals, failing leaves, flying birds. In comparison, human detection can reduce many false alarms. If you cannot find the human detection, please download the firmware to upgrade the APP.

Tech Specs

Model



M7B5MP-POESAA

24/7 Live Streaming



Yes

Alert On Phone



Alert notifications on phone and email with snapshot photos.

Record On Cloud (new)



Recording on M7 AWARE, PC, NAS/NVR & SD card.



Image Sensor



SONY chipset CMOS sensor.

Effective Pixels



2560x1920

Scanning System



Progressive

Electronic Shutter Speed



Auto/Manual 1/3~1/10000

Minimum Illumination



0.005 Lux; 0 Lux when IR led is on.

S/N Ratio



50dB

Built-in SD Card Drive



microSD card capacity up to 128 GB.

Two-Way Audio



Yes ( Built-in microphone and speaker )

Max IR LEDs Wave Length



65 ft

IR Cut Filter



Auto (IR-Cut Filter built-in) with Color / Black / White.

Auto Iris



Yes

Backlight Compensation



BLC

White Balance



Auto

Gain Control



Auto / Manual

Noise Reduction



2D

Alert Zones



Up to 4 smart zones




Fixed Lens



5MP 1.7mm

Max Aperture



F1.4

Angle of View



120~170

Mount Type



Board-in Type




Compression



H.265/H.264

Resolution



2560x1920 pixels

Frame Rate



1~30 frame per second

Bit Rate



32K ~ 8192 Kbps




Wireless (WiFi)



No

Wireless Security



No

Power Over Ethernet



IEEE 802.3af POE

Ethernet



RJ45 (10/100 Base-T)

Protocol



TCP/IP Internet included video port of RTSP

ONVIF



ONVIF profile v2.0 up.

OSD



Yes, On-Screen Display is ready.

Maximum User Access



12 devices accessing directly in the same time




Power Supply



No

Environment Temperature



-10C ~ +60C; 10% ~ 90%

Weather Proof



Yes, IP66 weather proof.

Dimensions



4 in x 4 in x 3.5 in

Weight



12.5 oz

Installtion Enviornment



Outdoor / Indoor

  • Built-in Web Server allow you to remote View & Playback from PC, Smartphone or Tablet. Also provides Desktop App-VMS (Video management system /video management software /video management server) up to 16 Cameras on one screen. 5MP HD 2560x1920 with Sony CMOS Sensor, 5MP 1.7mm lens provides 170° Wide-Angle, Night vision up to 50ft. Universal ball mount delivers clarity in every direction. Working over POE 802.3af or Wired, all metal casing IP66 rating waterproof
  • Microphone & Speaker Built-in: The built-in microphone and high-power speaker allows you Listen & Talk back with just a touch via phone, tablet with M7 App and PC with M7 Software. ( Note: Only Microseven Camera Apps & Microseven Software support Two-Way Audio! DO NOT SUPPORT ANY NVR APPS OR SOFTWARE FOR TWO-WAY AUDIO )
  • Free 24Hr Cloud Storage for All Microseven Cameras & 128GB MicroSD Card Storage: Camera can record video on M7 cloud download to your phone, record video to the computer, SD Card (Up to 128GB), hard disk drive and NVR. Allows 4 motion alerts zones selected to prevent the false alerts. It can share live stream as webcam and broadcasting to YouTube, Facebook, Microseven.tv with no charge!
  • A.I.Human Motion Detection Alerts: With intelligent human detection is able to specifically detect moving people and send you real-time alerts through Email or App. Reduce false alert caused by light change,insects,rain snow bush vehicles. Push notifications to your mobile phone with video clips, send email notification with images when motion is detected, the camera also can do FTP to send video clips and images to an FTP server. View and playback from your phone / pad / PC anytime anywhere
  • Standard ONVIF POE Camera: Work with Microseven NVR, any Onvif NVR or 3rd Party Software like Milestone, Blue Iris, and NAS, ZoneMinder. Microseven provides free software for Windows, MacOS and free app for iOS and Android also provide most potent customizable configuration features in the camera Firmware. Quick setup via iOS or Android device via M7 App, Or PC via M7 Software

Model: M7B5MP-POESAA

  • 24/7 Live Streaming
  • Image Setting: Flip, Rotation, Brightness, Saturation, Contrast, Hue,Sharpness, Exposure value
  • Alert notifications: on phone and email with snapshot photos
  • FTP: Send images & Video Clips to an FTP Server
    1. FTP alert clip
    2. FTP on-demand photo
    3. RTSP open source
  • Recording on Microseven Storage(M7 Cloud), PC, NAS/NVR
  • Two-way Audio: Microphone built-in and speakers built-in
  • Image Sensor: SONY 1/2.8" Progressive CMOS
  • Resolution: 5MP 2560(H)x1920(V)
  • Shutter:1/5~1/10000s
  • Minimum Illumination: Color 0.03lux @ F1.2(AGC ON)
  • SD storage: Built-in SD Card Drive Upto 128 GB
  • Max IR LEDs Wave Length: 65 ft / 20m
  • Day & Night: IR cut filter with auto switch
  • Auto / Manual Gain Control
  • Alert Zones: Up to 4 smart zones
  • Lens: Fixed Lens 5MP 1.7mm
  • Max Aperture: F1.4
  • Angle of View: 170
  • Mount Type: Board-in Type
  • Video Compression: H.264/H.265
  • Frame Rate: 1~30 frame per second (Primary Stream: 2560x1920, 2560x1440, Secondary Stream: 800x600, 640x480)
  • Video Bit Rate: 32Kbps~8192Kbps
  • Network: Power over Ethernet (IEEE 802.3af POE) / Etherne RJ45 (10/100 Base-T). A 12VDC input is available, if you don't want to use PoE.
  • Protocol: TCP/IP Internet included video port of RTSP
  • System Compatibility: ONVIF profile v2.0 up.
  • OSD: On-Screen Display is ready.
  • Maximum User Access: 12 devices accessing directly in the same time
  • Power Supply: 12V DC
  • Power consumption: <6W
  • Environment Temperature: -10C ~ +60C; 10% ~ 90%
  • Weather Proof: IP66 weather proof
  • Dimensions: 4 in x 4 in x 3.5 in
  • Weight: 12.5 oz
  • Installtion Enviornment: Outdoor / Indoor
Package:

1x M7B5MP-POESAA
1x 3 ft Network Ethernet cable ( yellow or white )
1x Quick Start Manual
1x Bag of Screws
1x Waterproof cap for network cable
