Microseven Open Source HD 960p 1/3" Aptina CMOS 3MP 2.8mm Lens Wide Angle Plug and Play IP Dome Camera IR Indoor / Outdoor-Compatible with Onvif NVR, Free Cloud and Free Live Streaming on microseven.tv + POE Splitter

Microseven Open Source HD 960p 1/3" Aptina CMOS 3MP 2.8mm Lens Wide Angle Plug and Play IP Dome Camera IR Indoor / Outdoor-Compatible with Onvif NVR, Free Cloud and Free Live Streaming on microseven.tv + POE Splitter 1280x960p / M7D12-EXPOE

$49.99 Sale $89.99 Price $99.99 List Price You Save: $50.00 (50.01%)
ITEM# M7D12-EXPOE
UPC 018406658220
STATUS Available

Free 24hrs video history in cloud video recorder for your backup!

Providing 24-hour motion event recording and 24 hours of retrievable playback history anywhere, on any device, at any time!

Add your camera on microseven.tv to enjoy and share your Live Video with family, friends, and clients - at no additional cost!


MSE (Microseven Stream Engine (tm) LIVE is ready, it can stream live video to your website and anywhere.

Software:
Motion detection, FTP, Email, snapshot capture, ONVIF, Web server built-in for IE, Firefox, Chrome and Safari , Microseven software for multiple cameras at one screen, applied for Windows, Mac OS X, iOS, and Android. Software is ONVIF compliant. Peer to peer network is ready. [Cloud recording will be available].



Feature:



      1. 1/3" Aptina CMOS



      2. H.264 Triple Streaming encoding, 960P(1280*960)



      3. Embedded Linux System , Microseven App free for Windows, iOS, Mac OS X and Andriod, Remote Setup



      4. Lens: 3MP 2.8 mm ( 90° angle at 10ft FOV /field of view )



      5. Day & Night(ICR) auto-switch, 24Pcs LEDs IR 20m



      6. Image snapshot, Title OSD, Free DDNS, Free Peer to Peer (No Port Forwarding), Free Email and FTP Sent Image Snapshot and Motion Detection Triggered Sent Image Snapshot



      7. Free Apps for iPhone/iPad/Android Smart Phone



      8. Multiple users online simultaneously



      9. Free Microseven CMS Software



      10. P2P function , easy remote monitoring



      11. Onvif 2.0 version Compliant



      12. Image Controls: Brightness, Saturation, Contrast, Hue Adjustable



      13.Smart Phone Free Apps: iPhone, iPad, Android



      14.High Quality Rust Proof Weatherproof All Metal Hardware, IP66 Rating (water and dust proof)



Functions:



      • Network protocol: TCP/IP UDP RTP RTSP RTCP HTTP DNS DDNS DHCP FTP NTP PPPOE SMTP UPNP



      • ONVIF protocols: Support 2.0 Version



      • Remote View: Microseven Apps



      • Network Interface: 10/100M BASE-TX,RJ-45 connector



General Specifications:



      • Operating Temperature: -20 °C ~ 50 °C (-4 °F ~ 122 °F)



      • Operating Humidity: 0% -85% RH



      • Power: DC12V 1.5A



    • Power Consumption: 9W (MAX)

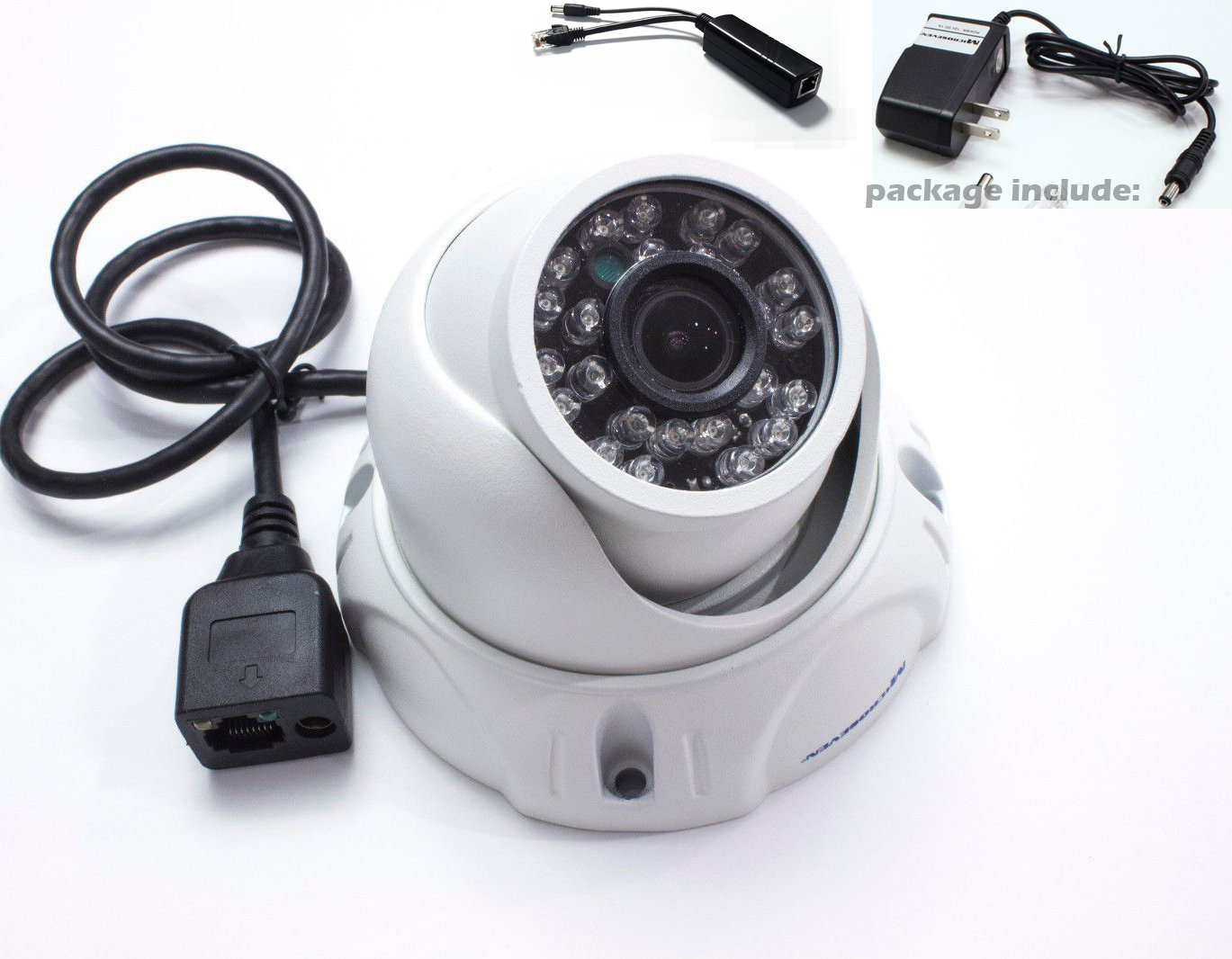

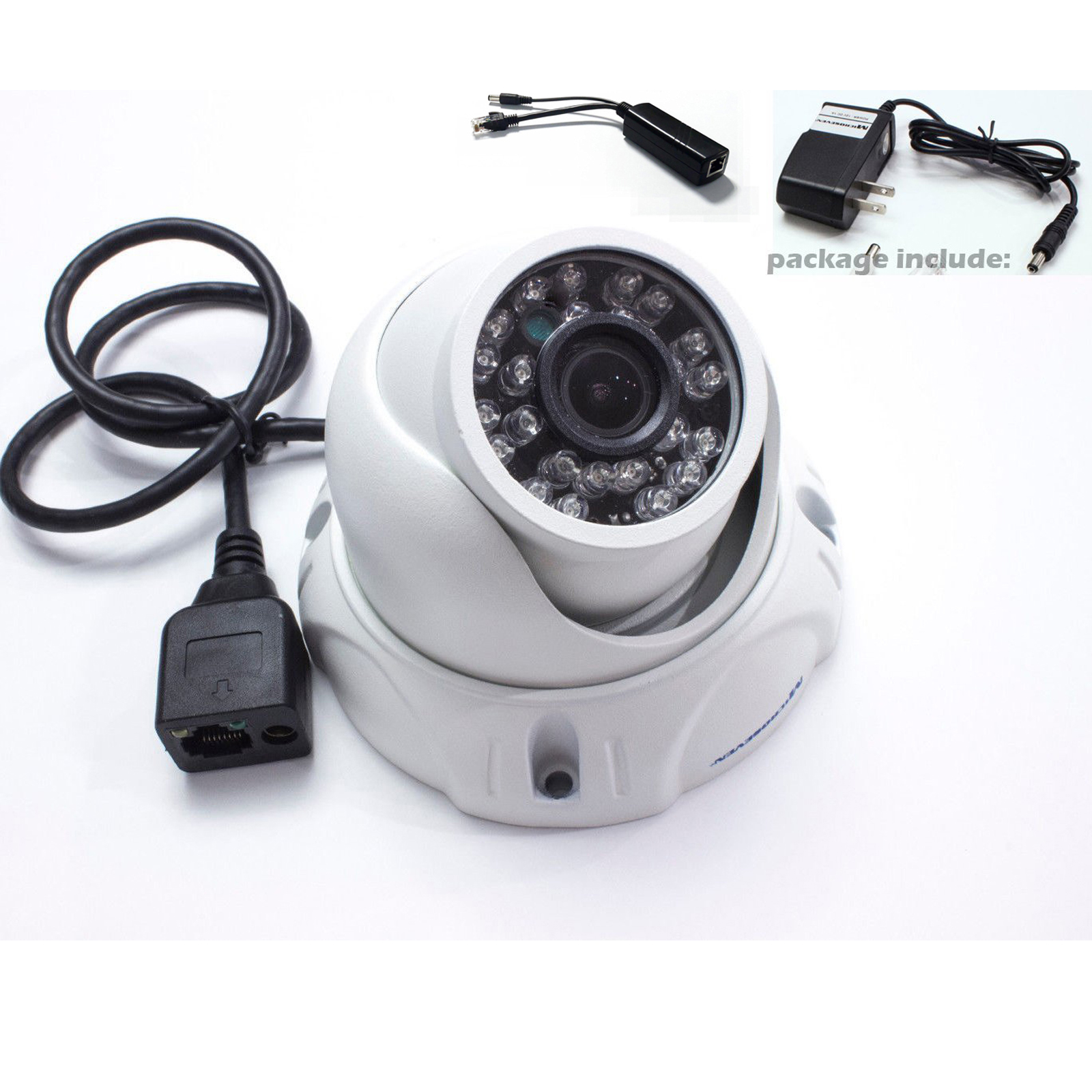

Package included:

1. Microseven M7D12 IP camera with Build-in Mount Bracket
2. Power supply 12V DC 1A
3. POE Splitter
4. One year manufacturer warranty
5. Software updates downloadable from microseven.com.

ip camera outdoor, camera ip, ip cam, ip camera hd, ip camera 960p, Outdoor ip camera, Kamera ip hd, Kamera 960p HD, ip camera 960p HD



Camera
Image sensor 1/3" 1.3 Megapixel Aptina CMOS
Effective Pixels 1280x960
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3~1/10000

Minimum Illumination

Color: 0.1Lux; Black/White: 0.005Lux/F1.4, 0Lux (IR on)

S/N Ratio

> 50dB
Camera Features
Max IR LEDs Length 20m
Day / Night Auto (IR-Cut Filter) / Color / Black / White
Backlight Compensation BLC
White Balance Auto
Gain Control Auto / Manual
Noise reduction 2D
Privacy Masking Up to 4 areas
Lens
Fixed Lens 2.8mm 3MP
Max Aperture F1.4
Angle of View 70 (114/46/35)
Mount Type Board-in Type

Video

Compression H.264
Resolution 1.3M 1280x960 Primary Stream Started from
640x480 Second Stream Started from
320x240 Third Stream Started from
Frame Rate 1~30 frame per second
Bit Rate H.264: 32K ~ 8192 Kbps
Network
Ethernet RJ45 (10/100 Base-T)
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS
ONVIF ONVIF Version 2.0
Maximum User Access 10 Users
Smart Phone iPhone, iPad, Android
General
Power Supply 12V DC
Power Consumption <4W
Working Environment -10C ~ +60C; 10% ~ 90%
Ingress Protection IP66
Dimensions  4 in x 4 in x 3.5 in
Weight  12.5 oz




Additional Information

SKU

M7D12

Camera interface IP
Installation Environment Indoor/ Outdoor
Adjustable Lens Fixed
Brand MICROSEVEN
PoE (Power over Ethernet) Yes, 802.3af (splitter)
Infrared Illumination Distance 65ft / 20m
Input Voltage 12V DC
Auto-Iris No
Vandal-Proof Yes
Weather-Proof Yes, IP66
Optical Zoom No
OSD Yes
WDR (Wide Dynamic Range) No
