Model |

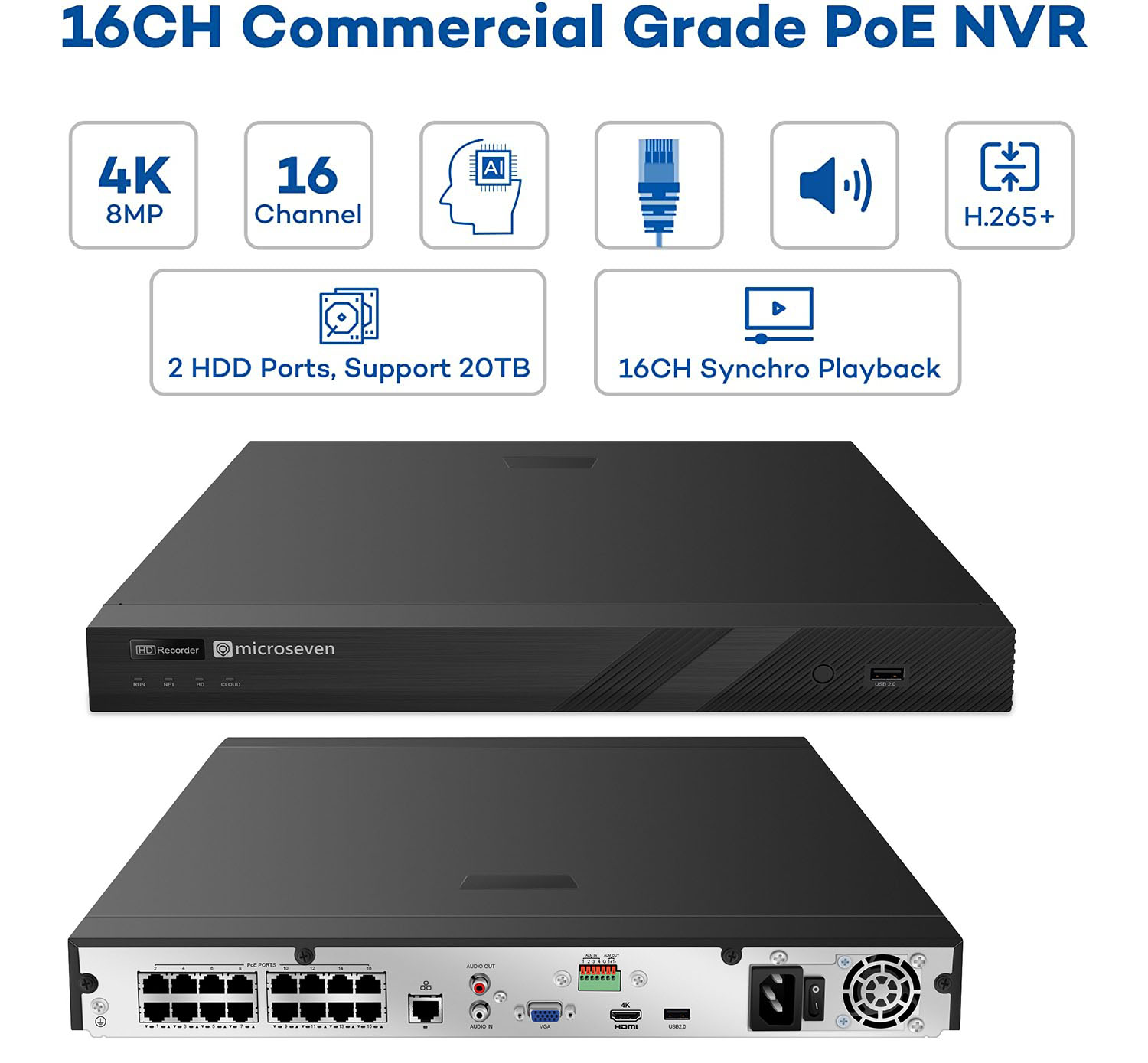

M7NVR-4K16CHPOE |
Video/Audio Input |
IP Video Input |
16-ch |
Two-way Audio Input |
1-ch, RCA |
Network |
Incoming Bandwidth |
112Mbps |
Outgoing Bandwidth |
96Mbps |
Remote Users |
128 |
Protocols |
P2P, UPnP, NTP, DHCP, PPPoE |
Video/Audio Output |
HDMI/VGA Output |
HDMI:
4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
VGA:
1920x1080p/60Hz, 1920x1080p/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
|
Audio Output |
1-ch, RCA |
Recording Resolution |
4K(8MP)/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |

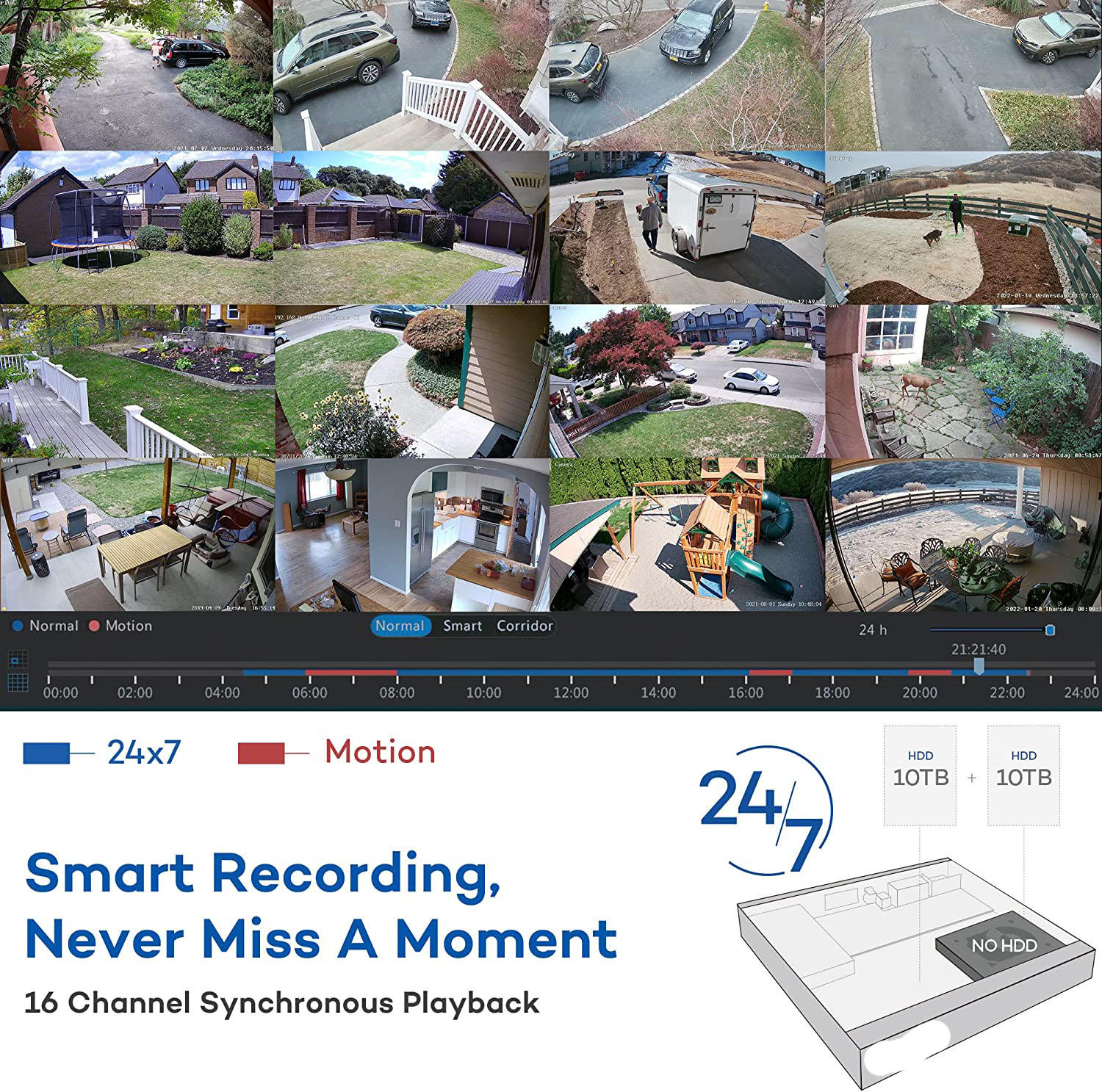

Synchronous Playback |
16-ch |
Corridor Mode Screen |
3/4/5/7/9/10/12/16 |
Decoding |
Decoding format |
Ultra 265/H.265/H.264 |
Liveview/Playback |
4K(8MP)/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
Capability |
1x 4K@30, 1x 6MP@30, 1x 5MP@30, 2x 4MP@30, 2x 4MP@30, 4x 1080p@30, 8x 720p@30, 16x D1 |
Hard Disk |
SATA |
2x SATA interface |
Capacity |
up to 10TB for each disk |
Smart |
VCA Detection |
Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking |
VCA Search |
Face search, Behavior search |
Statistical Analysis |
People counting |

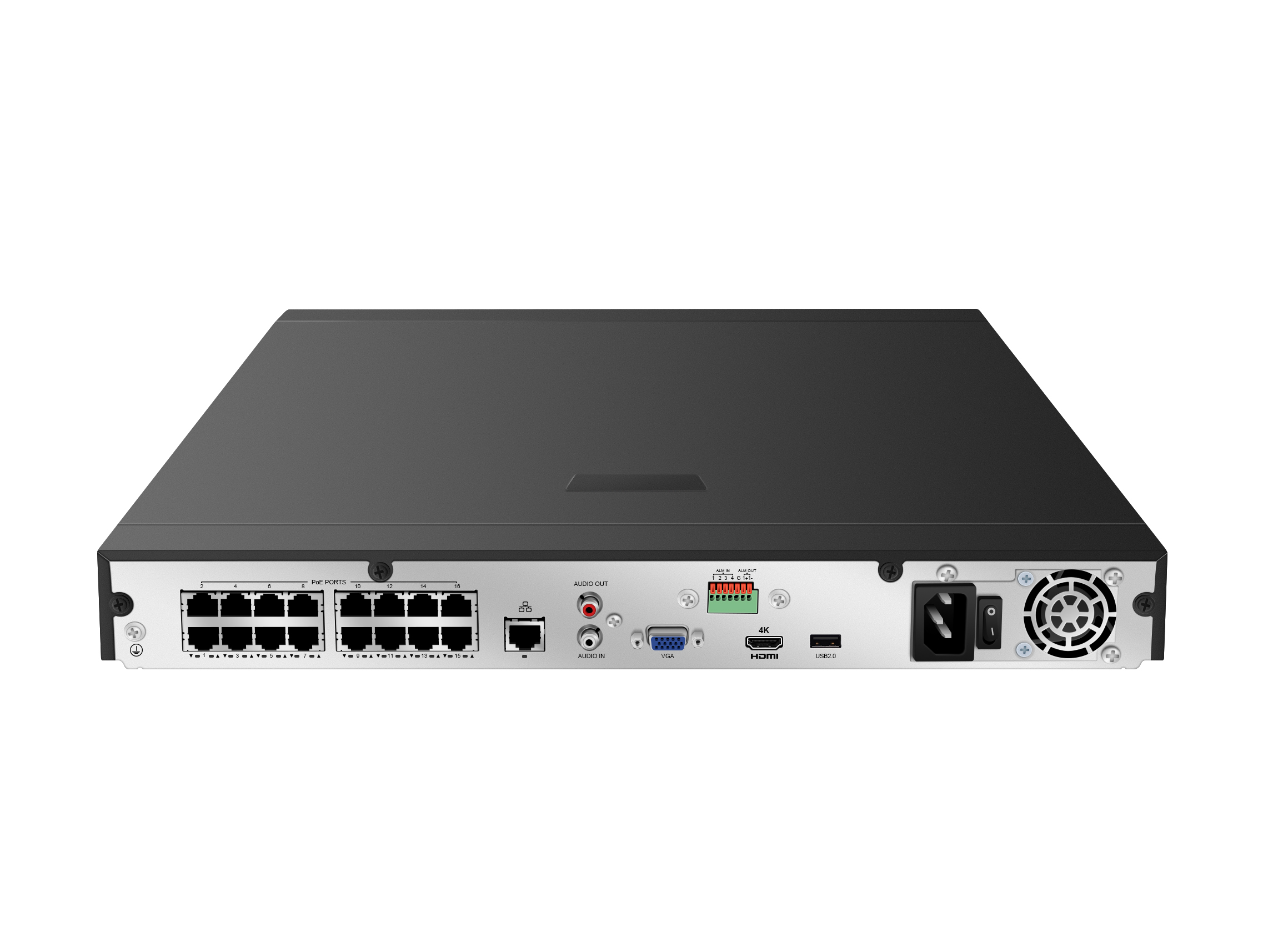

External Interface |
Network Interface |
1x RJ45 10M/100M/1000M self-adaptive Ethernet Interface |
USB Interface |
Front panel: 1 x USB2.0; Rear panel: 1x USB2.0 |
Alarm In |
4-ch |
Alarm Out |
1-ch |

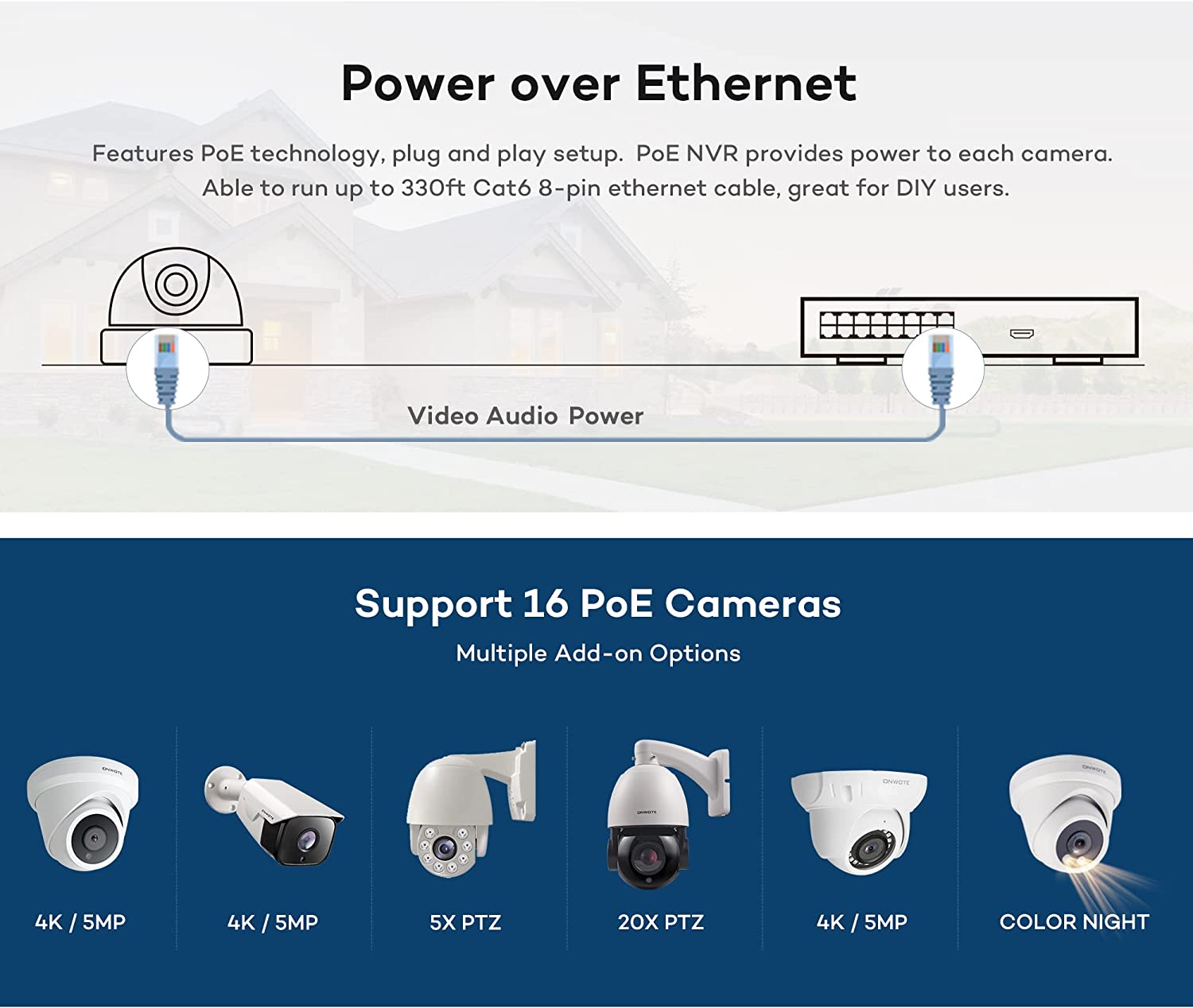

POE |
Interface |
16 independent 100Mbps PoE network interfaces |
Max Power |
Max 30W for single port |
Max 240W in total ( 15W for each |
Support POE Standard |
IEEE 802.3af/at |
General |
Power Supply |
100 ~ 240V AC |
Power Consumption: ≤9 W( without HDD ) |
Working Environment |
-10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing) |
Dimensions (W×D×H) |
380mm × 315mm × 49.1mm (15.0" X 12.4" X 1.9") |
Weight (without HDD) |
≤2.4kg (5.29 lb) |
