Exclusive Pass-Thrumodular plugs for fast, reliable connector installations for data applications. The cable easily passes through the connector for consistent and secure termination. Saves time, trims flush to end face when used with Pass-Thru Modular Crimper, and eliminates wasted materials. These CAT6 connectors are fully compliant with all PoE standards.
- Exclusive Pass-Thru™ Connectors provide fast, reliable connector installations for data applications

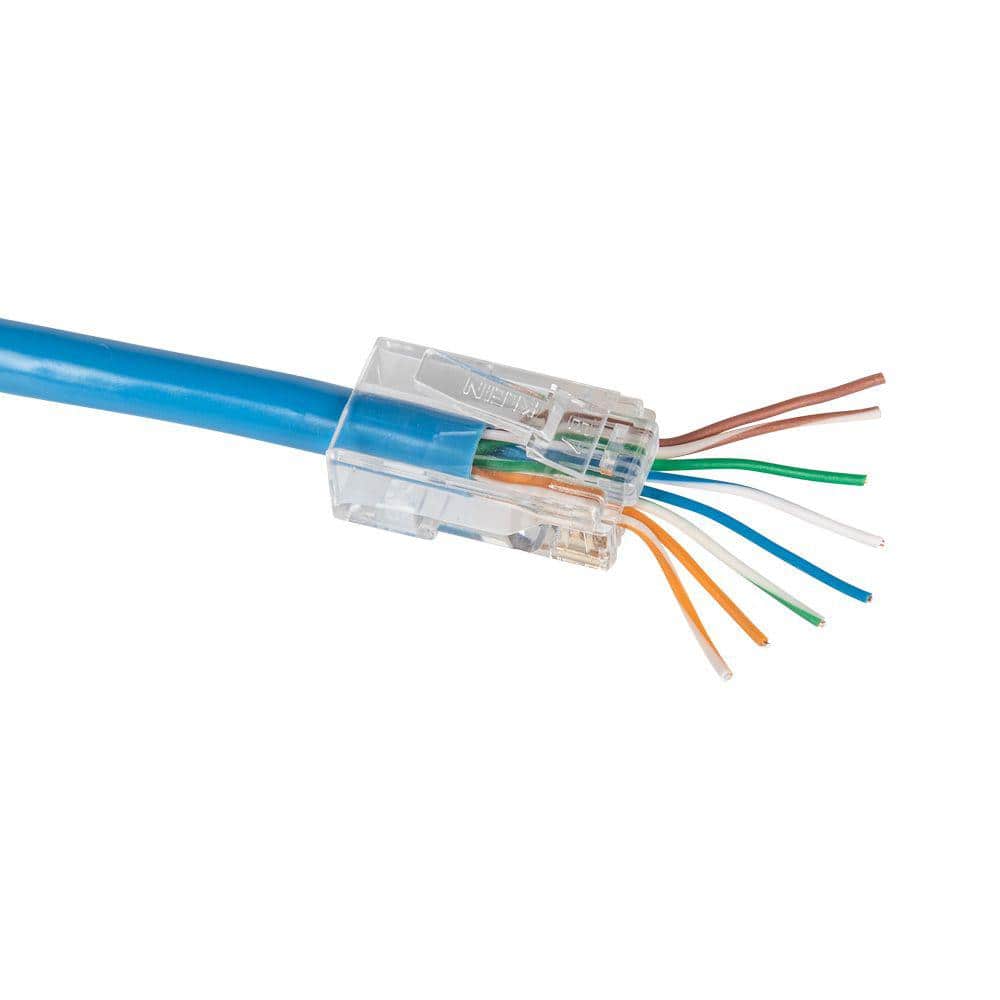

- CAT6 Cable easily passes through the connector to visually ensure that wires are in the correct order for consistent and secure terminations
- 50 µ-inch minimum gold plating on all contact surfaces
- Fully compliant with Power Over Ethernet (PoE and PoE+) standards
- Category 6 performance per EIA/TIA B.2. FCC compliant, UL rated, RoHS compliant
- 100-Pack

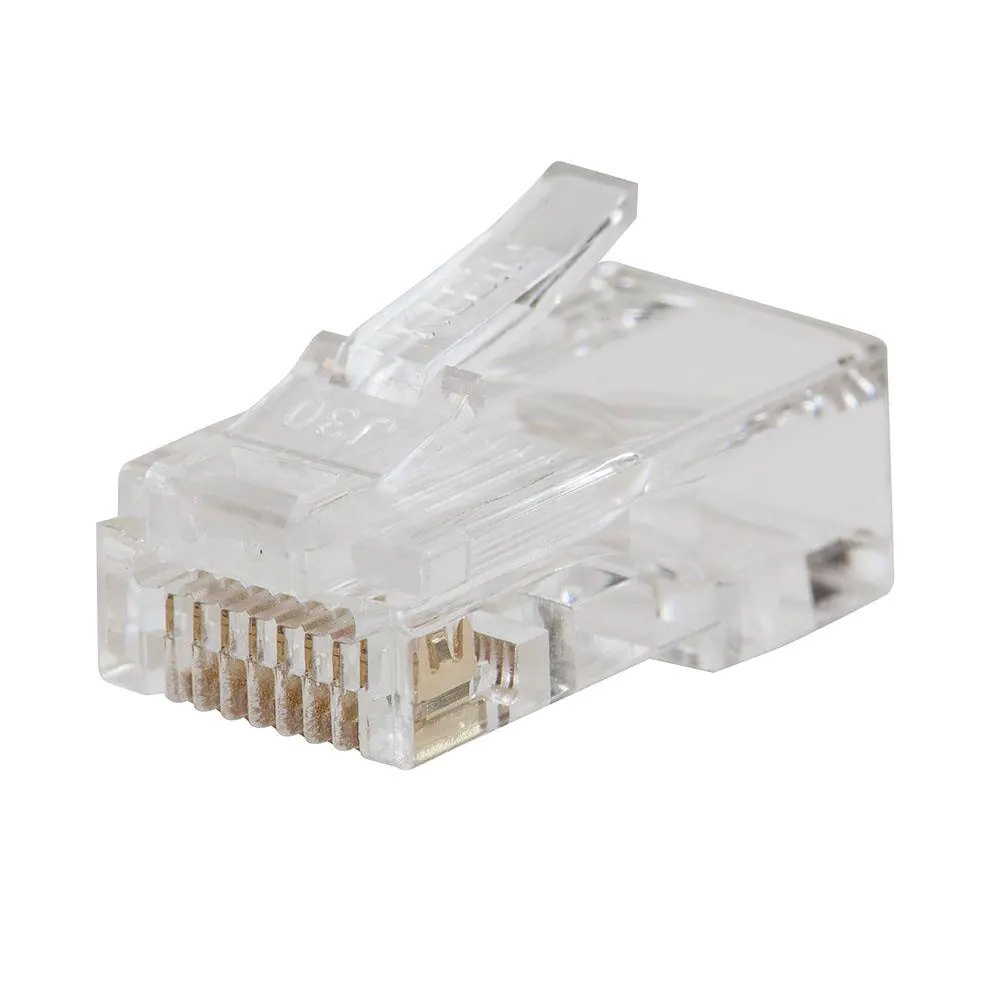

- 8 position, 8 contact Pass Through style data plug for solid or stranded cable
- Max diameter for CAT6 Pass-Thru Connectors is 0.04" (1.01 mm)
