In stock !

Upgraded to WDR and SD Slot inside Camera!

Built-in Web Server allows you to remote View and Playback from PC, Smartphone or Tablet.

Microseven Also provides Desktop App - VMS (Video management system / video management sofware / video management server) up to 16 Cameras on one screen:

  • Collects video from cameras
  • Records / stores that video to a storage device
  • Provides an interface to both view the live video, and access recorded video


All Microseven cameras have been open sourced and are flawlessly accessible via Blue Iris software as well as the third party software, iOS or Android App.

There is no limit as to how many cameras that can be added to the Microseven Cloud site for them to work with Alexa.

Microseven cameras not only provide a beautiful and crisp picture, they are extremely flexible in their setup and compatibility!

Providing 24-hour motion event recording and 24 hours of retrievable playback history anywhere, on any device, at any time!
Add your camera on to enjoy and share your Live Video with family, friends, and clients - at no additional cost!

Power Over Ethernet A single network cable directly connects each IP camera to the NVR supplying both power and a video signal. This time no extra power cable needed just plug one Ethernet cable for one camera and its on the go. A 12VDC input is available, if you don't want to use PoE.

This ip camera is 1920x1080p Mini outdoor camera, Wide Angle, Build-in POE, Plug and Play , ONVIF, easy installation. Clear video image, smooth video.

Motion detection, FTP, Email, snapshot capture, ONVIF, web server built-in for IE, Firefox, Chrome and Safari , Microseven software for multiple cameras at one screen, applied for Windows, Mac OS X, iOS, and Android. Software is ONVIF compliant. Peer to peer network is ready.

Free Apps for iOS and Android, view and hear remotely from anywhere.

Works with Amazon Alexa:

Microseven cameras are built to help you look after your business and your home – even when you’re away. Now you can control your Microseven camera using Alexa with your Echo Show.

To get started, select Settings in Microseven app, then Manage account menu. Click on "A" icon to link your Microseven account and discover your Microseven cameras. For more assistance, please refer to for Alexa smart home menu.

After linking your Microseven account and discovering your Microseven cameras in your Alexa account, you can start streaming live video to your Echo Show. To see your Microseven camera feed on the device, just say commands* like:
-"Alexa, show the east gate camera"
-"Alexa, show the feed from the front door camera"

To stop your Microseven camera from streaming video, you can say:
-"Alexa, hide the playroom camera"

Learn more about how Alexa works with Microseven:

Compatible Microseven Cameras:
-M7Bxx series
-M7Dxx series

Compatible Amazon Alexa Devices:
-Echo Show

*When using this Skill, you need to specify the name of the desired camera. The name is equivalent to the location of where the camera was installed and can be found and configured in the Microseven app. You can also add Microseven cameras to new or existing groups in the Alexa app.


1x M7D77-POE
1x 3 ft Network Ethernet cable ( yellow or white )
1 x Quick Start Manual
1x Bag of Screws

ip camera outdoor, camera ip, ip cam, ip camera hd, ip camera 1080p, Outdoor ip camera, Kamera ip hd, Kamera 1080p HD, ip camera 1080P HD


Model: M7D77-POE

  • 24/7 Live Streaming
  • Alert On Phone
  • Alert notifications on phone and email with snapshot photos
  • Record On Cloud
  • Recording on M7 Cloud, PC, NAS/NVR
  • Sound From Camera: Mic interface and speakers interface
  • Sony 1/2.5" chipset CMOS sensor
  • Effective Pixels: 1920X1080
  • Scanning System: Progressive
  • Electronic Shutter Speed: Auto/Manual 1/3~1/10000
  • Minimum Illumination: 0.005 Lux; 0 Lux when IR led is on
  • S/N Ratio: 50dB
  • Max IR LEDs Wave Length: 65 ft / 20m
  • IR Cut Filter: Auto (IR-Cut Filter built-in) with Color / Black / White.
  • Auto Iris
  • Backlight Compensation
  • Auto White Balance
  • Auto / Manual Gain Control
  • 2D Noise Reduction
  • Software IR light on / off switch
  • Alert Zones Up to 4 smart zones
  • Fixed Lens: 3MP 2.8mm
  • Max Aperture: F1.4
  • Angle of View: 150 (150-170)
  • Mount Type: Board-in Type
  • Video Compression: H.264
  • Resolution: 1920x1080pixels
  • Frame Rate:1~30 frame per second
  • Bit Rate: H.264: 32K ~ 8192 Kbps
  • Network: Power Over Ethernet IEEE 802.3af POE / Ethernet RJ45(10/100Base-T). A 12VDC input is available, if you don't want to use PoE.
  • Protocol: TCP/IP Internet included video port of RTSP
  • ONVIF profile v2.0 up.
  • OSD: On-Screen Display is ready.
  • Maximum User Access: 12 devices accessing directly at same time

  • General Power Supply: 12V DC, power consumption 4 Watts.
  • Environment Temperature: -10C ~ +60C; 10% ~ 90%
  • Weather Proof: IP66 Weatherproof.
  • Dimensions: 4 in x 4 in x 3.5 in
  • Weight: 12.5 oz
  • Installation Environment: Outdoor / Indoor
  • Full 1920 x 1080p resolution at 30 frames per second (FPS) with H.264 Triple Streaming with IR cut filter. 2.5 inch CMOS sensor allows maximum light through the lens ─ yielding vivid colors, brighter video and stunning detail with accurate, vibrant colors and provides clear, nighttime video up to 50 feet with superior image detail in even the most challenging low light conditions.
  • Free 24 hours Microseven cloud storage- Play back recorded motion-triggered video clips from anywhere, with any device, at any time. Set your camera for continuous recording or recording only when motion events are detected. The saved video can be remotely viewed from any computer or Android or iOS device. Or record and store to FTP NAS & NVR Blue Iris ,Synology, ASUSTOR and QNAP
  • Email, mobile notification for instant push notification on your mobile and simultaneously capture those important events right onto your camera for later review and upload to FTP, NAS, NVR, like Synology, ASUSTOR and QNAP and Dropbox, Microseven Cloud
  • Professional POE OUTDOOR & INDOOR: PoE with only one Ethernet cable, no power adapter needed, optional PoE switch or injector, IP66 waterproof camera, All Metal, fit for indoor and outdoor, residential areas, retail store, business. Ultra-Wide (150°) viewing angle along with digital zoom provides an incredible, clear field of view. Working over POE 802.3af allows the camera to be placed in areas that aren't close to a power outlet and allows users to switch between Wired and PoE.
  • No Subscription, No extra cost and Monthly Fee for viewing live and record videos anytime of the day from anywhere Plus add your camera on to enjoy and share your Live Video with family, friends, and clients - at no additional cost! QR code can be scanned for quick Setup and Intuitive Operation for up and running in a matter of minutes on any iPhone, iPad, Android, PC, Mac. Works with Amazon Alexa: go to amazon choose Alexa Skills type microseven on search bar to find description

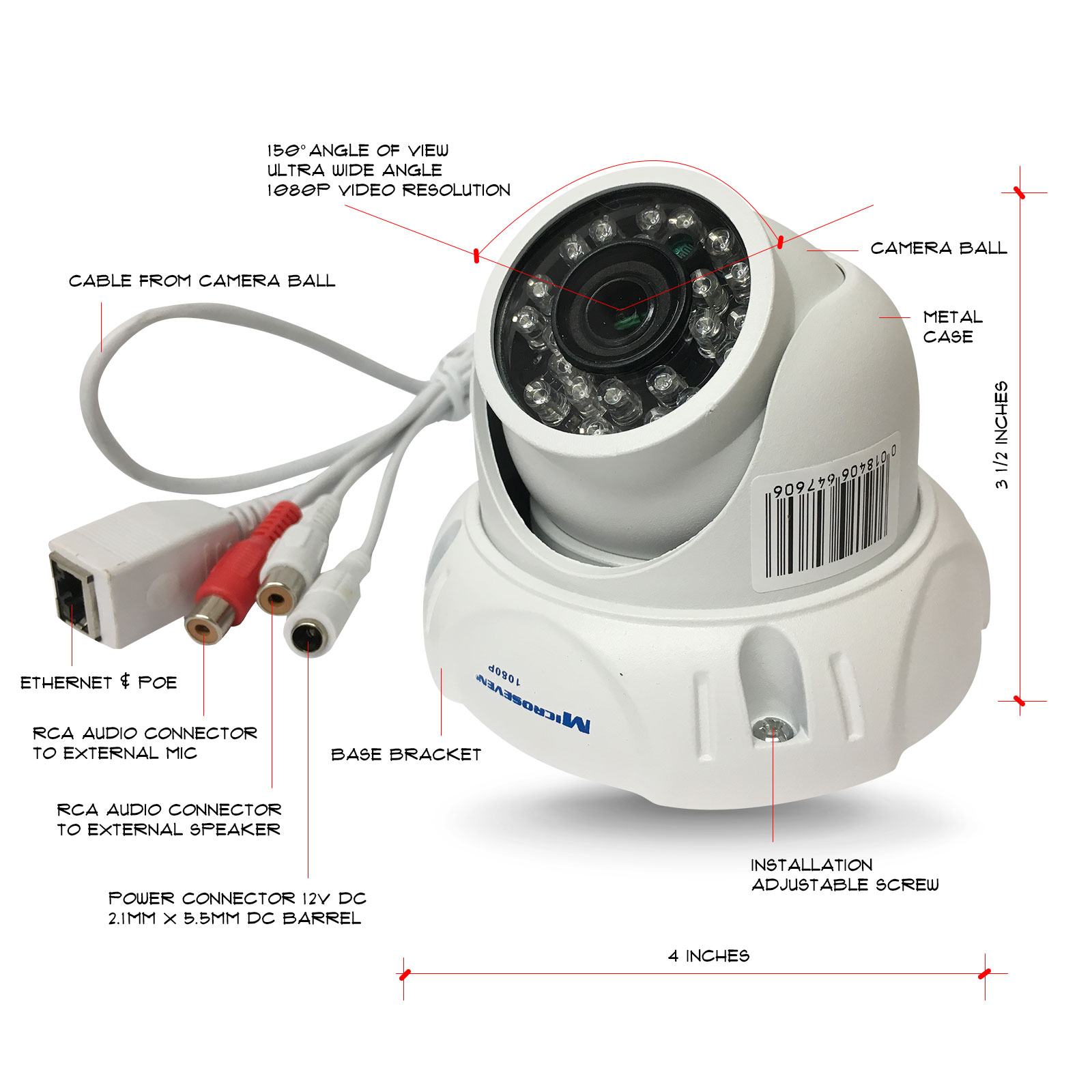

The demo installation shows below. There are two screws for the adjusting angle and position of the camera to aim the objects. And the other two screws are mounting the camera on the wall. A big cable has four ports, you can connect the POE cable to connect to the camera without 12V DC in power supply.
