Would you like to watch a live video demonstration and check its quality?





  • sharp image
  • organic access from the browser
  • ptz programmable
  • outdoor ip66
  • wifi dual band if you want to connect to the internet
  • poe (power over ethernet) if you're going to cable ethernet data and power to the camera
  • wifi dual band if you want to connect to the internet
  • an open network video interface camera
  • internal storage microsd card slot 256gb (not included microsd card)
  • spotlight (flood light), auto-tracking the intruder
  • active deterrence
  • bracket fit for wall and ceiling installation
  • lifetime tech support

Orion Township, Michigan experiences cold weather, making it the perfect setting for a 5MP PTZ camera to capture stunning footage.





Key features:

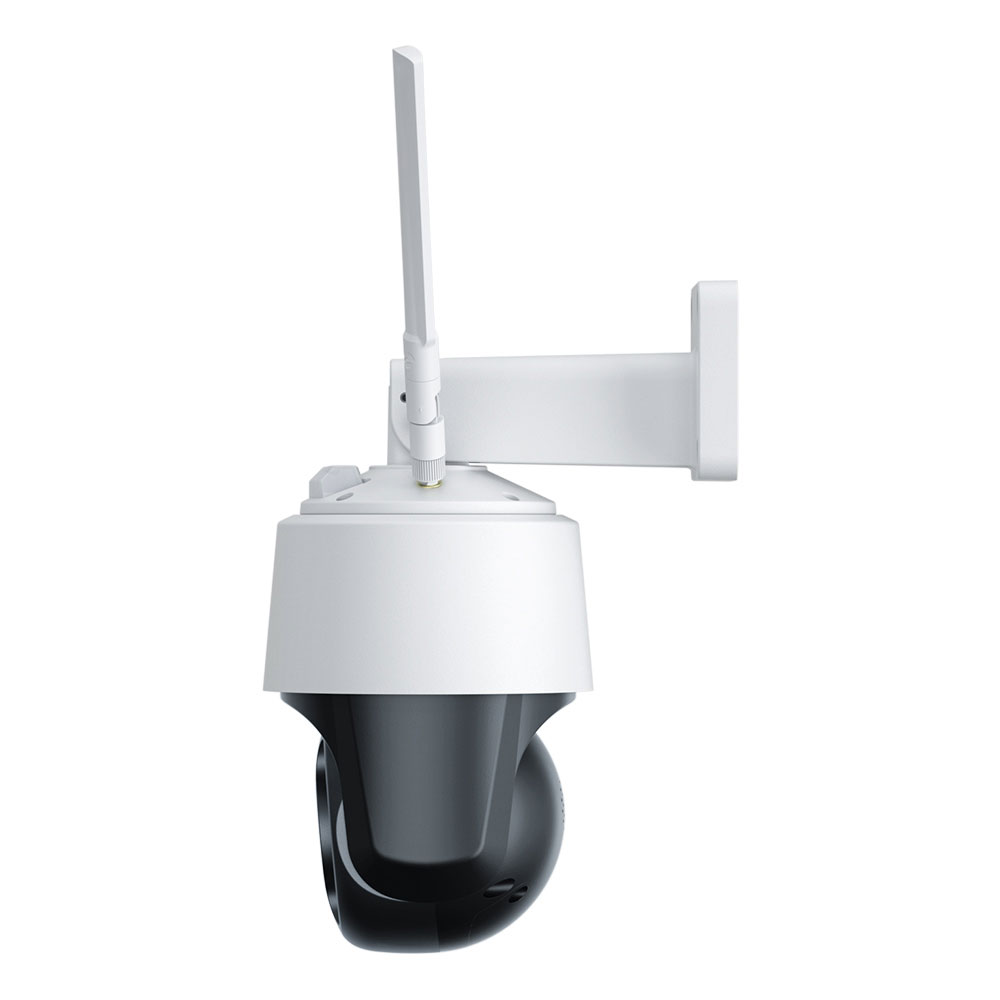

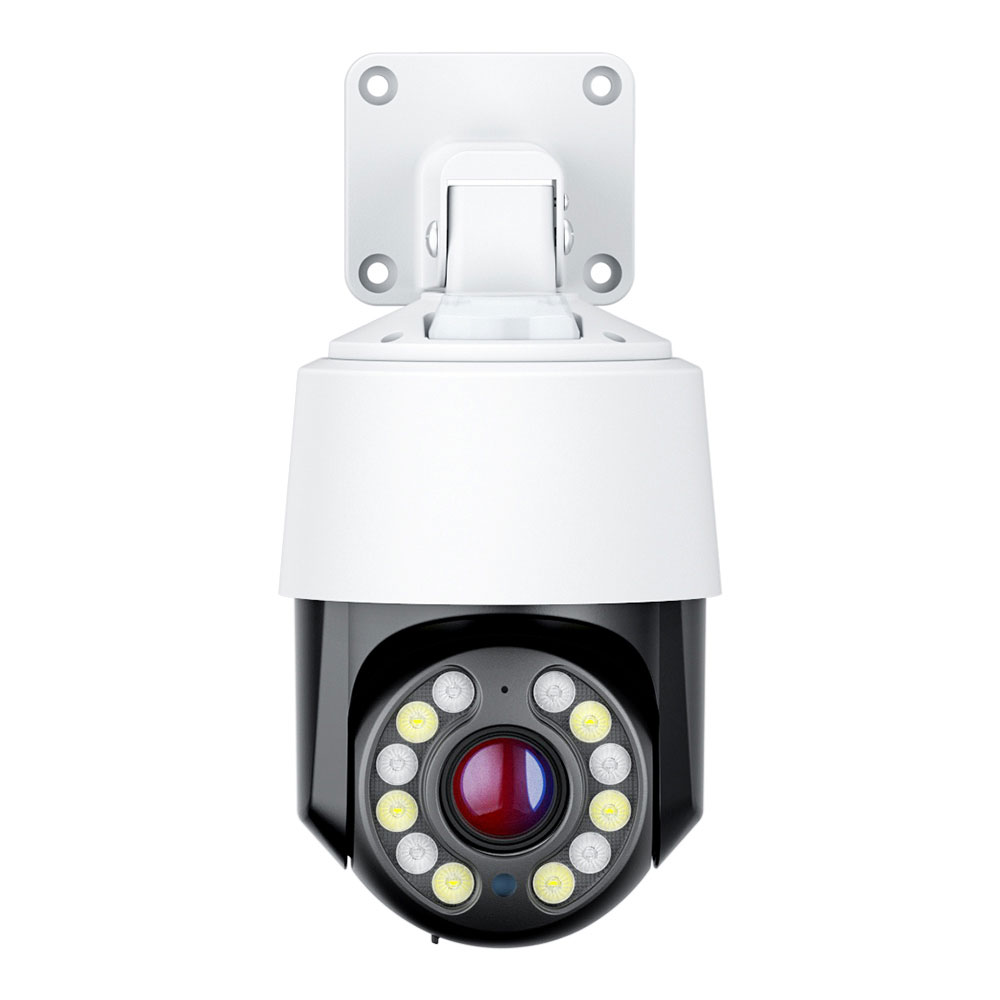

Hardware: This security camera is compact and 3.5 inches in diameter, and it comes with a 14x optical zoom, pan, and tilt (PTZ). It can capture 5MP ultra HD videos with a resolution of 2560x1920p and is equipped with Wi-Fi dual-band and wired PoE.

Equipped with strobe light alert. Night vision spotlight and infrared (IR) light distance are 150ft and 250ft, respectively.



The camera has a 355° endless horizontal rotation and can tilt up to 90°. It has audio support and an IP66 rating, making it suitable for outdoor use.



The camera features auto-tracking and preset and patrol modes. The patrol mode allows the camera to move through a pre-defined sequence of presets, ensuring that all necessary areas are covered without requiring manual adjustment.



In addition, the camera features brilliant color night vision with a spotlight that motion sensors can activate. It can detect human, vehicle, and pet movement. The camera also supports microSD cards up to 256GB.


Software: Microseven CMS allows for remote management of camera properties, providing both RTSP and RTMP protocols and FTP motion-triggered image and clip recording. Additionally, you can schedule FTP image captures for time-lapse projects. The application is ideal for home and business security, as well as live streaming purposes.



The platform supports Alexa, YouTube, and Microseven; the app is open source. You can access camera settings via web-based firmware and stream video on mobile devices and PC/Mac OS. The software is compatible with any NVR with NDAA/ON-VIF, and a recording server (software) is available called M7RSS.



Microseven Cloud is also available for all cameras. This service lets you play back content on your phone and internet browsers through the cloud.

Image Sensor 1/2.8", CMOS
Video Format NTSC / PAL
Effective Pixels 2560 (H) & 1920 (V)
Resolution Up to 8MP (4K)
Wi-Fi 2.4GHz/5GHz
Range 0°~355° Pan (Endless); -15°~90° Tilt
Zoom 14× Optical Zoom & 20× Digital Zoom
Scan System Progressive
Synchronization Internal
S / N Ratio ≥50dB
Iris DC Auto Iris w/Hall-effect
Min. Illumination 0.1 Lux in Color; 0.01 Lux in Black and White
Field of View (Horizontal) 54.7°~4.54°
Day/Night Auto (ICR) / Color / B/W
Termination RJ45 (10Base-T/100Base-TX) / DC Jack
Video Output IP
Power Requirement PoE+ (802.3at); 12V DC (Optional)
Power Consumption Max. 2A / 20W
Operating Temperature Range -40°F ~ 158°F / -40°C ~ 70°C
Operating Humidity Range <90%RH
Indoor/Outdoor Both (IP66)
Weight (Camera Alone) 2 lb
Weight (Camera & Wall Mount) 3 lb
  • 5MP (2560x1920) 14X Optical Zoom with 4.7~50mm
  • Sony Starvis CMOS Image Sensor
  • 355° Pan horizontal rotation and 0°-90° Tilt + 14X Optical Zoom,and 20x digital zoom Built-in Microphone, External high-power Speaker
  • Spotlights Color Night Vision or IR LED Night Vision Up to 325ft
  • Storage Capabilities to MicroSD Slot up to 256GB, NVR, Microseven Cloud, PC, NAS
  • Built-in Web Server (Microseven firmware) allows you to remote View and Playback from a PC, Smartphone, or Tablet
  • Fully compatible connectivity, Works over Ethernet or Power over Ethernet (PoE+) 802.3af.
  • Software PTZ Controller Board
  • Pan Controller 355°
  • Tilt Controller 0°-90°
  • Zoom Controller 14X Optical Zoom and 20x digital zoom
  • Focus Controller
  • Home
  • Auto Rotate
  • Spotlights Color Night Vision or IR Cut controller, IR light On/Off, Color, Black White
  • Guard Controller, Guard Time Controller
  • Preset Position Setting
  • Auto Cruise, Cruise Time Controller, Cruise Speed Controller
  • Setting Recovery Controller
  • Pause Controller
  • Reset Controller
  • This camera requires PoE+ power (802.3at) or the included Microseven 12V power supply to operate.



PACKAGE INCLUDED

1x M7D5MP-PTZV14X-POESAA
1x Power Adaptor 4A 12V DC Output, 100~240V AC Input
1x Bracket for PTZ Camera
1 x Quick Start Manual
1x Bag Of Concrete Wall Mount Screws & Bolts (4)
1x Bag Of Screw Which Tied Camera on The Bracket
