Model

M7D4MP-PTZ4X-WPSAA

Resolution

4MP (2560x1440)

Field of View

103

Power

Wired, POE 802.3af/at

Connectivity Wi-Fi dual band 2.4Ghz/5Ghz, Ethernet
Video Storage Cloud, PC App, NVR, microSD, NAS
Smart Platform Compatibility Alexa, Youtube Channel
Remote Management Yes
Stream Video Smartphone, PC, Mac, NVR, NAS
Audio Two-way
Intelligent Motion Alert Human, Vehicle
Night Vision Color Yes



Here is a demo to showcase the quality of the live video stream:

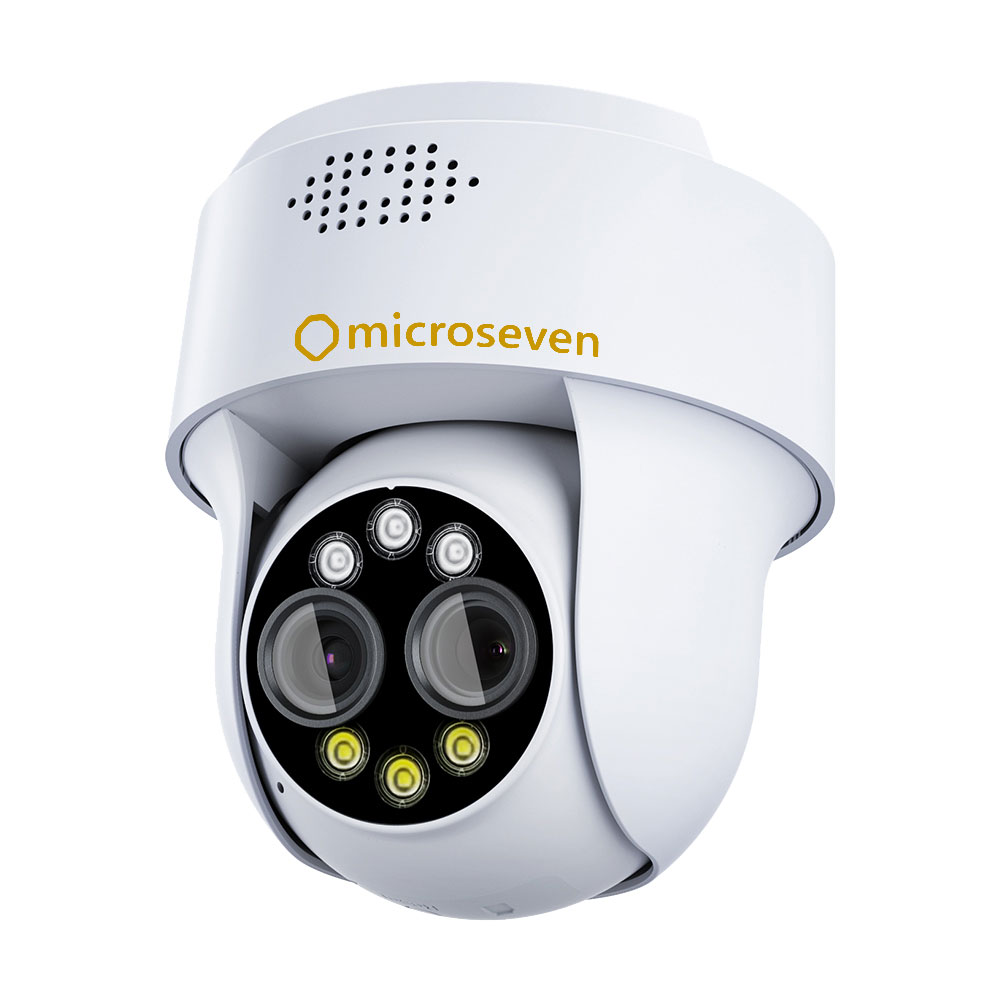

Model: M7D4MP-PTZ4X-WPSAA



Microseven cameras offer the ability to FTP video clips and images to an FTP server with options such as FTP alert clip, FTP on-demand photo, RTSP, and RTMP. These cameras are open-sourced and can be accessed through Blue Iris and third-party software and via iOS and Android apps. The cameras provide a clear picture and are highly adaptable and compatible.



Microseven offers free CMS software for Windows and Mac that allows remote modification of camera properties for up to 16 cameras on one screen. Time-lapse videos can be created to view the changes of a day in minutes or seconds, and recordings can be saved to a microSD card (up to 256GB, not included), Microseven Cloud, Microseven NVR, or the FTP server.



This model includes 4MP UltraHD 2560x1440 resolution, 4X auto zoom, 355° horizontal rotation, 90° tilt, and an IP65 rating for outdoor use. The cameras also have a built-in microphone and speaker for two-way communication through the M7 app or software.

The cameras have an intelligent human/vehicle detection algorithm that reduces false alerts and sends real-time alerts through email or the app when motion is detected. Standard ONVIF is built-in, and the cameras work with Microseven NVR, any ONVIF NVR, or 3rd party software. The cameras can be quickly set up through the M7 app or software.

Control speed Horizontal speed 0.01°~15°/S, vertical speed 0.01°~10°/S
Rotation range 320° horizontal rotation, vertical 0°~90° automatic flip
Communication protocol PELCO-D
Baud rate 9600bps
Tracking function Motion detection or humanoid tracking
Installation method Ceiling mounted
Power supply DC12V 1A waterproof power supply; POE (power over ethernet 802.3af/3at)
Compression standard H.265, H.264 Video compression standard
Video compression rate 32Kpbs-8Mpbs
Audio and video compression algorithm G.711A
Audio input and output Built-in microphone and speaker
Memory card Supports up to 256GB microSD card
Protocol supported TCP/IP, HTTP, UDP, SMTP, DNS, DDNS, NTP, RTSP, ONVIF, RTMP and related protocols
Subtitle overlay Support channel name, date and time. Superimposed subtitles can be customized by users
Motion Detection 4 independent areas can be set
Communication Interface 1 RJ45 10M/100M Ethernet port
Wi-Fi IEEE standard Wireless standard IEEE802.11b/g/n
Wi-Fi frequency range 2.4 GHz/5.8 GHz
WI-FI security mode WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
Transmission distance 66 ft (without obstacles)
AP (hot spot) The camera should not be connected to the network via Ethernet cable while configuring wirelessly using hotspot mode.
General specification Stand-by power consumption less than 4W
Working temperature -10℃-55℃
  • 4MP UPTO 30fps High Resolution, 2560x1440
  • Dual sensors, which can switch between two sensors on the APP
  • 355° pan endless horizontal rotation and 0°-90° tilt
  • Built-in microphone and speaker
  • Storage capabilities use microSD up to 256GB, NVR, Microseven Cloud, PC, and NAS.
  • The built-in web server allows you to remote view and playback from a PC, smartphone, or tablet.
  • Remote modify camera properties via M7 CMS
  • Fully compatible connectivity works over duo Wi-Fi or Ethernet.
  • Power uses power over Ethernet (PoE+) 802.3af/at
  • Software PTZ Controller Board, pan controller 355° and tilt controller 0°-90° and zoom controller 4X auto zoom with focus controller
  • Spotlights color night vision or IR cut controller, IR light on/off, color and black white.



PACKAGE INCLUDED



1x M7D4MP-PTZV4X-WPSAA
1x Power Adaptor 4A 12V DC
1x Quick Start Manual
