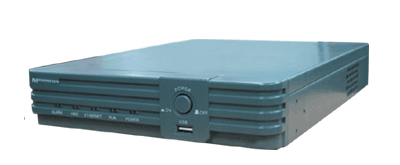

Microseven MSH-DVS4CHD 4-Port Video Server Wi-Fi & Ethernet / MSH-DVS4CHD

• NTSC system with max 30fps frame rate
• PAL system with max 25fps frame rate
• With PTZ Control
• Bit stream: 100Kbps-3Mbps
• Powerful Microseven software
• Using IE browser and Microseven software access camera from anywhere
• Motion detection alarm and I/O status alarm feature
• Network TCP/IP protocol
• Provide RS422 interface, more compatibility
• MSHDVS4CHD recodering streaming video and still image to hard disk
• Wi-Fi 802.22 G w/ wireless USB adpater
• Motion detection alarm and I/O status alarm feature
• Power supplier input from 85V - 240V, and output range is DC 12V
• Hard metal cover, anti-interference, high reliability
• Intercom function: can realize site to remote client-end intercom by audio I/O of network video server.
• Network TCP/IP protocol
• Excellent customer service 24/7

Overview

Microseven video encoders integrate easily into your existing analog cctv (closed circuit television) cameras system and it converts analog camera video to digital video for monitoring and recording. There are two options to recording to video, first it is recording data in the built-in hard disk and second, it will recording in your PC, server or the large scale storage to prevent your device stealed in location but the recording will keep on remote. It is worry free security and state of art system.

Microseven video encoder digitizes analog video signals and sends digital video streaming or images directly over an intranet or internet. Microseven provides first class software to our customers and secured website microsevencam.com to use and get support 24/7.

Microseven network video solutions offer the following advantages:

• 4 Channel video encoder and recorder 2 IN 1
• 500 GB hard disk for 30 days recording storage (hard disk sold seperated)
• 4 channels audio available
• Wi-fi 802.11 G w/ Wireless USB adapter (sold seperated)
• NTSC system / PAL system
• H.264 video compression
• Remote accessibility
• Easy, future-proof intergration
• Scalability and flexibility
• Cost-effectiveness
• Distributed intelligence
• Proven technology

Notes

1. Keep away from the high-temperature objects and places
2. Avoid direct exposure to sunlight
3. Do not put it at wet places
4. Do not install at the violently shook places
5. Do not put any other equipment on the video server
6. Video server should be installed in a well-ventilated place, and not to block the equipment vents;
7. Make sure the power cable is well connected before turning on the power switch.
8. Confirm whether install the hard disk during the initial installation, and notice the line jump to the main disk status;
9. Do not open the box without any professional personnel, please contact manufacturer when malfunction happens.

Main Parts

1. Front Board


   Indicator Status


2. Rear Board

3. Alarm Port and RS485 Port
   1. Alarm input/output and RS485 port definition

   2. Sketch Map for Alarm input/output and RS-485 Port

      Both the alarm input and output are I/O, A and B are the 2 ends of the I/O.

Setup & Application

1. Hardware Setup Steps
   1. Checking product and accessories
   2. Hard disk setup
   3. Set up video server
   4. Connect the equipment to network by RJ45 port
   5. Connect video source to video input port
   6. Connect audio source to audio input port
   7. Connect speed dome or PTZ to RS485 port
   8. Connect the alarm input/output equipments to alarm port
   9. Supply power, equipment running.
2. Checking product and accessories
   1. Network video server: 1pcs
   2. Power cable: 1pcs
   3. Network cable: 1pcs
3. Hard Disk Setup
   1. Turn off the power
   2. Screw off the screw on the top cover, and remove the top cover, which shows as follows:

   3. Screw off the screw on the hard disk bracket, and remove hard disk bracket.

   4. Fix the hard disk onto the bracket with the HDD fixed screws (keep the power port and IDE port backward)

   5. Install HDD bracket, and tighten the HDD fixed screws.

   6. Connect the cable of the HDD IDE port.
   7. Connect the HDD power.
   8. Install the top cover, and tighten the fixed screws on the top cover.
4. Installation on Cabinet

   Install the MSHDVS4CHD to the mounting rack with the mounting brackets and 6 screws.

   1. Turn off the power.
   2. Remove the 4 rubber mat.
   3. Install the brackets onto the 2 sides of MSHDVS4CHD separately, and fix it with 6 screws ( M3*10).

   4. Install the MSHDVS4CHD to the mounting rack with mounting brackets, and fix it with the 4 screws (accessories not included).
