Microseven MSH-DVS1CHD 1-Port Video Server Wi-Fi & Ethernet / MSH-DVS1CHD

• H.264 video compression format and up to D1 image quality; allow NTSC/PAL switch With max frame rate: 30fps (NTSC) and 25fps (PAL), bit stream: 100Kbps-3Mbps.
• Powerful software function: provide network video server hardware as well as total software solution.
• Provide SDK interface to realize multi-system integration, easy for second development for more functions.
• Digital matrix function: can realize common analog matrix functions like switch & setup auto switch time etc. Special keyboard can be directly connected to the network, controlled speed domes and switched images.
• Unique video decoding function: can decode the data package of network camera to composite video signal, and display it on monitors.
• Provide a RS422 interface, more compatibility.
• MSH-DVS1CHD can be equipped with hard disk, can store compressed video images and easy for recalling.
• Built-in web server can see the images from anywhere through client side software or IE browser as well as capture and record the surveillance images.
• Flexible visit mode: one to multi-end, multi-end to one.
• Motion detection alarm, I/O status alarm and LOGO update alarm function, with 12x16 detecting areas & 8 level sensitivity; When the moving objects are discovered in set areas, an alarm signal will be transmitted to appointed client-end through network, image capturing & recording or other relevant actions can be set.
• Wider power supply range: AC 85-240 V
• Hard metal cover, anti-interference, high reliability. Can be installed on cabinet and easy to be managed.
• Intercom function: can realize site to remote client-end intercom by audio I/O of network video server.
• Built-in multi network protocol: Support TCP/IP protocol, allow data sending and receiving by WAN or LAN.
• Built-in Linux operation system.
• Support wireless IEEE 802.11b/g standard, wireless USB adapter purchasing seperately.
• Web and client software

Overview

Microseven Video Encoders / DVS integrate easily into your existing analog CCTV (closed circuit television) system. You can acquire all the benefits that digital technology offers without scrapping your investment in an analog system.

• H.264 video compression format
• Built-in Hard Disk
• NTSC/PAL Switch
• Built-in Linux System
• Wireless 802.11 b/g Support

A video server (also referred to as video encoder) digitizes analog video signals and sends digital images directly over an IP network, such as a LAN, intranet or Internet. It essentially turns an analog video system into a network video system and enables users to view live images using a Web browser or a video management software on any local or remote computer on a network. It allows authorized viewers from different locations to simultaneously access images from the same analog camera, as well as network cameras if they are added to the system.

An IP-based surveillance system will give you the ability to secure people and property, or monitor equipment and facilities, remotely from anywhere there is a networked computer. In addition, by utilizing the serial ports of a video server, you can remotely control existing equipment such as pan/tilt/zoom devices or time-lapse tape recorders. A video server can be connected to a wide variety of specialized cameras such as a miniature or microscope camera.

Microseven network video solutions offer the following advantages:

• Remote accessibility
• Easy, future-proof intergration
• Scalability and flexibility
• Cost-effectiveness
• Distributed intelligence
• Porven technology

Main Parts

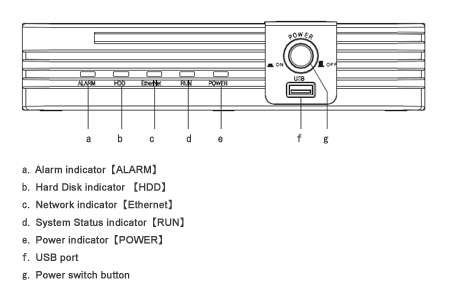

1. Front Board

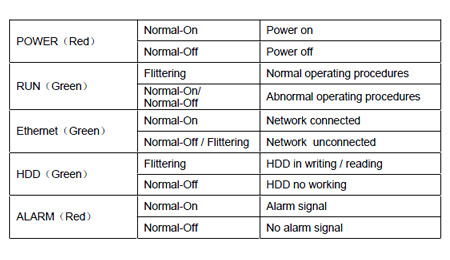

   Indicator Status

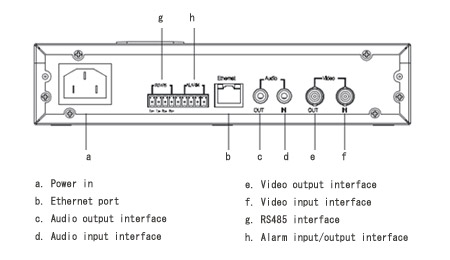

2. Rear Board

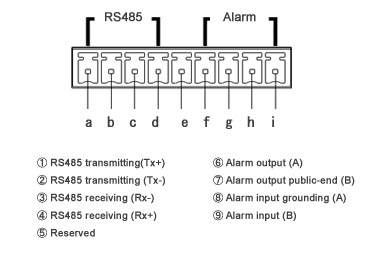

3. Alarm Port and RS485 Port


   Alarm input/output and RS485 port definition

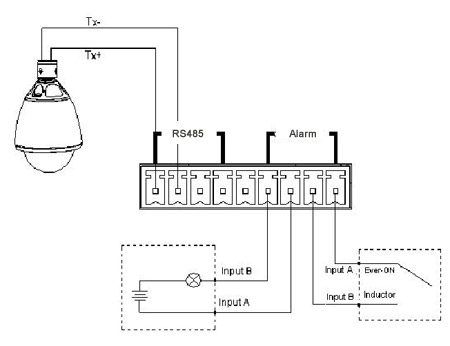

   Sketch Map for Alarm input/output and RS-485 Port
   Note: Both the alarm input and output are I/O, A and B are the 2 ends of the I/O.


Notes

1. Keep away from the high-temperature objects and places
2. Avoid direct exposure to sunlight
3. Do not put it at wet places
4. Do not install at the violently shook places
5. Do not put any other equipment on the video server
6. Video server should be installed in a well-ventilated place, and not to block the equipment vents;
7. Make sure the power cable is well connected before turning on the power switch.
8. Confirm whether install the hard disk during the initial installation, and notice the line jump to the main disk status;
9. Do not open the box without any professional personnel, please contact manufacturer when malfunction happens.

Setup & Application

1. Hardware Setup Steps
   1. Checking product and accessories
   2. Hard disk setup
   3. Set up video server
   4. Connect the equipment to network by RJ45 port
   5. Connect video source to video input port
   6. Connect audio source to audio input port
   7. Connect speed dome or PTZ to RS485 port
2. Checking product and accessories

   Please check whether the product and accessories are complete.

   - Network video server: 1pcs
   - Power cable: 1pcs - Network cable: 1pcs

3. Hard Disk Setup
   1. Turn off the power

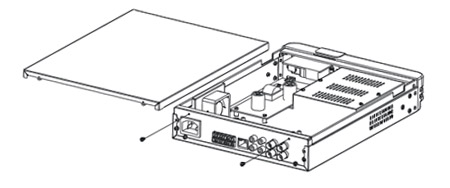

   2. Screw off the screw on the top cover, and remove the top cover, which shows as follows:

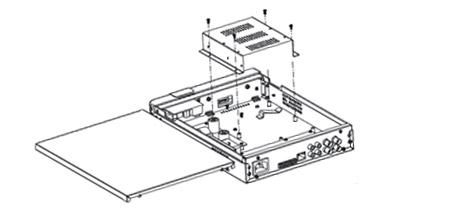

   3. Screw off the screw on the hard disk bracket, and remove hard disk bracket

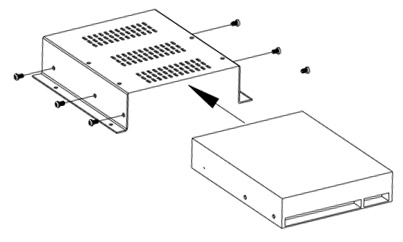

   4. Fix the hard disk onto the bracket with the HDD fixed screws (keep the power port and IDE port backward)

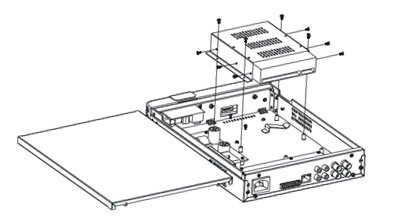

   5. Install HDD bracket, and tighten the HDD fixed screws.

   6. Connect the cable of the HDD IDE port.
   7. Connect the HDD power. Install the top cover, and tighten the fixed screws on the top cover.
4. Installation on Cabinet

   Install the MSHDVS4CHD to the mounting rack with the mounting brackets and 6 screws.

   1. Turn off the power.
   2. Remove the 4 rubber mat.
   3. Install the brackets onto the 2 sides of MSHDVS4CHD separately, and fix it with 6 screws ( M3*10).

   4. Install the MSHDVS4CHD to the mounting rack with mounting brackets, and fix it with the 4 screws (accessories not included).
