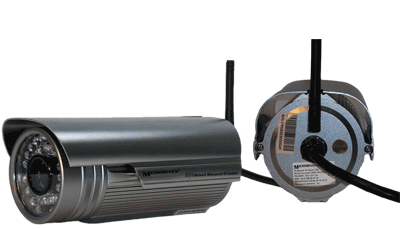

| Model |
MSH-RC080WS |
| Pick-up Device |
1/3" SONY Super HAD CCD |
| Pixels |
795 (H) x 597 (V) |
| Horizontal Resolution |
480TVL-520TVL |
| Scanning Area |
4.9 mm (H) x 3.7 mm (V) |
| Scanning Mode |
625 Lines / 50 Fields / 25 Frames |
| Scanning |
2:1 Interline Scanning |
| Video Output |
1.0V [p-p] / 75Ω, PAL/NTSC Composite Video Signal, BNC connector |
| S/N Ratio |
≥ 48dB (AGC OFF, Weight On) |
| AGC |
≥ 18dB |
| ELC |
1/120s |
| Lens |
6mm |
| F Coefficient |
F2.0 / 2.5 |
| IR night vision distance |
Max 50m |
| LED |
IR wave length 850mm, Φ5 x 24 pcs |
| Image/Audio Compression Standard |
H.264 / G.711 |
| Resolution |
QCIF: 176x144, CIF: 352 x 288, H-D1: 360 576, D1: 720 x 576 |
| Bit Stream |
100Kbps - 3Mbps, CBR/VBR adjustable |
| Character Overlay |
Support character and time overlay |
| Network Interface |
1 RJ-45, 10M/100M self-adjustable |
| Network Protocol |
TCP/IP, UDP/IP, HTTP, FTP, ICMP, Telnet, WIFI IGMP, PPPOE, DDNS, DNS, DHCP |
| IE Application |
Built-in web server, allows IE browsing and controlling |
| Network Time Check |
Provide the interface for network clock checking |
| Equipment Search |
Support equipment searching by Ethernet broadcasting |
| User Administration |
Provide multi-level user administration |
| Built-in Watchdog |
Timing detection of chips & software work status, auto system reset |
| Remote reposition |
Realize remote reposition through network |
| Audio Input |
1 channel, RCA interface, single track |
| Audio Sampling Rate |
8 KHz |
| Wireless Function |
IEEE 802.11 g wireless module |
| Compressed Code Rate |
32 Kbps |
| Temperature/Humidity |
- 10° C - +50° C, ≤ 95% |
| Waterproof Grade |
IP66 |
| Color |
Silver / Black |
| Power Supply |
DC 12V, 2A |
| Diemension / Weight (With lens) |
9.1 in X 4 in X 4 in / 3.10 lb |
| Storage |
SD card drive for 4 GB |
