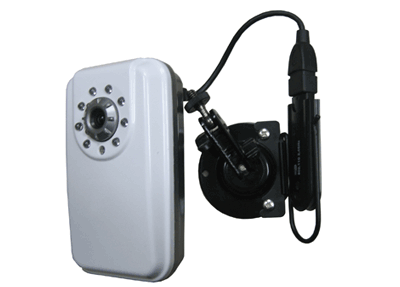

Microseven MSH-IR020WS wall IR 480 TVL wireless network camera SD Slot H.264 Wi-Fi & Ethernet / MSH-IR020WS

12V 100-240v ac adapter, bracket and wireless USB adapter all included!

• 1/3" SONY CCD 480 TVL
• Infrared leds build-in day and night vision
• Wi-Fi 802.11 G WPA and WEP Encrytion
• H.264 live video, D-1 720 X 486 in NTSC systems / 720 X 576 in PAL systmes, With max frame rate: 30fps (NTSC) and 25fps (PAL), bit stream: 100Kbps-3Mbps;
• Configure the software to notify you when motion was detected by camera. The software can send notifications via Email or FTP with an image of the object in motion With Both WiFi or RJ45 Ethernet network capability
• Multiple recording on local PC/Server or remotely recording and playback
• Ready for home automation devices (HAI)
• Build-in microphone, loudspeaker and equiped with one channel audio input and output interface to realize remote communication
• Camera ready to connect into existed network(LAN) work and home
• Dual streaming over internet recording
• Microseven software included for multiple users license;
• Provide Microseven software SDK;
• Provide microseven.com for customers register cameras on the platform to monitor camera live;
• LIVE Still images are available when Microseven network cameras are online over the internet. This feature is working for all the browsers and different operating systems without installation of any software. The internet web browsers are included in IE, Firefox, Safari, Netscape, Google web browser and other mobile phone device and home automation device such as HAI. And operating systems may be included Microsoft Windows, MAC OS X and Linux, Solaris and etc.;
• LIVE Streaming - flash format works for ALL browsers (IE, Firefox, Safari, Netscape, Chrome) on the Internet without installing any software. Hosted by Microseven.com. It can be embedded on your application and your website.
• Camera built-in web server provides video LIVE anywhere over the internet;
• SD slot build-in (SD card sold seperated max 4GB for 26 hrs recording). Record video real time data about 26 hours; (ask for SD card pre-install, purchase SD card from microseven.com);
• Motion detection alarm with 12x16 detecting areas & 9 level sensitivities, once motion triggered, captured images will be sent to FTP or Email address, support Google Gmail and at same time motion will trigger camera to record video data;
• TCP/IP protocol;
• Dual-channel AV output for analog and network digital signals.
• High quality black/white image under low illumination in the night vision.

Overview

MSIR020WS Network IP camera adopts SONY CCD, with bright and exquisite images. As video & audio multi-media equipment that based on network transmission, which adopts built-in and multi-media communication technology, the camera is a multi-media network terminal that can directly connect to the network.

The camera adopts all-built-in technology, which can be connected to the TCP/IP network without any other equipment and realize the video & audio collection, code compression and transmission function. Outstanding H.264 compression code arithmetic guarantees the minimum occupation of bandwidth, and built-in Web Server enables users to visit the IP camera through IE or special surveillance management software.

As an IP camera, MSIR202WS is especially designed to for households, hotels and offices etc.

Components

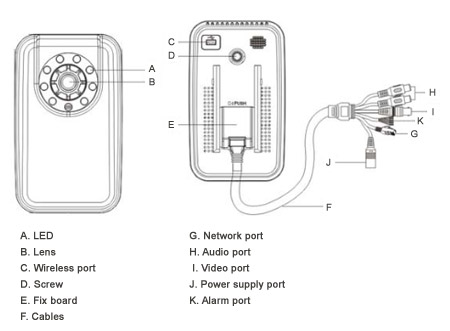

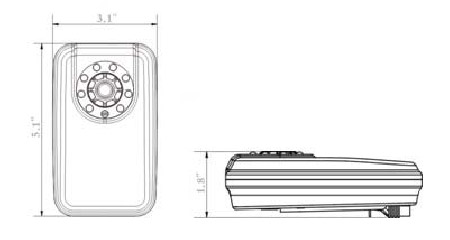

Appearance

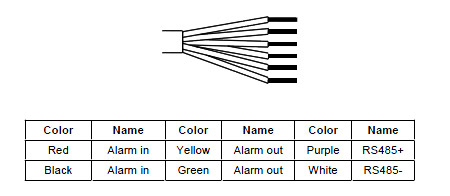

RS485 and Alarm Cable Definition

Note

1. The camera is designed for indoor application, and it is not water-proof, damp-proof and lightning-proof.
2. Do not operate the camera beyond the specified temperature or humidity. Keep aeration well to avoid the injection of intake.
3. Do not share the same power supply wire or socket with the high-power electronic appliances.
4. Do not install or dismantle camera cables before the power is cut off.
5. Make sure the camera works under the specified voltage to avoid the damage because of non-matching voltage.
6. Make sure the camera works under the specified temperature and humidity (please refer to technical parameters)
7. Please disconnect the power adapter if the camera is kept for non-using for a long time.

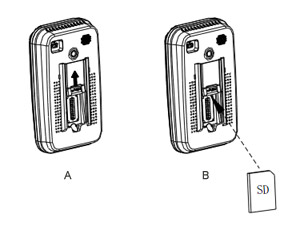

1. SD Card Installation

SD card standard:

1. Dimension (32*24*21mm standard)
2. 512M, 1G, 2G, 4G
3. No less than 6 MB/S for read-write speed

2. Camera Installation

1. Tighten the gimbaled mount a and the mount base b to the wall with screwdriver, shown as below.

2. Insert the wireless module c into the bracket d

3. Push the entire wireless module c into the entire gimbaled mount d, shown as below:

4. Screw the camera e into the entire gimbaled mount which is fixed on the wall, shown as below.

5. Tighten the screw of gimbaled mount a in direction, shown as below.

6. Insert USB adapter f into wireless module c and camera, shown as below:

7. Burst through crimp terminal g along the slot, shown as below.

8. Insert the down-leads h into slot, show as below.

9. Push the crimp terminal to bottom along guide to press cables g.

10. Complete the entire installation.

11. Connect all terminals according to instruction, and adjust lens i cover in direction to get a clear image, shown as be below.


Caution

• Do not get close to the high temperature sources
• Do not aim the camera at the sun
• Do not keep in humidity
• Do not install in strong shaking environment
• Do not put other items on the camera
• DRS should be installed in the environment with good aeration
• No repair by users. Return to factory for damage
• Do not pull or insert the wireless module when the power is on
