| Model |

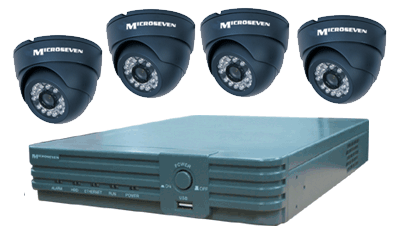

MSH-DVSSET04C (MSHDVS4CHD & 4 IR DOME CAMERAS) |
| Video In/Out |
4 channel (BHC connector) |
| Video Source System |
PAL / NTSC |
| Audio Input |
4 channel (RCA connector) input |
| Video Compresssion Format |
H.264, 10 image quality levels selectable |
| Bit Stream |
100 Kbps - 3 Mbps, CBR/VBR adjustable |
| Peripheral Port |
One 10/100Mbit Ethermet Interface (RJ45 Interface), One RS422 interface |
| Network Protocol |
TCP/IP, UDP/IP, HTTP, IGMP, ICMP, TELNET |
| Resolution |
CIF360 x 288 |
| Transmission Rate |
100 fps (PAL), 120 fps (NTSC) |
| Alarm Input |
4 channel |
| Alarm Output |
4 channel (terminal output, NO/NC trigger DC30V. 1A) |
| Motion Detection |
12x16 detection areas and 8 sensitivity levels. |
| Storage |
MSHDVS4CHD can be equipped with built-in hard disk to IDE HDD 500 GB |
| User Management |
Multi-level user management |
| Temperature |
-10°C - +50°C |
| Humidity |
5 - 90% |
| Power Supply |
DV12V / AC85 - 220V 50Hz |
| Dimensions |
8.74 in (W) X 1.9 in (H) X 12 in (D) |
| Weight |
4.2 lb. |
| Technical Support |
SDK, allows second development |
| Wireless Support |
IEEE 802.11 b/g support (wireless USB adapter purchasing seperately) |
| Type |
Color |
| Signal System |
PAL |
NTSC |
| Pick Up Device |
1/3" SONY Super-HAD CCD |
| Picture Elements |
512(H)X582(V) |
| Resolution |
420TV Lines |
| Mini Illumination(F1.0 30IRE) |
0Lux |
| Scanning System |
2:1 Interlace |
| Sync System |
Internal |
| S/N Ratio |
more than 50dB |
| Electronic Shutter |
AES:1/50-1/10,000SEC |
AES: 1/60-1/10,000SEC |
| Black light compensation |
ON or OFF |
| Gain Control |
Auto |
| White Balance |
Auto |
| Lens Focus |
6mm |
| Video output |
1.0Vp-p(75Ω BNC) |
| Power supply |
DC12V |
| Power Consumption |
350mA |
| Dimensionφ x H(mm) |
120×90 |
| Weight |
305g |
| Storage Temperature |
-30～+60℃ |
| Operating Temperature |
-10～+45℃ |
|
Storage |
Hard disk drive for 500 GB |
