| Model |

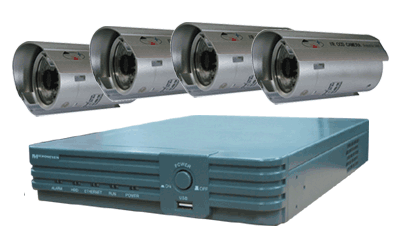

MSH-DVSSET04C (MSHDVS4CHD & 4 IR CAMERA) |
| Video In/Out |
4 channel (BNC connector) |
| Video Source System |
PAL / NTSC |
| Audio Input |
4 channel (RCA connector) input |
| Video Compresssion Format |
H.264, 10 image quality levels selectable |
| Bit Stream |
100 Kbps - 3 Mbps, CBR/VBR adjustable |
| Peripheral Port |
One 10/100Mbit Ethermet Interface (RJ45 Interface), One RS422 interface |
| Network Protocol |
TCP/IP, UDP/IP, HTTP, IGMP, ICMP, TELNET |
| Resolution |
CIF360 x 288 |
| Transmission Rate |
100 fps (PAL), 120 fps (NTSC) |
| Alarm Input |
4 channel |
| Alarm Output |
4 channel (terminal output, NO/NC trigger DC30V. 1A) |
| Motion Detection |
12x16 detection areas and 8 sensitivity levels. |
| Storage |
MSHDVS4CHD can be equipped with built-in hard disk to IDE HDD 500 GB |
| User Management |
Multi-level user management |
| Temperature |
-10°C - +50°C |
| Humidity |
5 - 90% |
| Power Supply |
DV12V / AC85 - 220V 50Hz |
| Dimensions |
8.74 in (W) X 1.9 in (H) X 12 in (D) |
| Weight |
4.2 lb. |
| Technical Support |
SDK, allows second development |
| Wireless Support |
IEEE 802.11 b/g support (wireless USB adapter purchasing seperately) |
| |
|
| IR Camera |
Specification |
| Video Output |
1.0Vp-p/75Ohm |
| Scanning System |
2:1 interlace |
| Resolution |
480 TVL |
| Minumum Object Illumination |
Max. 0 Lux (IR On) |
| Signal System |
PAL/NTSC |
| S/N Ratio |
50dB |
| Gamma characteristics |
0.45 |
| Photo Image Sensor |
SONY1/3-inch Super HAD CCD |
| Effective Pixel Count |
512(H) x 582(V) |
| Sync Modes |
Internal sync |
| Iris Control |
Video Iris: DC12V, 320 MA, image Signal: 0.7Vp-p(high impedance) |
| Power |
DC12V ± 20% |
| Operating Temperature |
-10 ˚C + 50 ˚C |
| External Dimensions |
4.92 in x 2.84 in |
| Weight |
1.5 lb (With Packing) |
| Lens mount |
6mm board lens |
|
Storage |
Hard disk drive for 500 GB |
