Microseven MSH-CX550WS Wireless Network Camera Wi-Fi & Ethernet / MSH-CX550WS

• H.264 video D-1 resolution is 720 x 486 for NTSC systems and 720 x 576 for PAL systems
• 550 TVL color / 600 TVL black and white high quality image by 1/3 Sony CCD
• Maximum frame rate is 30 fps for NTSC and 25 fps for PAL
• Network bit stream rate is 100Kbps - 3Mbps
• Microseven software lifetime updates
• Provide www.microseven.com for customers online monitoring camera live around the world
• LIVE still images are available when Microseven network cameras are online over the internet. This feature is working for all the browsers and different operating systems without installation of any software. The internet web browsers are included in IE, Firefox, Safari, Netscape, Google web browser and mobile phone device such as iphone, blackberry, google phones and home automation device such as HAI. And operating systems may be included Microsoft Windows, MAC OS X and Linux, Solaris and etc.
• Camera built-in web server enables video LIVE anywhere over the internet;
• SD card drive is for (SDHC) SD card and maximum recording video streaming data up to 100 hours with 8 GB.
• Wi-Fi 802.11 G with WEP and WPA encryptions
• Provide Internet connection both Ethernet RJ45 and Wireless 802.11 G
• Motion detection alerts with 12x16 detecting areas & 9 level sensitivities, once motion alerts triggered, captured images will be sent to FTP or Email address, support Google Gmail and at same moment motion alerts will trigger camera to record video data on data storage media
• TCP/IP and RTSP protocol;
• Dual-streams available to set recording video data ratio and remote video transmit ratio on demand.
• Three video output such as AV output for analog and two network digital output accessed by Ethernet and wireless
• Two ways audio

Overview

MSH-CX550WS series Network cameras adopts SONY CCD, with bright and exquisite images. As video & audio multi-media equipment that based on network transmission, which adopts built-in and multi-media communication technology, the camera is a multi-media network terminal that can directly connect to the network.

The camera adopts all-built-in technology, which can be connected to the TCP/IP network without any other equipment and realize the video & audio collection, code compression and transmission function. Outstanding H.264 compression code arithmetic guarantees the minimum occupation of bandwidth, and built-in Web Server enables users to visit the IP camera through IE or special surveillance management software.

Furthermore, the camera adopts big body design and built-in fans, which not only makes it have good appearance, but also guarantees the reliable running of the camera.

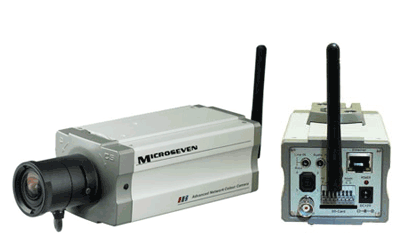

Components

1. Back Focal Adjusting Ring

   With C and CS installation modes, and can choose C and CS installation just by circumvolving the adjusting ring.

2. DC Level

   When use DC to drive lens, it’s the dip-switch to adjust value of video output signal.

3. Power

   Power Indicator

4. Power Supply Connector

   DC 12V power supply connector (please connect according to the marked polarity)

5. Auto Iris Lens Connector

   Connect the lens cable to it when VIDEO driver or DC driver lens is provided.

6. Switches

   ACL/ELC, BLC ON/OFF, ATW/AWC

7. Antenna Output

   Wireless function module, Outside antenna ACG 2dB.

8. Video Output and RS485 Interface

   1 channel analog video output, 1 channel RS485 output.

9. Alarm and Audio Connector

   Alarm: None-source alarm input and output.
   Audio Input: 1 channel / microphone input.

10. Network Interface

    RJ-45 standard interface

Appearance

Alarm and Audio Connector

1. Connector Definition

   The connection figuration of alarm and audio


2. Alarm Instruction

   When there is alarm signal, the switch S closes and alarm output terminal takes action, and indicator is ON; on contrary, the indicator is OFF when there isn't alarm signal.


3. Video Output and RS485 Interface


Setup and Adjustment

1. Lightness Control Selection

   ELC: changeable shutter speed between 1/50s and 1/10000s
   ALC: This item is chosen when video drive or DC drive lens is applied.

2. DC driver lens level adjustment


   When the DC driver auto iris lens is applied, rotate DC button and adjust it to the appropriate place to get the images with proper lightness.

3. Installation of Auto Iris Lens Connector

   Install the lens connector (YEE4191J100) when an auto iris lens is used.

   The following installation should be undertaken by qualified service personnel or system installers.

   1. Cut the iris control cable at the end of the lens connector to remove the existing lens connector, and then remove the outer cable cover.

      The pin assignment of the lens connector is as follows:


   2. After connection, assemble the lens connector as follows:


      When the iris adjustment cable is too tight to lock the connector cover with the connector base, cut off the rib on the connector.

4. Lens installation


   Before you install the lens, loosen the screws on the back focal adjusting ring, and rotate this ring rightwards until it can not move any more (at the side of C install mount) to avoid any damage to the inner glass or CCD image sensor.

   1. Loosen the screws on the back focal adjusting ring: for install it on lens fixing frame of camera.
   2. When using auto iris lens, Connect lens cables to auto iris lens Connector on the camera. Turn the back focal adjusting ring to the desired position.



5. Adjusting of focus or back focus

   Following adjusting work should be done by qualified maintainer or system installer.

   1. loosen the screws on the back focal adjusting ring

   2. Turn the back focal adjusting ring to the desired position.

      Caution: When the C-mount lens is mounted, do not rotate the ring anticlockwise till the limit by heavy force. Otherwise the inner glass or CCD image sensor may be damaged.

   3. Tighten the screws on the back focal adjusting ring.

Notes

1. Do not attempt to disassemble the camera yourself.

   To prevent electric shock, do not remove screws or covers. No part inside should be repaired by inexperienced users. Ask a qualified service person for servicing.

2. Handle the camera with care.

   Avoid striking or shaking. The camera could be damaged by improper handling or storage.

3. Do not expose the camera to rain or moisture.

   If rain or moisture, turn the power off immediately and ask a qualified service person for servicing. Moisture can damage the camera and also create the danger of electric shock.

4. Do not use strong or abrasive detergents when cleaning the camera body. Use a dry soft cloth to clean the camera when dirty. In case the dirt is hard to remove, use a mild detergent and wipe gently.
5. Pay great attention to the CCD faceplate cleaning

   Do not clean the CCD with strong or abrasive detergents. Use lens tissue or a cotton tipped applicator and ethanol.

6. Never face the camera towards the sun.

   Do not aim the camera at bright objects. Whether the camera is in use or not, never aim it at the sun or other very bright objects. Otherwise, blooming or smear maybe caused.

7. Do not operate the camera beyond the specified temperature, humidity or power source.

   Use the camera under conditions where temperature is between -10°C - + 50°C and humidity is below 90%

8. The power supply for M7-CX550WS is DC12V.

   The adapter with electric current of over 2A is recommended.

9. The pictures in the manual are for reference.

Mounting from the bottom

This camera is designed to be mounted from the bottom as shown below. The mounting hole is standard photographic pan-head screw size.

Mounting from the top

Remove the mount adapter from the bottom of the camera by removing the two fixing screws. Attach the mount adapter to the top as shown in the diagram, and then mount the camera on the mounting bracket.

Make sure that the two original fixing screws are used in mounting the mount adapter as longer length screws may damage inner components.
