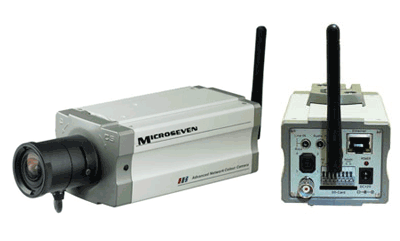

| Model |
MSH-CX550WS |
| Pick-up Device |
1/3" SONY Super HAD CCD |
| Scanning Area |
4.89 mm (H) x 3.67 mm (V) |
| Pixels |
795 (H) x 597 (V) |
| Horizontal Resolution |
550 TVL |
| Minimum Illumination |
F1.2, 0.1 Lux |
| Scanning |
625 Lines / 50 Fields / 25 Frames |
| Horizontal |
15.626 KHz |
| Vertical |
50 Hz |
| Image / Audio Compression Standard |
H.264 / G.711 |
| Resolution |
CIF: 352 x 288, QCIF: 176 x 144, D1: 720 x 576, H-D1: 720 x 288 |
| Frame Rate |
25 fps (PAL) 30 fps (NTSC) |
| Stream |
100 Kbps - 3 Mbps, CBR/VBR adjustable |
| Character Superimpose |
Support character and time superimpose |
| Motion Detecting |
12 x 16 detecting areas and 8 levels adjustable sensitivity |
| Network Interface |
1 RJ-45, 10M/100M self-adaptable |
| Network Protocol |
TCP/IP, UDP/IP, HTTP, ICMP, Telnet, WIFI, FTP, DDNS, DNS, PPPOE, DHCP |
| IE Application |
Built-in web server, allows IE browsing and image controlling |
| Network Time Check |
Provide the interface for network clock check |
| Equipment Search |
Support equipment searching by Ethernet broadcasting |
| User Administration |
Provide multi-level user administration |
| Built-in Watchdog |
Timing detection of chips & software work status, auto system reset |
| Remote reposition |
Realize remote reposition through network |
| Audio Input |
1 channel, RCA interface, single track |
| Audio Sampling Rate |
8 KHz |
| Wireless Function |
IEEE 802.11 b/g wireless module |
| Compressed Code Rate |
32 Kbps |
| Working Temperature |
- 10°C - +50°C, ≤95% |
| Power Source |
DC 12V, 2A |
| Dimensions (lens not included) / Weight |
2.8 in (W) X 2.6 in (H) X 7.2 in (D) / 1.21 lb. |
|
Storage |
SD card drive for 4 GB |
