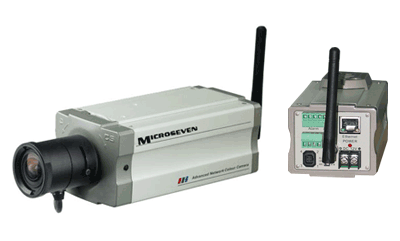

MICROSEVEN CX080W Network Camera Wi-Fi & Ethernet / MSH-CX080W


Accessories


$ 9.99
Power Supply 12V DC 2A (for IP Wireless Network Camera) / MSP12VDC2A

$ 9.99
Brand New Mount Bracket for CCTV CAMERAS With Swivel / MS-BRKT001

$ 29.99 $ 25.99
Auto iris Varifocal lens 3.5-8.0 aperture 1.4-360 lens / MS-LVF3080


Free shipping this week only!

1/3 SONY CCD 480 TV LINES
Wi-Fi 802.11 G WPA AND WEP ENCRYTION
H.264 LIVE VIDEO UP TO 30 FRAME PER SECOND
LIVE STILL IMAGES AVALIABLE FOR IE, FIREFOX, SAFARI, MOBILE PHONE
MOTION DETECT SUPPORT GMAIL
READY FOR HOME AUTOMATION DEVICES (HAI)
AUDIO AVAILABLE
CAMERA READY TO CONNECT INTO EXISTED NETWORK (LAN) WORK AND HOME

  • H.264 video, D-1 720 X 486 in NTSC systems / 720 X 576 in PAL systems;
  • With max frame rate: 30fps (NTSC) and 25fps (PAL), bit stream: 100Kbps-3Mbps;
  • Microseven software included for multiple users license;
  • Provide Microseven software SDK;
  • Provide microsevencam.com for customers register cameras on the platform to monitor camera live;
  • LIVE Still images are available when Microseven network cameras are online over the internet. This feature is working for all the browsers and different operating systems without installation of any software. The internet web browsers are included in IE, Firefox, Safari, Netscape, Google web browser and other mobile phone device and home automation device such as HAI. And operating systems may be included Microsoft Windows, MAC OS X and Linux, Solaris and etc.;
  • Provide one RS485 interface;
  • Camera built-in web server provides video LIVE anywhere over the internet;
  • Wi-Fi 802.11 G with WEP and WPA encryptions;
  • Provide on RJ45 network LAN/WLAN;
  • Motion detection alarm with 12x16 detecting areas & 9 level sensitivities, once motion triggered, captured images will be sent to FTP or Email address, support Google Gmail and at same time motion will trigger camera to record video data;
  • TCP/IP protocol;
  • Dual-streams available to set recording video data ratio and remote video transmit ratio on demand;
  • Dual-channel AV output for analog and network digital signals;
  • Audio (input and output) available.
  • Auto iris vari-focal lens 3.0-8.0 aperture 1.4-360, angle of view 94.3 - 360 lens sold separately
  • Come with 6mm fixed lens
  • Web and client software
  • Power supply 12V DC 2A sold separately

  • Please see all the feedback on Ebay!!! Our ebay id is  microsevencam!!!

Product Catalog
Product Operation Manual
Model MSH-CX080W
Pick-up Device 1/3" SONY Super HAD CCD
Scanning Area 4.89 mm (H) x 3.67 mm (V)
Pixels 795 (H) x 597 (V)
Horizontal Resolution 480 TVL up to 520 TVL
Minimum Illumination F1.2, 0.1 Lux
Scanning 625 Lines / 50 Fields / 25 Frames
Horizontal 15.626 KHz
Vertical 50 Hz
Image / Audio Compression Standard H.264 / G.711
Resolution CIF: 352 x 288, QCIF: 176 x 144, D1: 720 x 576, H-D1: 720 x 288
Frame Rate 25 fps (PAL) 30 fps (NTSC)
Stream 100 Kbps - 3 Mbps, CBR/VBR adjustable
Character Superimpose Support character and time superimpose
Motion Detecting 12 x 16 detecting areas and 8 levels adjustable sensitivity
Network Interface 1 RJ-45, 10M/100M self-adaptable
Network Protocol TCP/IP, UDP/IP, HTTP, ICMP, Telnet, WIFI, FTP, DDNS, DNS, PPPOE, DHCP
IE Application Built-in web server, allows IE browsing and image controlling
Network Time Check Provide the interface for network clock check
Equipment Search Support equipment searching by Ethernet broadcasting
User Administration Provide multi-level user administration
Built-in Watchdog Timing detection of chips & software work status, auto system reset
Remote reposition Realize remote reposition through network
Audio Input 1 channel, RCA interface, single track
Audio Sampling Rate 8 KHz
Wireless Function IEEE 802.11 b/g wireless module
Compressed Code Rate 32 Kbps
Working Temperature - 10°C - +50°C, ≤95%
Power Source DC 12V, 2A
Dimensions (lens not included) / Weight 2.8 in (W) X 2.6 in (H) X 7.2 in (D) / 1.21 lb.

$199.99 $259.99
You Save: $60.00 (23.08%)

Item# MSH-CX080W
UPC 018406600045
Size 2.8 in x 2.6 in x 7.2 in
Weight 1.21 lb.
Color Beige
In Stock Sold Out
