Microseven High Speed Dome Bracket on Wall / M7-ZJ89B

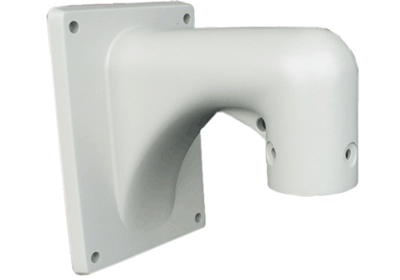

Heavy duty high speed dome bracket.

Wall bracket is the installation bracket used for the wall installation of outdoor dome.

Names of various wall bracket components are as follows:

1) bracket mounting
2) safety button hole
3) dome mounting hole
4) output slot

Fitting and tools that should be prepared by clients

1. M8.0X100 expansion bolt - M8.0, L=100. Quantities are 4
2. Special spanner (attached as dome accessory) S13. Quantity is 1. Be matched with expansion bolt.

Installation of wall bracket
1. Select an outdoor wall space that is hard enough, and drill a hole of 4X 10.5 mm (be matched with the actual expansion bolt) with deepness of 50 mm as the following figure shows.

2. Get the nuts of the four M8 expansion bolts out from the bolts, dig into the hole that is drilled in the last step and fix it.

3. Level the roof bracket-2 and bolt and install [Fig. 3-3], and fix it with nuts from expansion bolts [Fig. 3-4].

Installation of the complete machine of high speed dome is as follows:
Please refer to the installation for detailed install information.

$49.99
