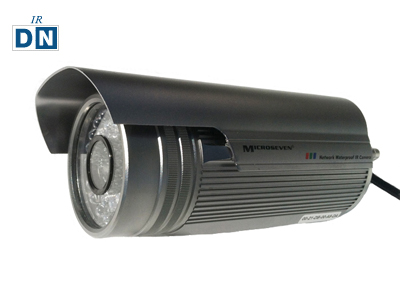

M7-RC650WS is a professional wireless network security camera. There are 1/3" Sony Super HAD CCD 650 TVL, Wi-Fi 802.11g and Ethernet RJ45, H.264 video, 720X480 resolutions, maximum 30 fps, IP66 rated housing, and 24 infrared lights which support up to 150 feet in darkness. It is perfect for outdoor surveillance and remote monitoring. A built-in SD card driver is on the motherboard. Its size is about 8GB to 16GB.

Video motion detection is provided by two kinds of detection, software H.264 video detection and hardware I/O for alarm/event detection. There is two-way audio. We have software M7CMS for Windows 2000/XP/2003/2008/Windows 7 and Mac 10.6 or greater. Software can be downloaded from microseven.com or Apple app store.

Time-lapse photography is built in M7CMS software. Microseven provides M7-TIMELAPSE software to editing your time-lapse photo to 30 fps motion pictures. M7-TIMELAPSE is free to use.

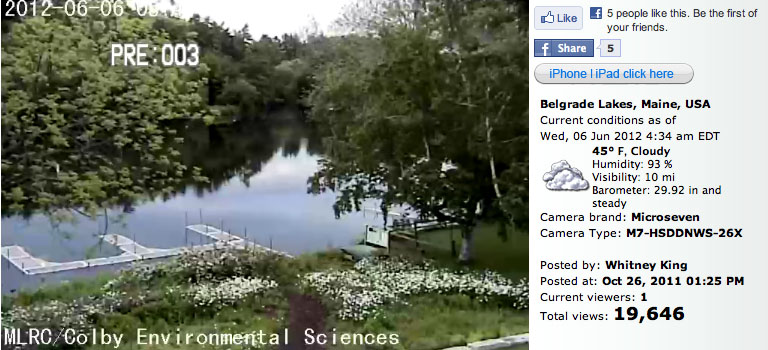

LIVE still images are available when Microseven network cameras are online over the Internet. This feature is working for all the browsers and different operating systems without installation of any software.

LIVE Streaming, known as H.264 video on the Internet, provides Microseven camera video hosted by your own. You can host your H.264 video on your website at free of cost. Benefit is you can provide your video H.264 streaming more than thousand Internet users per day. You will get web analytics data from Microseven.tv. It is cost free as well. For instruction of how-to, you can go to microeven.tv.

After motion alerts triggered, captured images will be sent to FTP or Email. At same moment motion alerts will trigger camera to record video data on data storage media such as your hard disk or SD card.

Model

Spec

Power

Physical

Dimensions & Weight

Packaging

Manufacturer Warranty

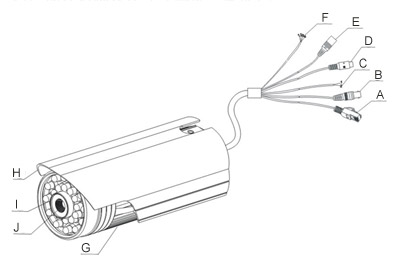

Components

1. RJ45 Ethernet connector
2. Power connector
3. RS485 port
4. Audio input/output
5. Video output
6. I/O alerts port
7. Network camera body
8. Body covering
9. IR Leds
10. Lens

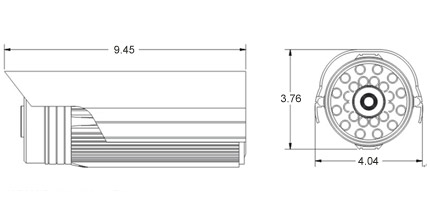

Appearance

Connections

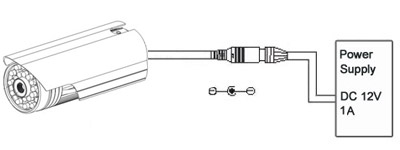

A. Power supply connection

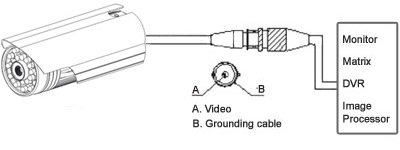

B. Video output connection

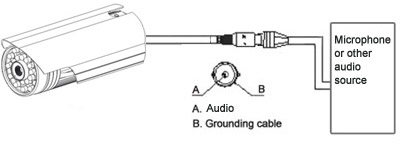

C. Audio input connection

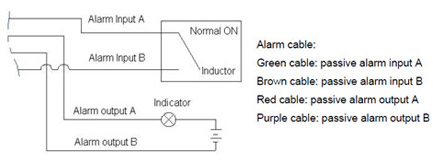

D. Alarm connection

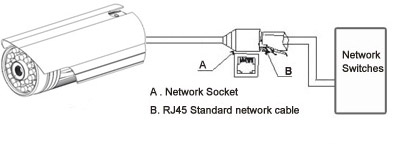

E. Ethernet network RJ45 port connection

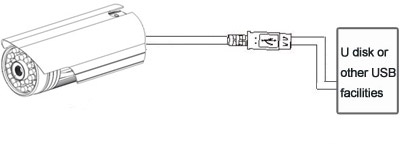

F. RS485 communication port connection

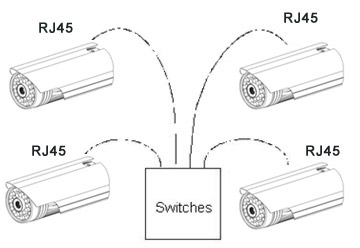

G. Connection mode of Ethernet network RJ45

Notes

1. Do not attempt to disassemble the camera yourself.
   To prevent electric shock, do not remove screws or covers. No part inside can be repaired by you. Ask a qualified personal for service.
2. Handle the camera with care.
   Avoid striking or shaking. The camera could be damaged by improper handling or storage.
3. Wireless antenna connection is waterproof.
4. Do not use strong or abrasive detergents when you clean camera body. Use a dry soft cloth to clean camera when it is dirty. In case dirt cannot be removed, use a mild detergent and wipe gently with soften cloth.
5. Never face the camera towards the sun.
   Do not aim the camera at bright objects. Whether camera is in use or not, never aim it directly at the sun or other very bright objects. Otherwise, blooming or smear will be caused.
6. Do not operate camera beyond specified temperature, humidity or power source. Use camera under conditions where temperature is between 14F - 122F and humidity is below 90%.
7. Power supply of M7-RC650WS is DC12V.
   Power supply with electric current over 2A is recommended.

Before installation

1. Check package and if any accessories are missing.
2. Select proper installing spot with enough bearing, such as surface of wall and metal bracket.

Outdoor wall installation

Installation steps

1. Preparation

   Select wall or hang installing brackets.

1. Selection of installation surface

   Note: Please consult with expert about weight bearing capacity of installation surface and structure. If the bearing capacity is not enough, camera may be drop off and be damaged. Please refer to camera weight in specification sheet.

2. Prepare and get hardware ready to install such as screws, bolt, nut and etc


2. Install bracket

   Install bracket on installing surface using screws or bolts with nuts. These come with product.
3. Install camera

   Bracket above camera     The following figure shows, camera can be installed from bottom. Size of install hole should be fit for standard camera bolt size.



   Bracket under camera     Loose two fixing bolts, remove the installing base from top of camera and install it under the camera, then install camera on bracket.



   Note: Install camera base on camera using original two bolts, bolt with too large length may damage internal parts.






• 'a' is 3-inch plastic hose. During your installation, one 3-inch plastic hose needs to be used outside the connection cables.
• 'b' cannot be exposed during installation so that camera would not be damaged by the rain.
