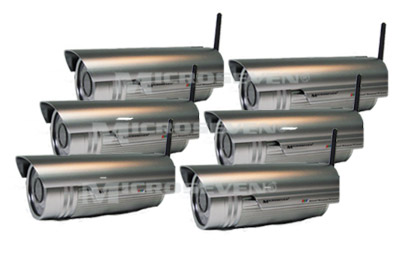

6 PCS M7 outdoor IR 550/600 TVL wireless network camera / M7-RC550WS-X6

FEARTURES:

• Dual core CPU processor for H.264
• H.264 video D-1 resolution is 720 x 486 for NTSC systems and 720 x 576 for PAL systems
• 550 TVL color / 600 TVL black and white high quality image by 1/3 Sony CCD
• Infrared leds distance is 150 ft
• Maximum frame rate is 30 fps for NTSC and 25 fps for PAL
• Outdoor weather proof
• Network bit stream rate is 100Kbps - 3Mbps
• Microseven software lifetime updates
• Provide www.microseven.com for customers online monitoring camera live around the world
• LIVE Still images are available when Microseven network cameras are online over the internet. This feature is working for all the browsers and different operating systems without installation of any software. The internet web browsers are included in IE, Firefox, Safari, Netscape, Google web browser and other mobile phone device and home automation device such as HAI. And operating systems may be included Microsoft Windows, MAC OS X and Linux, Solaris and etc.
• LIVE Streaming - flash format works for ALL browsers (IE, Firefox, Safari, Netscape, Chrome) on the Internet without installing any software. Hosted by Microseven.com. It can be embedded on your application and your website.
• Camera built-in web server enables video LIVE anywhere over the internet;
• SD card driver is for (SDHC) SD card and maximum recording video streaming data up to 100 hours
• Wi-Fi 802.11 G with WEP and WPA encryptions
• Provide Internet connection both Ethernet RJ45 and Wireless 802.11 G
• Motion detection alerts with 12x16 detecting areas & 9 level sensitivities, once motion alerts triggered, captured images will be sent to FTP or Email address, support Google Gmail and at same moment motion alerts will trigger camera to record video data on data storage media
• TCP/IP and RTSP protocol;
• Dual-streams available to set recording video data ratio and remote video transmit ratio on demand.
• Three video output  such as AV output for analog and two network digital output accessed by Ethernet and wireless
• Support multiple monitors on one PC for full screen.

Overview

M7-RC550WS Wireless Network Camera adopts SONY CCD, with bright and exquisite images. As video & audio multi-media equipment that based on network transmission, which adopts built-in and multi-media communication technology, the camera is a multi-media network terminal that can directly connect to the network.

The camera adopts all-built-in technology, which can be connected to the TCP/IP network without any other equipment and realize the video & audio collection, code compression and transmission function. Outstanding H.264 compression code arithmetic guarantees the minimum occupation of bandwidth, and built-in Web Server enables users to visit the IP camera through IE or special surveillance management software.

Furthermore, the camera adopts big body design and built-in fans, which not only makes it have good appearance, but also guarantees the reliable running of the camera.

Components

1. Network connector
2. Video output terminal
3. Alarm input/output cable
4. Audio input terminal(black)
5. Power supply terminal
6. RS485 port
7. Optional
8. Optional
9. Shell
10. Shield
11. LED panel
12. Lens

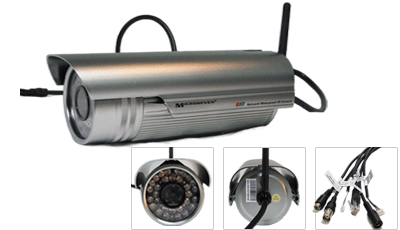

Appearance

Connections

A. Power Supply Connection

B. Video Output Connection

C. Audio Input Connection

D. Alarm Connection

E. Network Port Connection

F. RS485 Communication Port Connection

G. Connection Mode of RJ45

Notes

1. Do not attempt to disassemble the camera yourself.
   To prevent electric shock, do not remove screws or covers. No part inside can be repaired by users. Ask a qualified service person for serving.
2. Handle the camera with care.
   Avoid striking or shaking. The camera could be damaged by improper handling or storage.
3. Wireless model does not support waterproof.
4. Do not use strong or abrasive detergents when cleaning the camera body. Use a dry soft cloth to clean the camera when dirty. In case the dirt is hard to remove, use a mild detergent and wipe gently.
5. Never face the camera towards the sun.
   Do not aim the camera at bright objects. Whether the camera is in use or not, never aim it at the sun or other very bright objects. Otherwise, blooming or smear maybe caused.
6. Do not operate the camera beyond the specified temperature, humidity or power source. Use the camera under conditions where temperature is between -10° - + 50° and humidity is below 90%.
7. The power supply for M7-RC550WS-P is DC12V.
   The adapter with electric current of over 2A is recommended.

Before Installation

1. Check product packing and if any accessories missing.
2. Select proper installing position with enough bearing, such as surface of concrete wall or metal bracket.

Outdoor Wall Installation

Installation Steps

1. Preparation

   Select wall or hang installing brackets.

   1. Selection of installation surface

      Note: Please consult with expert about weight bearing capacity of installation surface and structure. If the bearing capacity is not enough, the camera may drop and damage. Please refer to weight of camera in specification sheet.

   2. Prepare hardware which will be used on installing surface, e.g. nut or fixing bolt, etc.
2. Install bracket

   Install bracket on installing surface by using bolts, which come with product.


3. Install Camera

   Bracket above camera     As the following figure shows, the camera can be installed from the bottom. Size of install hole should be fit for standard camera bolt size.


   Bracket under camera     Loosen the two fixing bolts, remove the installing adapter from top of camera and install it under the camera, then install camera on bracket.


   Note: Install adapter by using the original two bolts, bolt with too large length may damage internal parts.


   • 'a' is 3-inch plastic hose. During installation one 3-inch plastic hose need to be used outside the connection cables.
   • 'b' cannot be exposed during installation so that the camera would not be damaged by the rain.
