| Model |

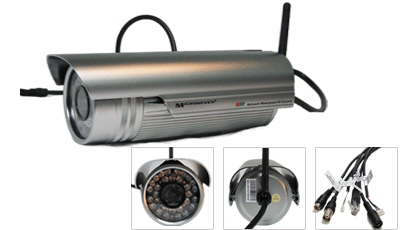

M7-RC550WS |
| Pick-up Device |
SONY Super HAD 1/3 CCD |
| Pixels |
795 (H) x 597 (V) |
| Horizontal Resolution |
550TVL Color and 600 TVL Black and White |
| System Type |
NTSC or PAL |
| Frame Rate |
30 fps (Adjustable) |
|
|
| Analog Video Output |
1.0V [p-p] / 75Ω, PAL/NTSC Composite Video Signal, BNC connector |
| S/N Ratio |
≥ 50dB |
| Motion Detection Alerts |
Motion detection alerts with 12x16 detecting areas & 9 level sensitivities, once motion alerts triggered, captured images will be sent to FTP or Email address, support Google Gmail and at same moment motion alerts will trigger camera to record video data on data storage media |
| I/O Alerts |
input and output alerts |
| Lens |
6mm |
| F Coefficient |
F1.2 color 0.1 Lux / black and white 0 Lux |
| IR night vision distance |
165 ft |
| LED |
IR wave length 850mm, Φ5 x 24 pcs |
| Video/Audio Compression Standard |
H.264 / G.711 |
| Resolution |
QCIF: 176x120, CIF: 352 x 240, H-D1: 352 x 480, D1: 704 x 480 |
| Bit Stream Rate |
8 Kbps - 3 Mbps, CBR/VBR adjustable |
| Character Overlay |
Support character and time overlay |
| Network Interface |
1 RJ-45, 10M/100M self-adjustable |
| Network Protocol |
TCP/IP and RTSP |
| IE Application |
Built-in web server |
| Network Time Check |
Provide the interface for network clock checking |
| Equipment Search |
Support equipment searching by Ethernet broadcasting |
| User Administration |
Provide multi-level user administration |
| Built-in Watchdog |
Timing detection of chips & software work status, auto system reset |
| Remote reposition |
Realize remote reposition through network |
| Audio Input |
1 channel, RCA interface, single track |
| Audio Sampling Rate |
8 KHz |
| Wireless Function |
IEEE 802.11 G wireless module |
| Temperature/Humidity |
- 10° C - +50° C, ≤ 90% |
| Waterproof Grade |
IP66 |
| Color |
Silver / Black |
| Power Supply |
DC 12V, 2A |
| Dimension / Weight (With lens) |
9.45 in X 4.03 in X 3.80 in / 3.10 lb |
| Storage |
SD card drive for 8GB |
