Microseven M7-HSDDNWS-26X-N Hight Speed Dome Wireless Network Camera /Dual Core (NTSC System) Wi-Fi & Ethernet / M7-HSDDNWS-26X-N

• SONY EXView 18X Zoom PTZ Engine  and SONY Sensor
• Dual core CPU processor for H.264
• H.264 video D-1 resolution is 720 x 486 for NTSC systems and 720 x 576 for PAL systems
• 480 TVL color / 570 TVL black and white high quality image
• Maximum frame rate is 30 fps for NTSC and 25 fps for PAL
• Outdoor weather proof
• Network bit stream rate is 8 Kbps - 3 Mbps
• Microseven software lifetime updates
• Provide www.microseven.com for customers online monitoring camera live around the world
• LIVE still images are available when Microseven network cameras are online over the internet. This feature is working for all the browsers and different operating systems without installation of any software. The internet web browsers are included in IE, Firefox, Safari, Netscape, Google web browser and other mobile phone device and home automation device such as HAI. And operating systems may be included Microsoft Windows, MAC OS X and Linux, Solaris and etc.
• Camera built-in web server enables video LIVE anywhere over the internet;
• SD card driver is for (SDHC) SD card and maximum recording video streaming data up to 100 hours with 8 GB.
• Wi-Fi 802.11 G with WEP and WPA encryptions
• Provide Internet connection both Ethernet RJ45 and Wireless 802.11 G
• Motion detection alerts with 12x16 detecting areas & 9 level sensitivities, once motion alerts triggered, captured images will be sent to FTP or Email address, support Google Gmail and at same moment motion alerts will trigger camera to record video data on data storage media
• TCP/IP and RTSP protocol;
• Dual-streams available to set recording video data ratio and remote video transmit ratio on demand.
• Digital control on OSD menu
• The dome built-in a blower/heater for very cold weather
• Support multiple monitors on one PC for full screen.

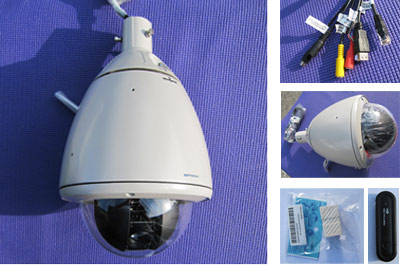

Come with power supply, wall or ceiling mount bracket, wireless USB adapter and all tools for installation!

OSD Management in Microseven Software


OSD Mangement in Web User Interface

Need 1-2 weeks to ship!

Overview

M7-HSDDNWS-26X high speed dome network cameras adopt SONY / Hitachi zoom module, with bright and exquisite images. As video & audio multi-media equipment that based on network transmission, which adopts built-in and multi-media communication technology, the camera is a multi-media network terminal that can directly connect to the network.

The camera adopts all-built-in technology, which can be connected to the TCP/IP network without any other equipment and realize the video & audio collection, code compression and transmission function. Outstanding H.264 compression code arithmetic guarantees the minimum occupation of bandwidth, and built-in Web Server enables users to visit the IP camera through IE or special surveillance management software.

Furthermore, the camera adopts built-in fans and heater, which guarantees the weather-proof running of the equipment.

Components

Appearance

Connections

1. Connection Interfaces

2. Audio Connection

3. Power Connection

4. PIN Connection Interface

5. RJ45 Connections

6. Alarm Connections


Note

1. Do not attempt to disassemble the camera yourself.

   To prevent electric shock, do not remove screws or covers. No part inside can be repaired by users. Ask a qualified service person for serving.

2. Handle the camera with care.

   Avoid striking or shaking. The camera could be damaged by improper handling or storage.

3. Do not expose the camera to rain or moisture.

   If rain or moisture, turn the power off immediately and ask a qualified service person for servicing. Moisture can damage the camera and also create the danger of electric shock.

4. Do not use strong or abrasive detergents when cleaning the camera body. Use a dry soft cloth to clean the camera when dirty. In case the dirt is hard to remove, use a mild detergent and wipe gently.
5. Pay great attention to the CCD faceplate cleaning

   Do not clean the CCD with strong or abrasive detergents. Use lens tissue or a cotton tipped applicator and ethanol.

6. Never face the camera towards the sun.

   Do not aim the camera at bright objects. Whether the camera is in use or not, never aim it at the sun or other very bright objects. Otherwise, blooming or smear maybe caused.

7. Do not operate the camera beyond the specified temperature, humidity or power source.

Microseven PTZ High Speed Dome Network Camera Wi-Fi SD Card Drive

Before Installation

The following installation should be undertaken by qualified service personnel or system installers.
Ensure that you have cut off the power during the installation process.

The following installation method is outdoor hoisting and wall hoisting.

Ask an expert about the bearing capability and structure of the installation surface, if the surface is not solid enough, the camera may drop down. To get the weight of camera please refer to the product specification.

Preparation

1. Purchasing ceiling mount bracket.
2. Choose the installation place(Note: Please choose an installation place which is strong enough to bear the camera weights.)
3. Prepare installation accessories.

Disassembly the camera

1. Removing upper base from camera by loosening 3 screws, separate it from the camera.

2. Loosing 3 screws to separate the accessory pipe.


Install Bracket

1. Fix the bracket on the installation surface by screws.

2. Thread cables through the bracket.

3. Use 3 screws to fix upper base to accessory pipe, filling the gap between bracket and accessory pipe with water-proof materials.


Install camera

1. Aiming “START” arrow to the bent portion of the spring.

2. Ensure that the secure chain hooks the bracket.

3. Fix the camera to the upper base.
   1. Move up the camera; let the guide pins fit into upper base guide holes.
   2. Turn the camera counter-clockwise to the end. (Please make sure the camera had been turned to the lock position before release your hand.)

   3. Fasten 3 screws.


Remove protection pads

Please make sure that you have set up the camera already before proceed following operations.

1. Remove 4 screws on the lower ring.

2. Remove protection pad and lens shield.

3. Install transparent hemisphere shield to the camera, fasten the screws to ensure water-proof.
