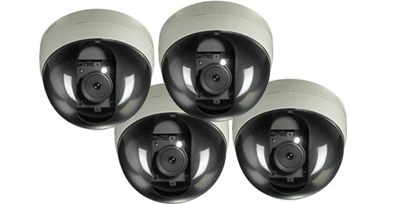

4 PCS M7 indoor dome 550/600 TVL wireless network camera / M7-CD550WS-4

• Dual core CPU processor for H.264
• H.264 video D-1 resolution is 720 x 486 for NTSC systems and 720 x 576 for PAL systems
• 550 TVL color / 600 TVL black and white high quality image by 1/3 Sony CCD
• Maximum frame rate is 30 fps for NTSC and 25 fps for PAL
• Network bit stream rate is 100Kbps - 3Mbps
• Microseven software lifetime updates
• Provide www.microseven.com for customers online monitoring camera live around the world
• LIVE still images are available when Microseven network cameras are online over the internet. This feature is working for all the browsers and different operating systems without installation of any software. The internet web browsers are included in IE, Firefox, Safari, Netscape, Google web browser and mobile phone device such as iphone, blackberry,google phones and home automation device such as HAI. And operating systems may be included Microsoft Windows, MAC OS X and Linux, Solaris and etc.
• LIVE Streaming - flash format works for ALL browsers (IE, Firefox, Safari, Netscape, Chrome) on the Internet without installing any software. Hosted by Microseven.com. It can be embedded on your application and your website.
• Camera built-in web server enables video LIVE anywhere over the internet;
• SD card drive is for (SDHC) SD card and maximum recording video streaming data up to 100 hours with 8 GB.
• Wi-Fi 802.11 G with WEP and WPA encryptions
• Provide Internet connection both Ethernet RJ45 and Wireless 802.11 G
• Motion detection alerts with 12x16 detecting areas & 9 level sensitivities, once motion alerts triggered, captured images will be sent to FTP or Email address, support Google Gmail and at same moment motion alerts will trigger camera to record video data on data storage media
• TCP/IP and RTSP protocol;
• Dual-streams available to set recording video data ratio and remote video transmit ratio on demand.
• Three video output such as AV output for analog and two network digital output accessed by Ethernet and wireless
• Two ways audio
• Support multiple monitors on one PC for full screen.
• Come with all screws for installation

Overview

M7-CD550WS Wireless Dome Network IP cameras adopts SONY CCD, with bright and exquisite images. As video & audio multi-media equipment that based on network transmission, which adopts built-in and multi-media communication technology, the camera is a multi-media network terminal that can directly connect to the network.

The camera adopts all-built-in technology, which can be connected to the TCP/IP network without any other equipment and realize the video & audio collection, code compression and transmission function. Outstanding H.264 compression code arithmetic guarantees minimum occupation of bandwidth, and the built-in Web Server enables users to visit the IP camera through IE or special surveillance management software.

Furthermore, the camera adopts a large case, making room for built-in fans, which not only makes it have a good appearance, but also guarantees the reliable performance of the camera.

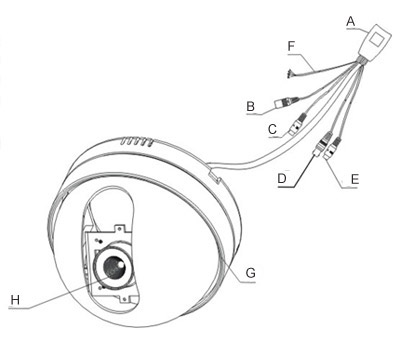

Components

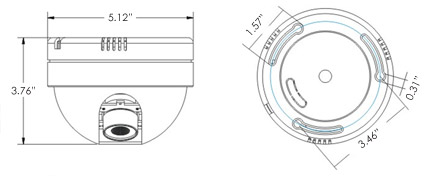

Appearance

Connections

1. Power terminal connection

2. Video output terminal connection

3. Audio input terminal connection

4. Audio output terminal connection

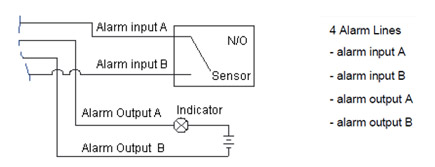

5. Alarm connection

6. Network socket terminal connection

7. USB interface connector

8. RS485 communication interface connector

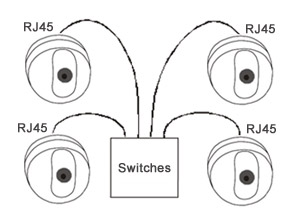

9. RJ-45 connections


Notes

1. Do not attempt to disassemble the camera yourself.

   To prevent electric shock, do not remove screws or covers. No part inside should be repaired by inexperienced users. Ask a qualified service person for servicing.

2. Handle the camera with care.

   Avoid striking or shaking. The camera could be damaged by improper handling or storage.

3. Do not expose the camera to rain or moisture.

   If rain or moisture occurs, turn the power off immediately and ask qualified service personnel for servicing. Moisture can damage the camera and also create the danger of electric shock.

4. Do not use strong or abrasive detergents when cleaning the camera body. Use a dry soft cloth to clean the camera when dirty. In case the dirt is hard to remove, use a mild detergent and wipe gently.
5. Pay great attention to the CCD faceplate cleaning

   Do not clean the CCD with strong or abrasive detergents. Use lens tissue or a cotton tipped applicator and ethanol.

6. Never face the camera towards the sun.

   Do not aim the camera at bright objects. Whether the camera is in use or not, never aim it at the sun or other very bright objects. Otherwise, blooming or smears may be caused.

7. Do not operate the camera beyond the specified temperature, humidity or power source.

   Use the camera under conditions where temperature is between 14°F -- 122°F and humidity is over 95%.

8. The power supply for M7-CD550WS is DC12V.

   The adapter with electric current of over 2A is recommended.

9. The pictures in the manual are for reference.

The following task should be undertaken by qualified service personnel or system installers.

The following installation method is indoor hoisting.

Ask an expert about the bearing capability and structure of the installation surface, if the surface is not solid enough, the camera may drop down. To get the weight of camera please refer to the product specification.

1. Fix the screws

1. Remove the protection PVC from the metal piece, then paste the fixed metal piece onto the installation surface.

2. Aim the screws into the holes of fixed metal piece (do not aim the screws askew)

3. Do not screw entirely, remaining part of the screw outside (>4.5mm, <5.5mm), to ensure the space for installation.


2. Install cameras

Move up the camera, aim the screw remain outside part in to the hole of the camera, twist the camera clockwise to the end.
