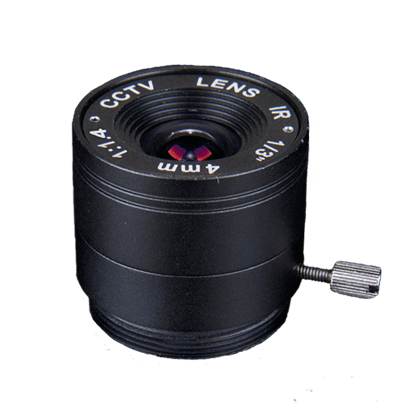

2.0 Megapixel IR 1/3" CS Mount F1.4 Fixed Focal Lens 4mm Fixed Iris / M7-M13RS0414FIRCS-20

• 2.0 Megapixel Lens with IR correction
• 1/3" Vari-Focal Lens
• Focal Length: 4mm
• Aperture Ratio: 1:1.4
• Mount type: CS
• Fixed Iris control
• High Resoution MP Multicoating

Parameters of Lens

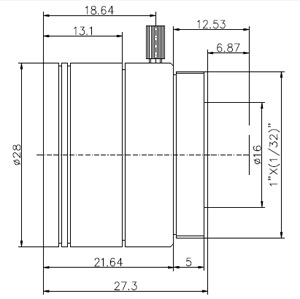

Size
Tolerance	Dimension	X_XX	X_X	X_	Unit
	Tolerance	±0.01	±0.05	±0.10	mm
Operating Parameters	Ambient Temperature		Relative Humidity(35°C)
	-20° ~ +50°C		95% ~ 98%

Adjustment of Fix Position

Fixing between mount and camera must be turned right toward camera to the end tightly.Les must be turned counter-clockwise and you can adjust fix position of lens quite easily.Galvanometric meter must be positioned on left side toward front of camera when you fix lens to the cemare.When you want to take lens off from camera,you must turn lens clockwise.

For 1/3" CS Mount Camera

This lens is being designed for 1/3"CCD camera and mount is CS type. Flange back of Cs-Mount is 12.5mm.
