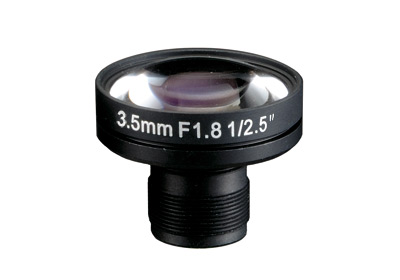

Non Distortion 1/2.5" Board-Mount Lens 3.5mm F1.8 / M7-N125B03518A


  • Megapixel Lens with IR correction
  • 1/2.5" Board Mount Lens
  • Focal Length: 3.5 mm
  • Max. Aperture Ratio: 1:1.8
  • Back Focal Length: 5.9mm
  • Iris: Fixed
Model M7-N125B03518A
Image Size(inch) 1/2.5"
Focal Length (mm) 3.5
Max. Aperture Ratio 1:1.8
Mount M12 x 0.5
Horizontal Angle of View (°) 1/4"
1/3" 68
1/2.5" 84
2/3" -
Back Focal Length(mm) 5.99
Dimensions (Φ x L x W)mm 24 x 21.3
Iris Fixed
Iris Operation -
Weight(lb) 0.03

This is one kind of Mega Pixel Board-Mount Lens with the focal length 3.5 mm. It has 1/2.5" image format and F No. 1.8. and even can reach more than 900 TV Lines, quite good for Network Camera application.

N125B03518

$75.99 $79.99
You Save: $4.00 (5.00%)

Item# M7-N125B03518A
UPC 018406600571
Weight 0.03 lb.
In Stock Yes
