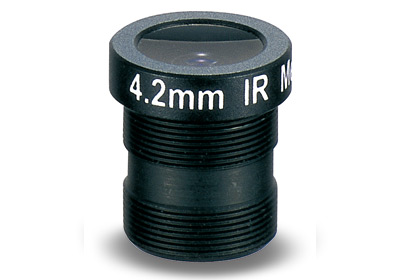

Megapixel IR 1/3" Board-Mount Lens 4.2mm F1.8 / M7-M13B04218A


  • Megapixel Lens with IR correction
  • 1/3" Board-Mount Lens
  • Focal Length: 4.2mm
  • Max. Aperture Ratio: 1:1.8
  • Back Focal Length: 7.21mm
  • Iris: Fixed
Model M7-M13B04218A
Image Size(inch) 1/3"
Focal Length (mm) 4.2
Max. Aperture Ratio 1:1.8
Mount M12 x 0.5
Horizontal Angle of View (°) 1/4" 50
1/3" 71.2
1/2" -
2/3" -
Back Focal Length(mm) 7.21
Dimensions (Φ x L x W)mm 14 x 15.8
Iris Fixed
Iris Operation -
Weight(lb) 0.01

This is one kind of Mega Pixel Board-Mount Lens with the focal length 4.2 mm. It has 1/3" image format and F No. 1.8. and even can reach more than 900 TV Lines, quite good for Network Camera application.

M13B04218

$15.99 $19.99
You Save: $4.00 (20.01%)

Item# M7-M13B04218A
UPC 018406600649
Weight 0.01 lb.
In Stock Yes
